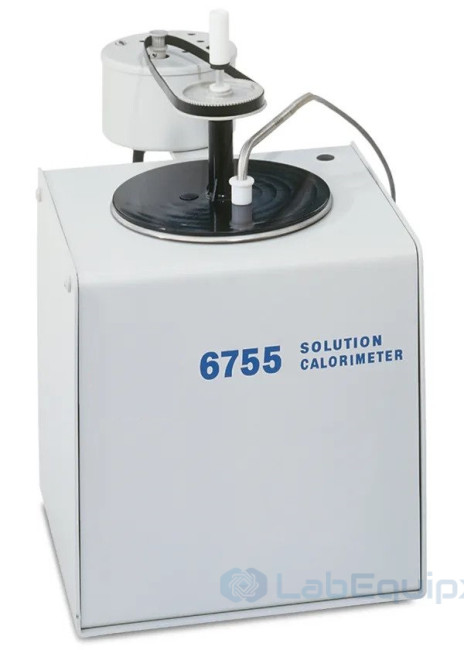

Solution Calorimeter
The LESC-6755 calorimeter measures enthalpy changes from chemical reactions in liquid media. A rotating sample cell works with a precise microprocessor-based thermometer to provide straightforward measurement across several types of thermal effect:
- Heat released or absorbed by reactions.
- Heat effects caused by mixing.
- Heat changes during dissolution.
- Heat effects associated with dilution.
- Heat changes caused by wetting.
Measurements cover energy changes from 2 to 1000 calories in liquid-liquid or liquid-solid systems. Tests run at ambient temperature and atmospheric pressure. A menu-operated touch screen guides the operating steps, and a bright color display presents precise temperature readings.
Output connections support a printer, computer or Ethernet local area network (LAN). The LCD screen plots measurements in real time. This takes the place of the analog output used in the preceding instrument and removes the need for a strip chart recorder.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Operating specifications
- Precision class: 0.4%, for a rise of 1.5 to 5.0 °C at or near room temperature
- Working temperature range: 10 to 50 °C
- Temperature sensitivity of the instrument: 0.0001 °C
- Energy measurement range: 2 to 1000 Calories
- Minimum detectable energy: 0.1 Calorie
- Energy equivalent: 100 -145 Calories/°C
- Maximum solute volume: 20 mL
- Required solvent volume: 90 to 120 mL
- Printer and balance communication through a USB port
- SD Memory card slots support transfer of data files and log files
- Ethernet network communication using TCP/IP
- Dissolution calorimeter dimensions (in): 9w x 13d x 13h
- Calorimetric thermometer dimensions (in): 22w x 14d x 12h
- Dissolution calorimeter dimensions (cm): 22w x 33d x 33h
- Calorimetric thermometer dimensions (cm): 56w x 36d x 31h
Reaction and mixing measurements
The calorimeter studies liquid-liquid and liquid-solid chemical reactions that release or absorb heat within the temperature interval from 10° to 50°C. It measures heat exchange in the reaction vessel while the reactants are brought together and stirred.
Endothermic and exothermic heats of reaction can be determined for a range of chemical systems. Applications include simple acid-base reactions as well as redox, chelation, hydrolysis and other more complex reactions. Weak acids and weak bases that respond poorly to other detection techniques can be assayed using the heat measurement. Thermochemical methods also permit rapid determination of specific ions. One example is sulfur determination by adding barium chloride to precipitate barium sulfate from a liquid containing dissolved sulfate.
When a solid dissolves in a liquid, the resulting heat of dissolution can be measured. Heat of dilution can be determined by adding solvent to a dissolved sample or by combining it with a more dilute mixture. The instrument also measures the heat of mixing when separate liquids are combined. These measurements use the heat released or absorbed as the materials interact in the calorimeter.
A heat-of-wetting measurement provides thermochemical data and can also serve as a rapid indication of the surface area of a powdered solid. When a powder is brought into contact with a wetting agent, the released heat is proportional to the exposed surface area. Measuring that heat therefore provides a means of assessing the powder's surface area.

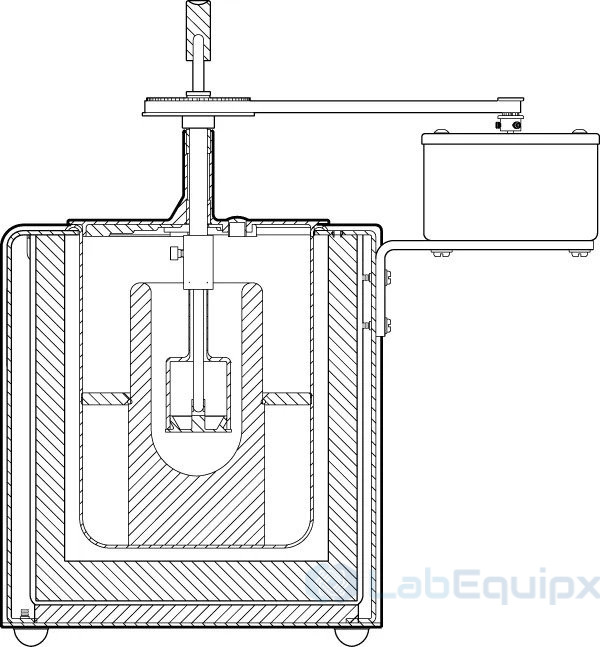

Insulated reaction vessel
Reactions take place inside a fully silvered glass Dewar. Its internal dimensions are 48 mm inside diameter x 103 mm deep. A stainless steel air can supports the Dewar, which can be removed from the can for filling or cleaning. Plastic thermal insulating foam surrounds the air can as a block. The complete insulated assembly is mounted in an aluminum case.
Sample cell and release mechanism
A glass bell with a removable bottom forms the closed sample cell. It holds a liquid or solid sample inside the Dewar and also acts as the calorimeter stirrer. A PTFE dish closes the bottom of the bell with a snug fit; neither a gasket nor a sealing ring is needed at this joint. Solid samples up to 2 grams can be weighed directly into the dish before the dish is fitted to the bell. For liquid samples up to 20 mL, a pipet is passed through the upper stem to fill the already closed cell.
To initiate the reaction, the operator inserts a glass push rod through the top of the calorimeter and along the hollow stirring shaft. The rod enters a socket in the sample dish. Pushing the rod downward displaces the dish from the bell and opens the cell. The dish remains attached to the rod, at a fixed distance above the floor of the reaction vessel. Both the dish and rod then turn with the sample cell. This rotation throws the reactants into the surrounding liquid, and the released dish acts as another impeller in the stirring arrangement.
The cell limits heat transfer to the parts of the instrument that are not wetted. Its thin glass stem has low thermal conductivity, and a plastic coupling connects the cell to the stirring shaft. Loading and cleaning the cell are straightforward. If the glass cell breaks, the dish and the other interchangeable parts can be retained when the cell is replaced. The dish is made from glass-fiber-reinforced PTFE. This material provides dimensional stability and resistance to most chemical agents.
Motor and stirring shaft
An electric motor mounted outside the calorimeter drives the stirrer through a belt. The stirring shaft rotates at a constant speed of approx. 450 rpm. The drive operates without slippage and with very little bearing friction. At the underside of the calorimeter cover, the hollow drive shaft ends at the low-conductivity coupling connected to the sample cell.
Test sequence
At the beginning of a test, the glass Dewar contains one liquid. The second reactant, which can be a solid or a liquid, is kept in the sealed rotating sample cell immersed in that liquid. The assembly reaches equilibrium quickly. A small residual temperature drift remains because of heat generated by stirring and heat passing into or out of the calorimeter.
The operator records the initial temperature drift before releasing the sample. With the sample cell still rotating, depressing the push rod opens its bottom and discharges the contents into the liquid around it. The reaction then continues to completion while the rotating cell provides vigorous stirring. Sample release therefore does not require the stirring operation to stop.
Temperature measurement and other uses
The included calorimetric thermometer measures the temperature inside the Dewar. Its sensor is a thermistor sealed into a stainless steel probe. The thermometry section operates over 10° to 50°C. For calorimetry, the best results are obtained within +/- 5°C of room temperature. This preference follows from the use of a glass Dewar to limit heat leakage rather than an actively controlled thermal enclosure.
The thermometer can also be used separately for general high precision temperature measurements in other applications. These measurements use a thermistor probe enclosed in a stainless steel sheath and cover the same 10° to 50°C interval. The instrument retains its touch screen, real-time plotting, data logging memory and communication functions when its thermometer section is used on its own. Those functions are available for the separate temperature measurement task as well as for operation with the calorimeter. A built-in ignition unit is also included in the precision thermometer. It permits use with combustion calorimetry equipment, including a semimicro calorimeter.
Recording, transfer and printing
A data logging routine collects and stores calorimetric temperature readings together with other key ancillary measurements. The operator sets the sampling rate. Recorded information can be sent to a printer through the USB port or transferred to a computer over Ethernet using standard network protocols. The instrument software can report temperature rise with corrections for both heat leakage and heat generated by stirring. Alternatively, it can supply uncorrected temperature readings for manual evaluation, computer processing or graphical analysis.
An optional thermal printer supports the calorimeter's internal reporting and printing functions. It is a compact unit configured for reports of 40 character/line. The printer has its own case, measuring 6 inches wide, 8 inches deep and 6 inches high. A standard USB printer port and full configuration software are provided for connecting this printer. The same port can be configured for other user-selected printers that communicate through USB. This permits the reporting functions to be used with the chosen compatible printer.
Precision under different test conditions
Measurement precision depends on both the heat released by the reactants and the temperature of the test. The most favorable conditions are reactions releasing between 200 and 600 calories and producing a temperature rise from 1.5° to 5°C at or near room temperature. Repeated measurements under these conditions can give a standard deviation below 0.4% of the determined value.
Different heat releases and operating temperatures can increase the relative standard deviation. If the released heat causes a temperature rise below 0.5° or above 6°C, the relative standard deviation may reach 1.0% of the measured value. It may also reach that level when a test is run at a higher working temperature and heat leakage becomes significant. These conditions should therefore be considered when interpreting precision for a particular reaction.
Replacement components
Available replacement parts Item Component description Sample cell Cell supplied with its coupling; bottom dish excluded Bottom dish Dish for the cell bottom, made of PTFE Push rod Glass rod for releasing the sample Dewar flask Flask supplied without a spacer ring or cover Calibration standard Tris(hydroxymethyl)aminomethane standard, supplied in a 100 g. bottle Printer Printer with USB connection, 115/230 VAC Thermal paper Thermal printing paper for the USB printer Conversion kit Item Conversion description Conversion set Components for converting a dissolution calorimeter into a semimicro calorimeter
