Combination Calorimeter

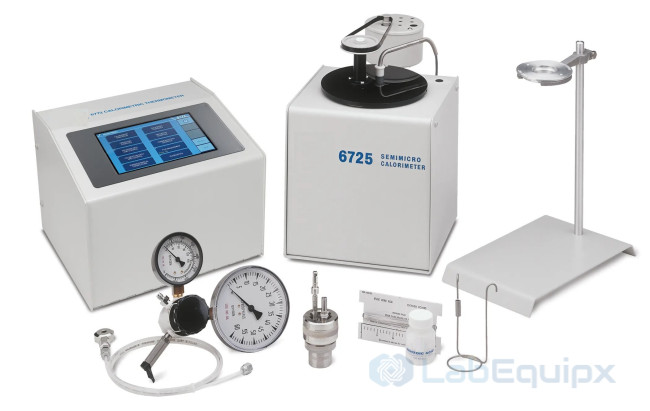

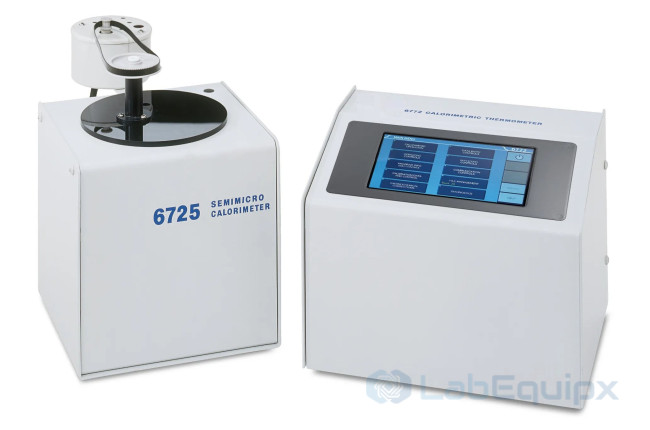

  • The LECC-6765 Combination Calorimeter enables a laboratory to perform both dissolution and semimicro oxygen bomb calorimetry. The package contains a calorimetric thermometer module, a calorimeter module and the parts needed to configure either measurement method. Teaching laboratories can use this arrangement to include both types of calorimetry experiment in their practical sessions.

    Conversion equipment

    Conversion sets are also available separately. A laboratory that already owns either of the principal calorimeters can use the corresponding set to add the other measurement capability to its existing installation.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Combination Calorimeter
    • Combination Calorimeter
  • Semimicro calorimeter operating data

    • Throughput: 2-3 Tests Per Hour
    • Operator work per test: 6-10 Minutes
    • Instrument precision class: 0.4%
    • Compensated operation with a Dewar Flask
    • Manual filling with oxygen
    • Manual filling of the bucket
    • 22mL Semi-Micro Bomb fitted with a manual valve
    • Communication with printer and balance through the USB port
    • SD Memory for transferring test data and log records
    • Ethernet network link using TCP/IP
    • Semimicro calorimeter dimensions (in): 9w x 13d x 13h
    • Calorimetric thermometer dimensions (in): 22w x 14d x 12h
    • Semimicro calorimeter dimensions (cm): 22w x 33d x 33h
    • Calorimetric thermometer dimensions (cm): 56w x 36d x 31h

    Dissolution calorimeter operating data

    • Precision class: 0.4% at a temperature rise of 1.5 to 5.0 °C, at or near room temperature
    • Working temperature interval: 10 to 50 °C
    • Sensitivity to temperature changes: 0.0001 °C
    • Measured energy range: 2 to 1000 Calories
    • Energy detection threshold: 0.1 Calorie
    • Instrument energy equivalent: 100 -145 Calories/°C
    • Maximum volume of solute: 20 mL
    • Solvent volume required: 90 to 120 mL
    • USB port for communicating with a printer and balance
    • SD Memory card slots for transfer of data and log files
    • TCP/IP communication over an Ethernet network
    • Dissolution calorimeter dimensions (in): 9w x 13d x 13h
    • Calorimetric thermometer dimensions (in): 22w x 14d x 12h
    • Dissolution calorimeter dimensions (cm): 22w x 33d x 33h
    • Calorimetric thermometer dimensions (cm): 56w x 36d x 31h
  • Replacement parts

    Parts for the semimicro bomb calorimeter
    ComponentSupply description
    Oxygen vesselVessel for oxygen combustion, 22 mL capacity
    Firing kitKit providing 500 Firings for the semimicro vessel
    Oxygen connectionConnection used to fill the vessel with oxygen
    Fuel capsulesCapsules for fuel samples, made of Inconel
    Fuse wireFuse wire supplied on a 10cm card
    Benzoic acidVial of benzoic acid pellets, 0.2 g each, 100 pcs
    Support standStand for supporting the assembly
    USB printerPrinter with USB communication, 115/230 VAC
    Thermal paperThermal printing paper for the USB printer
    Service clampClamp for servicing the equipment
    Parts for the dissolution calorimeter
    ComponentSupply description
    Sample cellCell with coupling supplied; bottom dish excluded
    Bottom dishDish for the cell bottom, made from PTFE
    Push rodGlass rod for opening the sample cell
    Dewar flaskFlask supplied without its spacer ring or cover
    Reference standardTris(hydroxymethyl)aminomethane standard in a 100 g. bottle
    USB printerPrinter with USB communication, 115/230 VAC
    Thermal paperThermal printing paper for the USB printer

    Calorimeter conversion equipment

    Conversion from dissolution to semimicro operation
    Complete conversion kit
    This kit supplies all components needed to change a dissolution calorimeter into a semimicro bomb calorimeter. The complete set contains the following items:
    Oxygen vesselVessel for semimicro oxygen combustion
    CoverAssembled calorimeter cover
    Dewar flaskDewar vessel with a capacity of 894 mL
    Oxygen connectionConnection for filling with oxygen
    Head supportHead support together with its stand
    Service fixtureFixture used for servicing the vessel
    Firing kitKit providing 500 Firings for the semimicro vessel
    Benzoic acidVial holding 100 pieces of benzoic acid pellets, 0.2 g each
    Fuse wireWire for ignition of the sample
    Calorimeter instructionsOperating instructions for the semimicro calorimeter
    Vessel instructionsOperating instructions for the semimicro oxygen vessel
    Conversion from semimicro to dissolution operation
    Complete conversion kit
    This kit contains all components needed to change a semimicro bomb calorimeter into a dissolution calorimeter. The supplied conversion parts are listed below:
    Dewar flaskDewar vessel supplied with its locating ring and O-ring
    CoverCalorimeter cover assembly including the bearing tower and pulley
    Push rodGlass rod for releasing the sample
    Sample cellCell assembly supplied without the cell bottom
    Cell bottomPTFE bottom for closing the sample cell
    TRIS standardTRIS reference standard supplied in a 100 g Bottle
    Operating instructionsInstructions for operating the dissolution calorimeter
