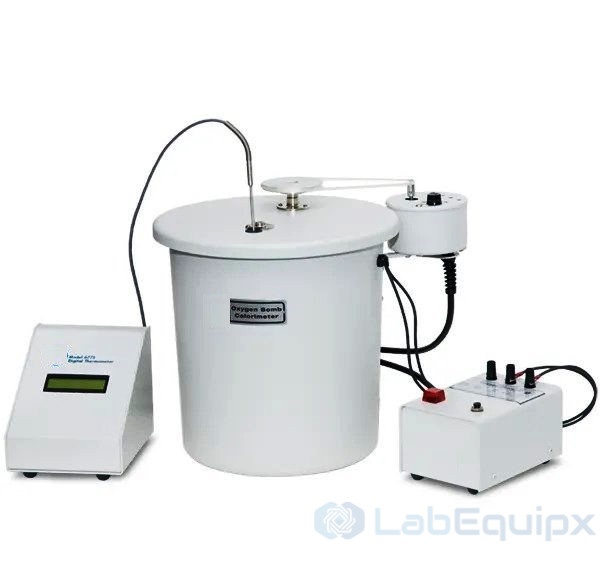

Plain Jacket Bomb Calorimeter

  • The LEPJBC-1341 Plain Jacket Bomb Calorimeter measures combustion heat in an insulated static jacket. It serves occasional calorific testing and accepts the same broad range of combustible solid and liquid samples as the related combustion calorimeter family.

    The simple instrument layout suits laboratories whose workload does not call for an automatic calorimeter. No permanent connections are required. Setup takes only a few minutes before operation can begin. After testing, the unit can be taken apart easily and kept on a shelf until it is needed again.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Plain Jacket Bomb Calorimeter
  • Instrument specifications

    • Calorimetry with a static jacket
    • Throughput: 2 Tests Per Hour
    • Operator involvement for each test: 25 Minutes
    • Precision class of the instrument: 0.3%
    • Temperature measurement with a digital thermometer
    • Oxygen charging is manual
    • The bucket is filled manually
    • The bomb is washed manually
    • Overall dimensions (in): 8.5w x 8.5d x 11.5h
    • Overall dimensions (cm): 21w x 21d x 29h

    Measurement and teaching applications

    The calorimeter determines the calorific value of solid and liquid materials that can safely undergo combustion in an oxygen bomb. It also supports instruction in heat measurement in student laboratories. All the instruments needed for the experiment are present, with each system element kept in a basic form that makes its function accessible to students. The simple construction is often described as a plain calorimeter. Its technical classification is a static jacket calorimeter: it operates at or close to room temperature, and the jacket temperature is not actively controlled. Heat loss or heat gain during a test is accounted for by a correction calculated from heat leakage measured before and after the test. A typical 8-hour working day permits about 10 or 12 tests. By comparison, an automatic calorimeter can complete up to 55 tests over the same period.

    Repeatability of measurement

    Repeatable results depend on careful measurement of the temperature increase and careful calculation and application of the heat leak correction. With the supplied digital thermometer, a sequence of tests on a uniform reference material such as benzoic acid should give a standard deviation no greater than 0.3%. Substituting the calorimetric thermometer can reduce this repeatability figure to 0.2%.

    Vessel, insulation and thermometer

    The instrument uses an oxygen bomb of the established calorimeter type. For waste samples or chlorinated solvents, an alternative bomb offers greater resistance to chlorine and halogen acids. The jacket has a molded double wall. This insulating arrangement limits heat exchange between the calorimeter and the surrounding air while retaining a simple construction. Temperature readings are obtained with the digital thermometer supplied for the instrument. Its working range is 10 to 40°C, and its measurement resolution is 0.001°C.

  • Replacement items and accessories

    ItemEquipment description
    Digital thermometerThermometer with digital indication
    Data logging thermometerOptional upgrade: digital thermometer with dual channels and data logging
    Calorimetric thermometerThermometer for calorimetric measurements
    Calorimeter sparesReplacement parts kit for the static jacket calorimeter
    Additional accessories
    * Oxygen vesselVessel for oxygen combustion
    Chlorine-service vesselOxygen combustion vessel for chlorine service
    * BucketBucket of oval form
    * Ignition unitUnit for electrical ignition
    * Oxygen connectionOxygen filling connection for the static jacket calorimeter
    Pellet pressPellet press supplied with a 1/2 in punch and die
    * Supplied with the base equipment

    The ignition unit supplies the low voltage electric current needed to ignite the charge in the oxygen bomb. The calorimetric thermometer also supports automatic bomb ignition, with firing controlled through its touch screen display.
