Compensated Combustion Calorimeter LECCD-6100
The LECCD-6100 Compensated Calorimeter measures combustion heat with a static jacket and removable oxygen bomb and bucket. It is intended for work whose precision requirements can be satisfied without isoperibol temperature control. Its format also suits small or intermittent workloads.
Instrument design
- The conventional calorimeter arrangement allows removal of both the oxygen bomb and the water bucket.
- With two bombs and buckets, the instrument can complete up to 7 tests per hour.
- The compact housing occupies little laboratory bench space.
- A graphical user interface simplifies operation and operator training.
- Digital electronics, software and communications provide the instrument's operating and data functions.
The instrument shares its housing, keyboard and LCD display panel with the related isoperibol calorimeter, so their external appearance is similar. The difference lies in the jacket: this compensated instrument does not contain the temperature-controlled jacket needed for isoperibol calorimetry.
Automatic operating features are retained for users whose required precision can be achieved by a static system. In place of a temperature-controlled water jacket and its associated accessories, a static air jacket surrounds the bucket chamber. This is comparable to the arrangement in a plain jacket calorimeter. Removing the water jacket eliminates its water supply and water connections. It also reduces the equipment involved in the installation. No permanent external connection is needed apart from the connection to an oxygen tank. The calorimeter can therefore be placed in service in a few minutes and moved aside when it is not being used.

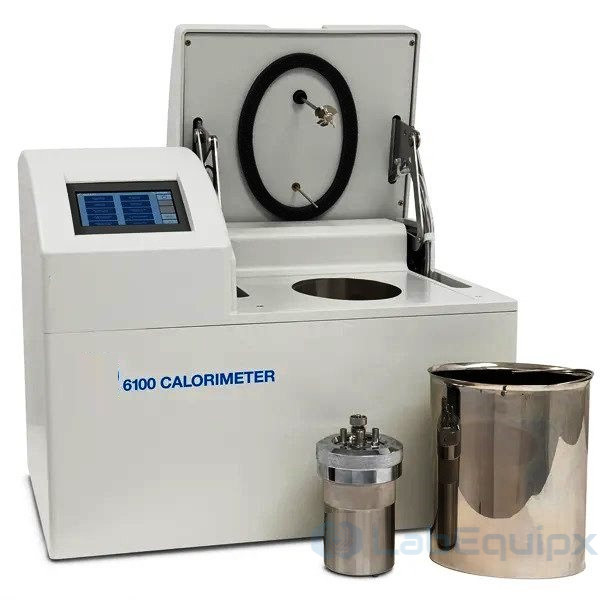

All control components and sensors are housed in a single compact cabinet. The self-contained operating unit comprises:

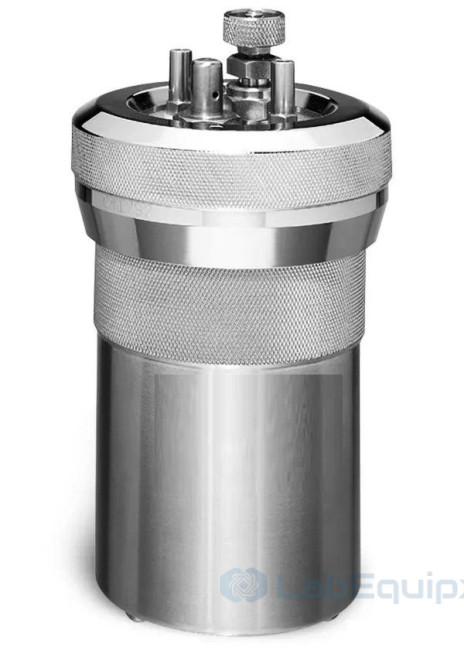

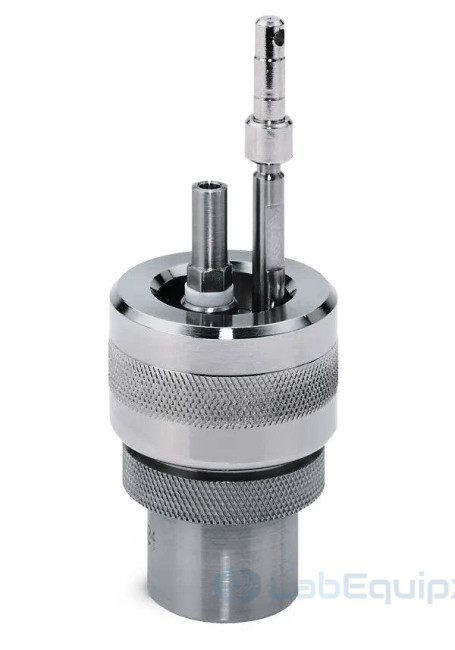

- An oxygen bomb and an oval bucket that fits inside the jacket.
- A built-in system that charges the bomb with oxygen automatically.
- A high precision thermometer with electronic measurement.
- A bright touch screen with a color display for data entry and operating control.
- A USB port for communication with a printer and balance.
- An Ethernet port for connection to a computer and local area network (LAN).
- Slots for removable SD memory cards, used for program updates and archiving test reports.
Different vessel options accommodate samples with heat releases from 52 calories to 12,000 calories per test.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Operating specifications
- Calorimetry with a compensated jacket
- Oxygen vessel and bucket can be removed
- Throughput: 4-7 tests per hour
- Approximately 6 minutes of operator work per test
- Instrument precision class: 0.1 to 0.2%
- Temperature resolution: 0.0001 ºC
- Sample energy range: 52 to 12000 calorie, depending on the selected vessel
- Linearity over the operating range: 0.05%
- SD memory storage and TCP/IP network communication
- USB port connects a balance and printer
- Internet access supports software updates
- Overall dimensions (in): 23w x 16d x 17h
- Overall dimensions (cm): 57w x 40d x 43h
Repeatability and calibration
The compensated calorimeter measures the temperature around the instrument throughout a test. It uses those readings to correct heat leakage as the measurement proceeds. This arrangement does not require the temperature-controlled water jacket of a conventional isoperibol calorimeter. Compared with a traditional static jacket, the compensated jacket improves the measurement by incorporating current jacket temperature into the heat leak calculation. It therefore avoids the lengthy periods before and after combustion that static jacket methods normally require. Analysis takes less time while providing the precision needed for the standard test methods most commonly used in commercial fuel testing.
As with other static jacket instruments, the calorimeter performs best away from drafts and changing ambient temperatures. A room controlled to +/- 1 C is the preferred location. Regular checks of calibration remain necessary for reliable measurements. The interval between checks depends mainly on how stable the room temperature is. As a general operating guideline, check the calibration at least every tenth test. The controller provides graphical control charts and an automatic rolling average calculation, giving the operator both methods for monitoring and maintaining calibration. When these operating practices are followed and reference materials such as benzoic acid are used, the process sigma, or precision classification, can be taken as 0.2%.
Integrated instrument and controls
The compact calorimeter combines its operating functions in a single unit. Its oxygen bomb and oval bucket use the same arrangement as the corresponding isoperibol calorimeter. The automatic oxygen filling equipment and high precision electronic thermometer are also shared with the corresponding isoperibol design. Operators enter data through a touch-panel keyboard. A color LCD presents operating prompts, equipment status, data checks and report displays. A microprocessor manages every stage of the test sequence. The operator can select conventional equilibrium operation or the faster dynamic mode. A dedicated microcomputer processes the resulting data automatically, keeping test control and data handling within the instrument.
Reports and operating languages
An optional printer produces a lasting record of the calorimeter's activity. The language setting applies to programming choices, operating menus, reports and error messages. Available languages are English, French, German, Spanish, Italian, Polish, Chinese, Russian and Czech.
Extended equipment package
The extended calorimeter package contains the equipment listed below. Additional accessories are listed separately in the same table.
Equipment in the extended package Component Supply description Calorimeter Calorimeter instrument Printer Printer with USB connection Oxygen vessel Additional oxygen vessel Bucket Additional bucket Service kit Service supplies for 1 Year Vessel maintenance Kit for maintaining the vessel Additional accessory choices Oxygen vessel Additional vessel for oxygen combustion Chlorine-service vessel Additional oxygen combustion vessel for chlorine service Oval bucket Additional bucket with oval shape Water handling Water handling system incorporating a measuring pipette and a thermoelectric water cooler Spare parts Kit of replacement parts Pellet press Press for preparing pellets
