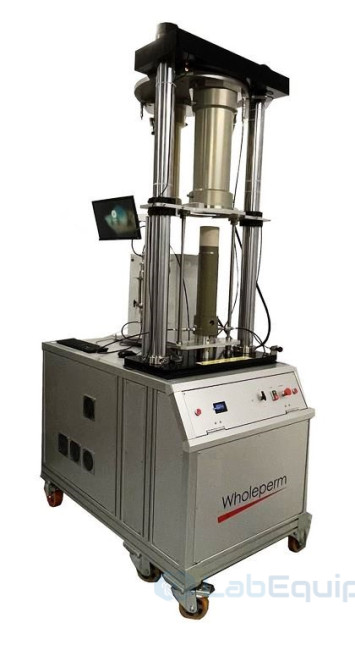

Full-Diameter Steady-State Gas Permeameter

Function. Measures horizontal and vertical gas permeability of full-diameter core samples by steady-state flow.

Controlled. Confining pressure; gas flow and differential pressure; flow direction.

Measured. Horizontal and vertical gas permeability.

Sample size, pressure ratings, wetted materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Permeability Range: 0.01mD to 10 darcies
• Flow Pressure: 100 psi
• Confining Pressure: 3,000 psi
• Gas flow: 0.-50 and 0-600 cc/min
• Temperature: ambient
• Core diameter: 2 to 5 7/8 inches
• Core length: 3 to 12 inches
• Power: 110-220 VAC, 50 or 60 Hz

Benefits

• Fast loading and unloading operation
• Wide range of core diameter
