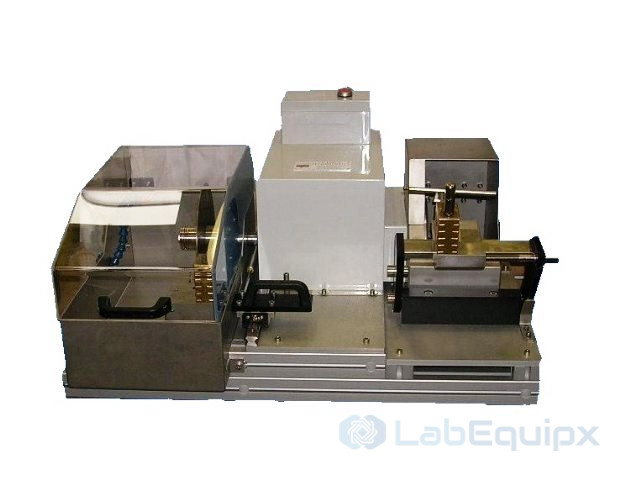

Trimming and End-Face Grinder

Function. Cuts core to preset lengths and grinds the end faces on the opposing side.

Controlled. Preset length; grind depth.

Measured. End-face flatness and parallelism.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Saw blades diameter: 200 mm (8'')
• Saw blades thickness: 2 mm
• Grinding precision: +/- 0.001 inch (2.5 / 100 mm)
• Grinding wheel diameter: 150 mm
• Core diameter: up to 2'' Core length: 2", 3" other upon request
• Lubricants: Water (usually),
• Oil Power supply: 220 VAC 1 ph 50 / 60 Hz
• Motor power: 550 W, 3,000 RPM
• Weight: 40 kg
• Volume: 700x800x600 mm
