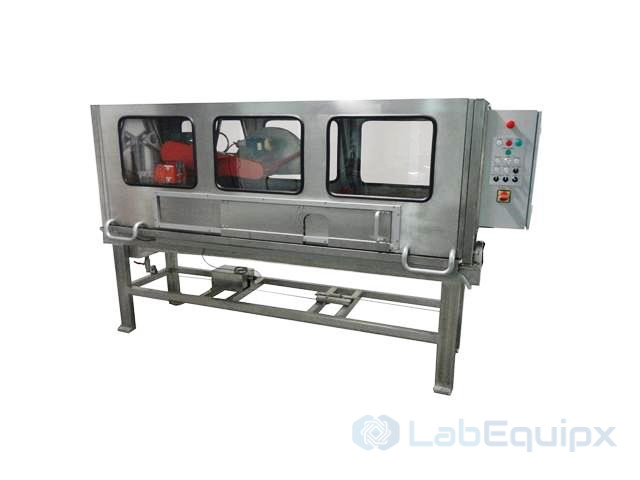

Automated Core Slabbing Saw

Function. Slabs or trims full-diameter core with a diamond-impregnated radial blade and a variable-rate powered feed.

Controlled. Variable feed rate; cut depth.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Saw blade diameter: 500 mm (20'')
• Maximum cutting depth: 150 mm (6")
• Maximum core length: 1 meter
• Compatible coolants: Water and oil
• Power supply: 220VAC 1 Phases, 50 or 60 Hz, 2,200 W
• Weight: 500 kg
• Dimensions: 300 cm x 170 cm x 90 cm (LxHxD)
