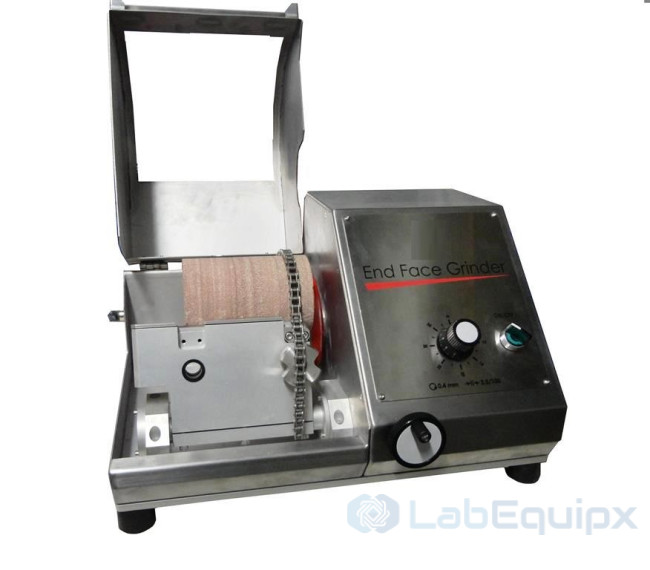

Full-Size Core End-Face Grinder

Function. Grinds flat, parallel end faces on full-size core where specimen geometry is critical.

Controlled. Grind depth and feed.

Measured. End-face flatness and parallelism.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Core Diameter: 1" to 4"
• Core Length: 1" to 8" (other upon request)
• Grinding wheel precision: +/- 0.001 inch (2.5 / 100 mm)
• Grinding wheel diameter: 150 mm
• Power supply: 220 VAC , 50 or 60 Hz
• Motor power: 0,55 kw, 3,000 RPM
• Weight: 40 kg
• Volume: 600x500x500 mm
