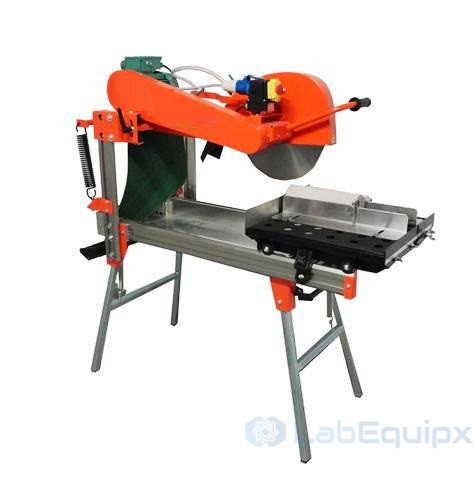

Radial Core Slabbing Saw

The Radial Core Slabbing Saw (model CT-PREP-SLAB) cuts full-diameter core in half lengthwise or trims full-diameter rock with a diamond-impregnated radial blade. It belongs to the core preparation range and is used together with the trim saw, plugging machines and end-face grinders listed in the same range.

How it works

The blade is 400 mm (16 in) in diameter and gives a maximum cutting depth of 125 mm (5 in). Core up to 300 mm long is handled per cut. Feed and cut depth are the controlled variables: the operator sets the depth of cut and controls the feed of the core against the blade. The blade is run wet; water and oil are both listed as compatible coolants.

The saw is supplied for 220 VAC, 50 or 60 Hz, and weighs 100 kg.

What is included

• Saw with 400 mm diamond-impregnated radial blade
• Feed and cut depth adjustment
• Provision for water or oil coolant

Specify for your project

• Core diameters and the maximum core length to be cut, within 125 mm cut depth and 300 mm length
• Rock types to be cut, for tooling selection
• Coolant preference: water or oil
• Electrical supply at site if different from 220 VAC, 50 or 60 Hz
• Whether the related Automated Core Slabbing Saw is required instead for higher throughput

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Saw blade diameter: 400 mm (16'')
• Maximum cutting depth: 125 mm (5")
• Max core length: 300 mm
• Compatible coolants: Water and oil
• Power supply: 220 VAC , 50 or 60 Hz
• Weight: 100 kg
