Core Cutting Saw

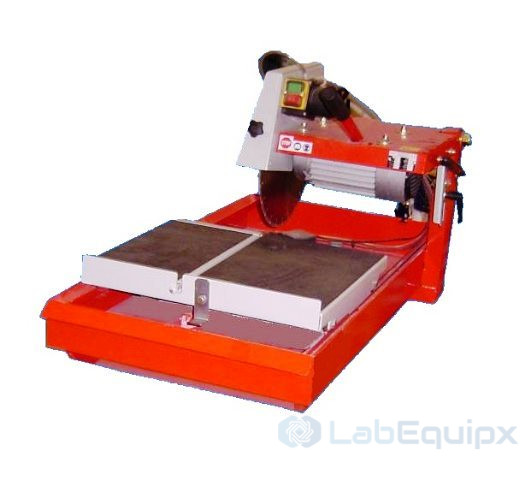

The Core Cutting Saw (CT-PREP-CUT) is a benchtop saw with a 350 mm (14 in) diamond-impregnated radial blade for cutting core samples in half and trimming rock samples before plugging, end-facing or testing. It cuts to a depth of 100 mm (4 in) and takes core up to 300 mm long. It sits in the core cutting group with the slabbing saws, trim saw and plugging machines.

How it works

The sample is held on the saw table and fed into the rotating blade; feed and cut depth are the controlled variables. Cutting is wet, with water or oil as coolant. The 3 hp motor runs on 220 V, 50 or 60 Hz. The unit weighs 82 kg and measures 1,120 x 620 x 710 mm.

Sample size, capacity, materials, tooling and instrumentation are configured per project; the values above describe the standard configuration.

What is included

• Benchtop saw with 350 mm (14 in) diamond-impregnated radial blade
• Sample table with feed and cut depth control
• Wet cutting with water or oil coolant
• 3 hp motor, 220 V, 50 or 60 Hz

Specify for your project

• Core diameter and length (standard up to 300 mm) and required cut depth (standard up to 100 mm)
• Rock types to be cut and expected throughput
• Coolant: water or oil, and coolant handling at the bench
• Power supply: 220 V, 50 or 60 Hz, or other
• Tooling: blade and sample holding for full-diameter core or blocks

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Saw blade diameter: 350 mm (14")
• Maximum cutting depth: 100 mm (4")
• Max core length: 300 mm
• Compatible coolants: Water and oil
• Power supply: 220V, 50 or 60 Hz, 3 horses
• Weight: 82 kg
• Dimensions: 1120x620x710 mm
