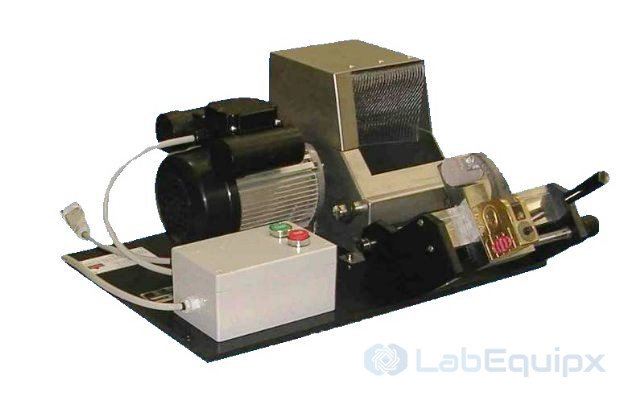

End-Face Grinder

Function. Grinds flat, parallel end faces where specimen geometry is critical, such as for advanced rock-property tests.

Controlled. Grind depth and feed.

Measured. End-face flatness and parallelism.

Sample size, capacity, materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Core Diameter: up to 2"
• Grinding wheel precision: +/- 0.001 inch (2.5 / 100 mm)
• Grinding wheel diameter: 150 mm
• Power supply: 220 VAC , 50 or 60 Hz
• Motor power: 0,55 kw, 3,000 RPM
• Weight: 30 kg
• Volume: 600x500x500 mm
