Trim Saw

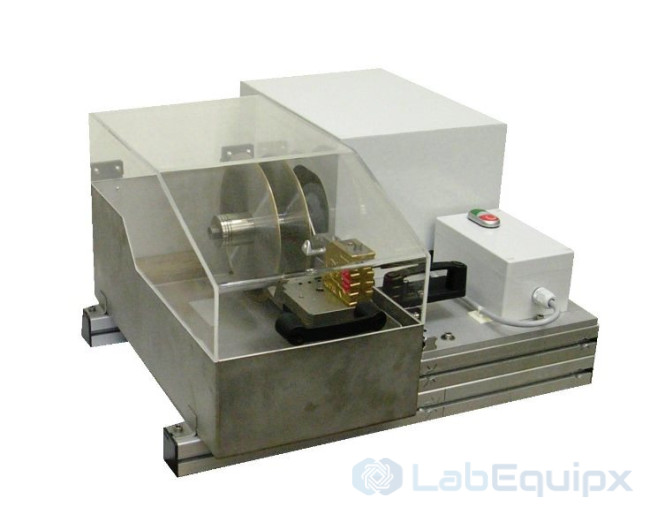

The Trim Saw LETS is a benchtop saw that cuts core samples to preset lengths for core laboratory sample preparation. Adjustable machined spacers set the cut length, so a series of samples can be trimmed to the same dimension without measuring each one. It takes cores up to 2 inches in diameter, with standard lengths of 2 and 3 inches and other lengths on request.

How it works

A 200 mm (8 inch) blade, 2 mm thick, is driven by a 550 W motor at 3,000 rpm. The operator sets the spacer for the required length, places the core against it and feeds it into the blade. Preset length and feed are the two controlled parameters. The blade is lubricated with water, the usual choice, or with oil.

The saw runs on single-phase 220 VAC at 50 or 60 Hz and is compact enough for a bench: 700 × 800 × 600 mm and 30 kg.

What is included

• Benchtop saw with 550 W motor, 3,000 rpm
• Saw blade, 200 mm diameter and 2 mm thick
• Adjustable machined spacers for preset core lengths

Specify for your project

• Core diameter, up to 2 inches
• Required cut lengths: 2 in, 3 in or other
• Lubricant: water or oil
• Rock type to be cut; blade specification is stated in the project datasheet
• Site power: 220 VAC single phase, 50 or 60 Hz

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Saw blade diameter: 200 mm (8'')
• Saw blade thickness: 2 mm
• Core diameter: up to 2''
• Core length: 2", 3" other upon request
• Lubricants: water (usually), oil
• Power supply: 220 VAC 1 phase 50 or 60 Hz
• Motor power: 550 W, 3,000
• RPM Weight : 30kg
• Dimensions: 700x800x600 mm
