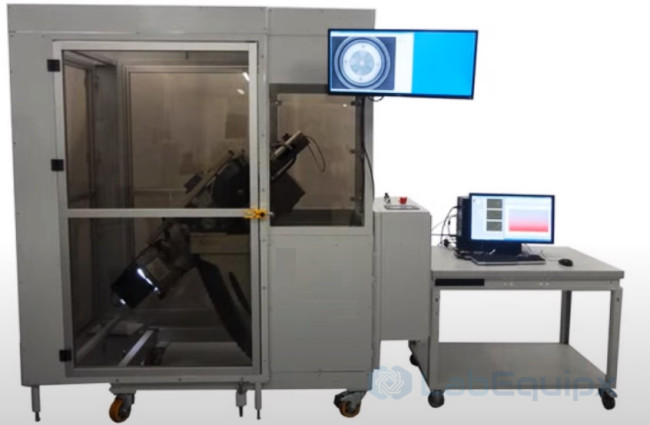

Full-Visual PVT System

Function. Performs hydrocarbon phase-behavior studies at reservoir pressure and temperature with a full-visual cell for direct observation of phase changes on black oil, volatile oil and gas condensate.

Controlled. Cell pressure and temperature; sample mixing.

Measured. Phase volumes and boundaries by direct visual observation, saturation/bubble-point pressure.

Cell volume, pressure and temperature ratings, wetted materials, visual/measurement options and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Pressure / volume: 15,000 psi / 400 ml (Visual Fluid Eval model)
• Temperature : Ambient to 200°C (option: -20°C)
• Temperature regulation : ± 0.2 °C
• Volume accuracy : 0.001 ml
• Pressure accuracy : 0.02% Full scale
• Liquid deposit accuracy : ± 0.005 ml
• Power supply : 220 VAC, 50/60 Hz

Benefits

• Versatile design
• Mercury free operation
• Minimum dead volume
• Full sample visibility for greater operational capability
• Embedded pump for precise pressure control and volume measurement
• Video camera system for recording PVT experiments in real time
• Magnetic driven stirrer for rapid phase equilibrium
• Motorized rocking system for cell positioning
• High temperature pressure transducer with extreme accuracy
• Special polyimide sealing resistant against fast gas decompression
• Sub-ambient temperature control
