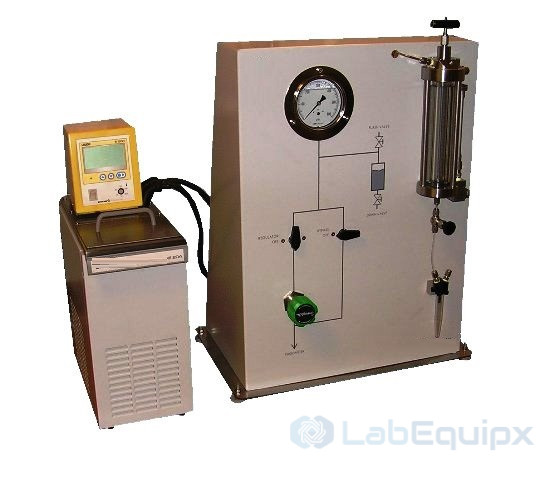

Equilibrium Flash Separator

Function. Flashes a pressurized liquid and measures the gas-oil ratio at equilibrium in a two-stage arrangement.

Controlled. Stage pressure and temperature.

Measured. Liberated gas volume (gasometer, ambient) and liquid volume (graduated tube); calculated GOR.

Cell volume, pressure and temperature ratings, wetted materials, visual/measurement options and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Volume : 40 cc Pressure : vacuum to 500 psi
• Volume accuracy : 0.1 ml
• Wetted parts : Pyrex, stainless steel
• Power supply : 220 VAC ,50 Hz

Benefits

• Easy operation
• Accurate liquid volume measurement
• Possibility to heat sample with an external heating fluid
