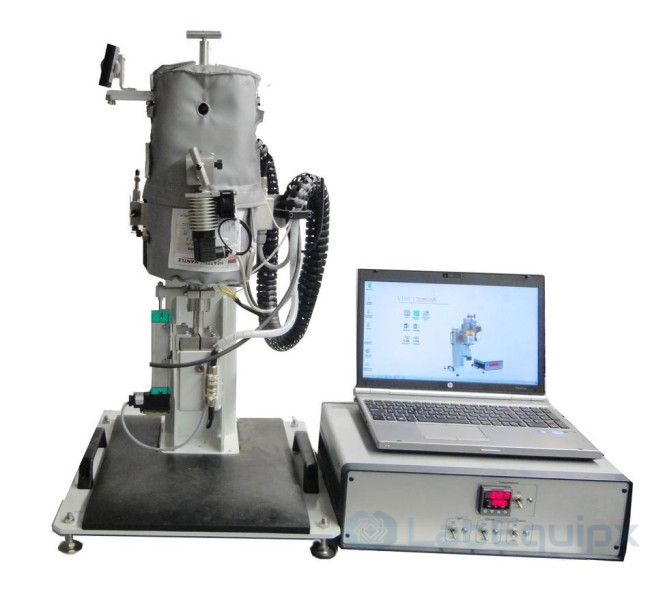

Bubble-Point Pressure Apparatus

Function. Determines the pressure-volume curve and the bubble-point pressure of hydrocarbon samples at reservoir-representative temperature and pressure; also used for sample quality checks.

Controlled. Cell pressure and temperature; volume.

Measured. Pressure-volume relationship and bubble-point pressure.

Cell volume, pressure and temperature ratings, wetted materials, visual/measurement options and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Pressure : up to 15,000 psi
• Temperature : Ambient to 175°C (350 °F)
• Cell volume : 100 ml
• Temperature accuracy : ± 0.2 °C
• Volume accuracy : 0.01 ml
• Pressure accuracy : 0.1% Full scale
• Wetted parts : Stainless steel
• Power supply : 220 VAC 50/60 Hz

Benefits

• Fast and accurate pressure-volume relationship determination of reservoir oils
• Simple operations
• Substitutes the unnecessary use of time-consuming PVT cells
