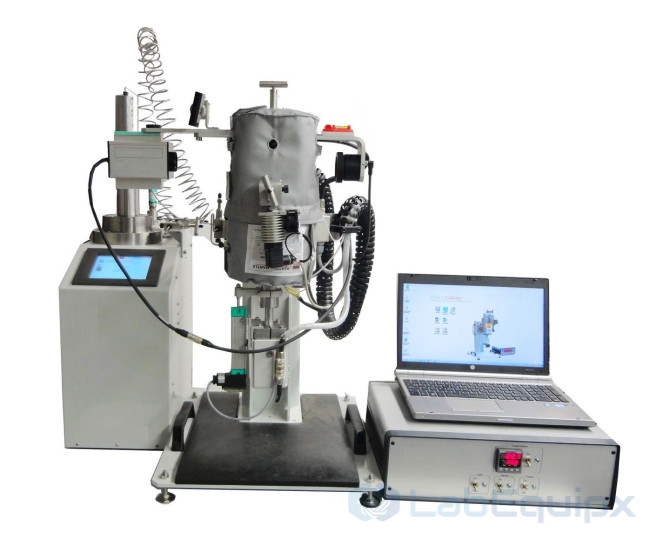

Compact PVT Cell

Function. Compact PVT cell for small-volume phase-behavior and thermodynamic-property studies of black oil and gas condensate, with a piston-mounted fluid mixer.

Controlled. Cell pressure and temperature; piston-mounted mixing.

Measured. Phase volumes, saturation/bubble-point pressure.

Cell volume, pressure and temperature ratings, wetted materials, visual/measurement options and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Pressure : 10,000 psi
• Temperature : Ambient to 175°C (350 °F)
• Temperature regulation : ± 0.5 °C
• Cell volume : 100 cc
• Volume accuracy : 0.01 ml
• Pressure accuracy : 0.1% Full scale
• Power supply : 220 VAC 50/60 Hz

Benefits

• Versatile design
• Cost effective PVT cell
• Designed for instructional purposes
• Perfectly suited for educational and research establishments
• Mercury free operation
• Requires small sample volume
• Computer controlled with PVT reporting facilities
• Automated phase detection and phase volume measurement
• Video camera system for recording PVT experiments in real time
• Magnetically driven stirrer for rapid phase equilibrium
• Manual rocking system for cell positioning
