Three-Phase Video Separator (HPHT)

  • A vertical separator bore receives three-phase effluent from a core and separates the gas, oil and water. The unit maintains pressure and temperature representative of the reservoir. It measures the volume of each phase under those reservoir conditions.

    The project determines the allowable volume, pressure and temperature, together with the fluid-contact materials, seals and measurement instrumentation.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Three-Phase Video Separator (HPHT)
  • Technical characteristics

    • The pressure limit during operation is 10,000 psi.
    • The upper temperature limit is 150 °C.
    • Changes in phase volume cover a range of 100 ml.
    • Phase volume readings have an accuracy of 0.01 ml.
    • Construction uses stainless steel and sapphire; Inconel is optional.
    • The visible measurement span is 100 mm.
    • The color CCD camera has a resolution of 25 Megapixels.
    • Illumination consumes 25 watts.
    • Provide 110-220 VAC electrical service at a frequency of 50 or 60 Hz.

    Operation and measurement

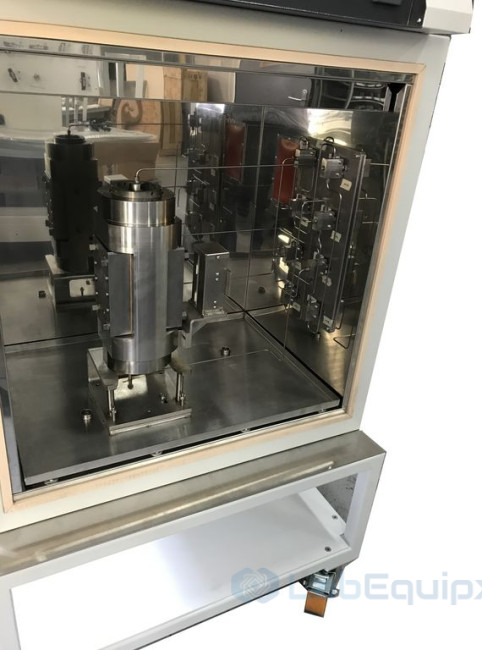

    • The compact separator fits within the air baths used for coreflood experiments.
    • Visible access to all produced phases allows volume changes to be measured while capturing live images. These images show the heights of the water/oil interface and the oil/gas interface at the same time. Operators can compare the recorded views against calculated measurement data.
    • High-resolution 4K imaging observes a produced-fluid column measuring 10 cm. This view supports precise identification of the menisci and the associated volume changes.
  • Technical characteristics

    • The pressure limit during operation is 10,000 psi.
    • The upper temperature limit is 150 °C.
    • Changes in phase volume cover a range of 100 ml.
    • Phase volume readings have an accuracy of 0.01 ml.
    • Construction uses stainless steel and sapphire; Inconel is optional.
    • The visible measurement span is 100 mm.
    • The color CCD camera has a resolution of 25 Megapixels.
    • Illumination consumes 25 watts.
    • Provide 110-220 VAC electrical service at a frequency of 50 or 60 Hz.

    Operation and measurement

    • The compact separator fits within the air baths used for coreflood experiments.
    • Visible access to all produced phases allows volume changes to be measured while capturing live images. These images show the heights of the water/oil interface and the oil/gas interface at the same time. Operators can compare the recorded views against calculated measurement data.
    • High-resolution 4K imaging observes a produced-fluid column measuring 10 cm. This view supports precise identification of the menisci and the associated volume changes.
