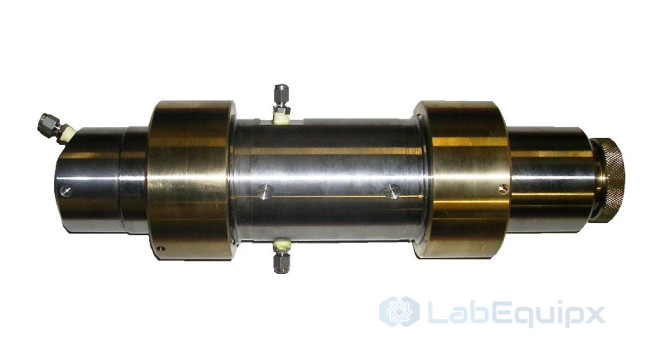

Triaxial Core Holder LETRC
A triaxial core holder supports fluid-displacement experiments in porous specimens. Radial confinement can be set separately from axial confinement. A floating distribution plug transmits the independently applied axial load. Distribution plugs at the inlet and outlet provide the fluid path through the specimen.
Load the sample through an end opening while leaving its sleeve in the holder. This loading method does not require the confining liquid to be drained or replenished. To remove the specimen, first release radial confinement and axial pressure, then unscrew the end plug. The sample can then be withdrawn without contact with the hydraulic liquid.
The loading arrangement can be configured as triaxial, hydrostatic or Hassler to suit the experiment.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Operating pressure rating: 5,000, 10,000 psi, 15,000 psi
- Operating temperature: up to 150°C
- Fitting: NPT, Autoclave or HIP
- Core diameter: Customer specified
- Core length: Customer specified
- Wetted parts: Stainless steel, Hastelloy, titanium
- Sleeve material: Viton
- Inlet port: As request
- Outlet port: As request
