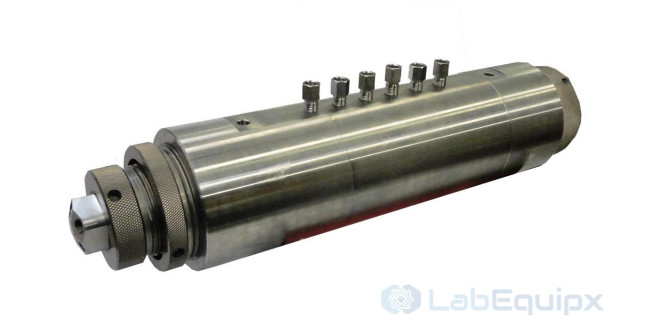

Pressure-Tapped Hassler Core Holder
Function. Holds a sleeved cylindrical core under radial confining pressure, with pressure taps set along the sleeve axis to read intermediate pressure drop.
Controlled. Radial confining pressure; axial platen loading.
Measured. End-to-end and intermediate (tapped) pressure drop and flow.
Configuration. Tap positions along the longitudinal axis specified per project.
Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.
Model: LEPTHAC
Technical characteristics
- The holder carries a working pressure rating of 5,000 psi.
- Temperature configurations cover ambient operation or operation at 150°C.
- Specify NPT fittings, or request an alternative fitting arrangement.
- Select the accepted specimen diameter for the project.
- Select the accepted specimen length for the project.
- Specify the pressure tapping arrangement for the project.
- Fluid-contact construction is available in Hastelloy or stainless steel.
- The specimen sleeve uses Viton.
- The inlet connection arrangement is on request.
- The outlet connection arrangement is on request.
