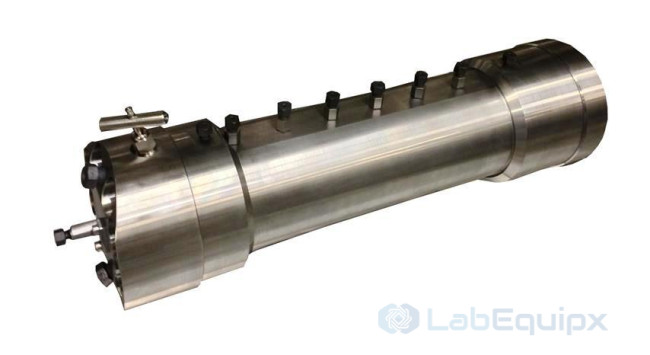

Pressure-Tapped Leakoff Core Holder
Send a request
CT-CH-PTLEAK
Pressure-Tapped Leakoff Core Holder
Function. Replicates fluid invasion with tangential circulation across a leakoff end face, with pressure taps along the sleeve for the invasion pressure profile.
Controlled. Confining pressure; tangential circulation and invasion flow.
Measured. Invasion volume and tapped pressure profile.
Configuration. Tap positions specified per project.
Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.
Model: LEPTLEC
Technical characteristics
- Confinement has a pressure limit of 10,000 psi.
- The pore circuit has a pressure limit of 5,000 psi.
- The mud circuit has a pressure limit of 5,000 psi.
- The upper operating temperature limit is 150°C.
- Connections use the NPT fitting type.
- Select the accepted specimen diameter for the project.
- Select the accepted specimen length for the project.
- Hastelloy forms the components that contact fluid.
- The specimen sleeve uses Viton.
- The inlet connection arrangement is on request.
- The outlet connection arrangement is on request.
- The pressure tapping arrangement is on request.
