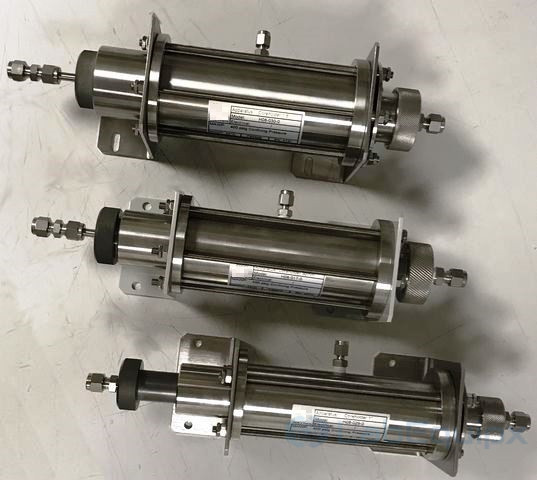

Quick-Release Core Holder

Function. Holds a sleeved core under radial confining pressure; a quarter-turn bayonet closure allows loading without complete disassembly and keeps the sleeve inside the holder.

Controlled. Radial confining pressure; axial platen loading.

Measured. Inlet/outlet pressure and flow when instrumented.

Configuration. Quick-release bayonet closure for higher specimen throughput.

Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Operating pressure rating: 400 psi, 1,000 psi or 5,000 psi
• Operating temperature: ambient and up to 80°C
• Fitting: NPT
• Core diameter: Customer specified
• Core length: Customer specified
• Wetted parts: Stainless steel
• Sleeve material: Nitrile
• Inlet port: As request
• Outlet port: As request
