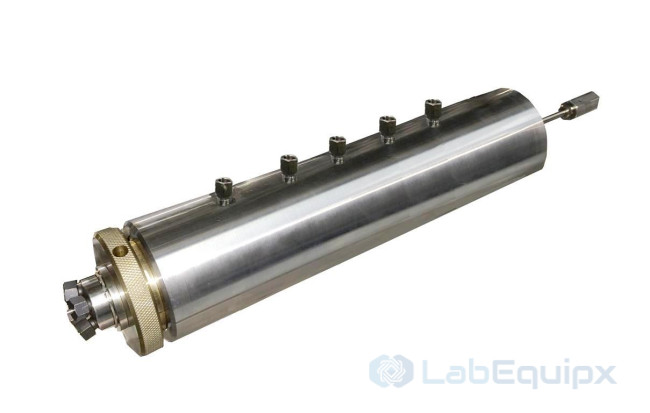

Pressure-Tapped Hydrostatic Core Holder

  • Function. Applies hydrostatic confining pressure around a sleeved core, with pressure taps set along the sleeve axis for intermediate pressure-drop measurement.

    Controlled. Hydrostatic confining pressure; pore/through-flow.

    Measured. End-to-end and intermediate (tapped) pressure drop and flow.

    Configuration. Tap positions specified per project.

    Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

    Model: LEPTHYC

    • Pressure-Tapped Hydrostatic Core Holder
  • Technical characteristics

    • Available working pressure ratings are 5,000 psi, 10,000 psi and 15,000 psi.
    • The upper operating temperature limit is 150°C.
    • Specify NPT fittings, or request an alternative fitting arrangement.
    • Select the accepted specimen diameter for the project.
    • Select the accepted specimen length for the project.
    • Specify the pressure tapping arrangement for the project.
    • Fluid-contact construction is available in Hastelloy or stainless steel.
    • The specimen sleeve uses Viton.
    • The inlet connection arrangement is on request.
    • The holder has one outlet connection.
