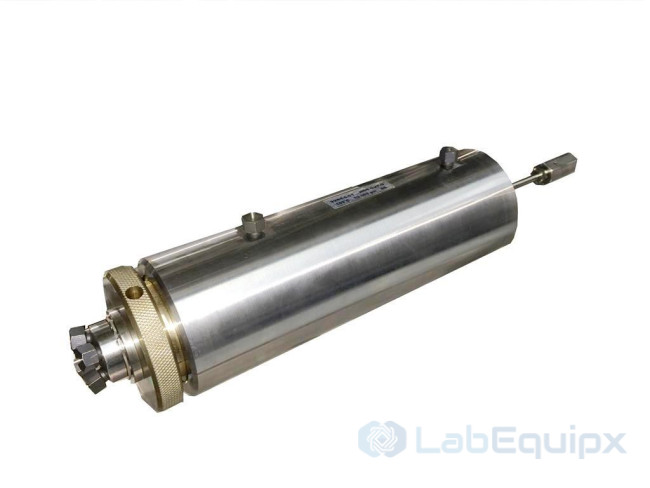

Hydrostatic Core Holder

Function. Applies hydrostatic confining pressure (equal radial and axial) around a sleeved cylindrical core for fluid-displacement studies.

Controlled. Hydrostatic confining pressure; pore/through-flow.

Measured. Inlet/outlet pressure and flow when instrumented.

Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Operating pressure rating: 5,000, 10,000 psi, 15,000 psi
• Operating temperature: up to 150°C
• Fitting: NPT, Autoclave or HIP
• Core diameter: Customer specified
• Core length: Customer specified
• Wetted parts: Stainless steel, Hastelloy, titanium
• Sleeve material: Viton
• Inlet port: As request
• Outlet port: one
• Pressure tap: As request
