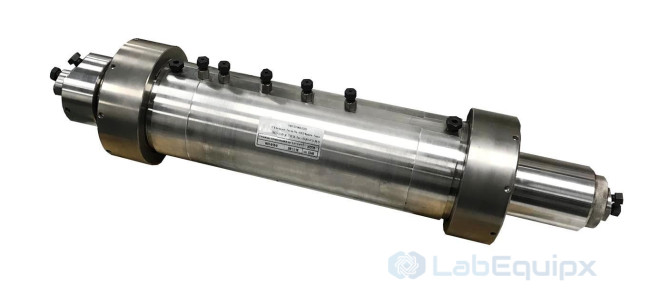

Pressure tapped triaxial coreholder

  • Pressure-tapped triaxial holders support experiments on displacement of fluids through porous specimens. Molded pressure taps occupy specified positions along the length of the Viton sleeve. These locations allow pressure differences to be monitored along the specimen rather than only across its ends.

    Axial loading and radial confinement are independently applied. A floating distribution plug transfers the axial pressure, while distribution plugs at each end provide the injection path through the core. The arrangement therefore supports through-flow while applying separate axial and radial pressures.

    The sleeve stays within the holder during specimen changes. Insert the core through an end opening without emptying or refilling the confining-liquid circuit. For removal, release both axial pressure and radial confinement before unscrewing the end plug. The specimen can then be taken out without exposure to hydraulic liquid.

    Configure the holder for triaxial, hydrostatic or Hassler loading according to the required experiment.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Pressure tapped triaxial coreholder
  • Technical characteristics

    • Available working pressure ratings are 5,000 psi, 10,000 psi and 15,000 psi.
    • The upper operating temperature limit is 150°C.
    • Specify NPT fittings, or request an alternative fitting arrangement.
    • Select the accepted specimen diameter for the project.
    • Select the accepted specimen length for the project.
    • Specify how many pressure taps the holder requires.
    • Fluid-contact material choices comprise titanium, stainless steel and Hastelloy.
    • The specimen sleeve uses Viton.
    • The inlet connection arrangement is on request.
    • The outlet connection arrangement is on request.
