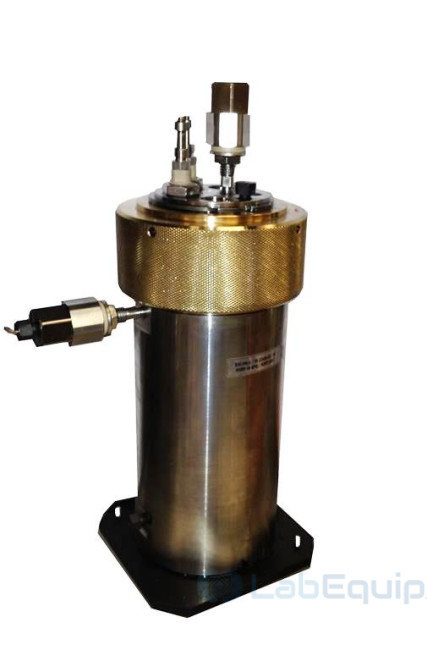

Resistivity Core Holder

  • Function. Hydrostatic core holder fitted with electrical feedthroughs for resistivity measurement on the confined core.

    Controlled. Hydrostatic confining pressure; through-flow; electrical excitation.

    Measured. Resistivity/resistance plus pressure and flow.

    Configuration. Electrode arrangement specified per project.

    Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

    Model: LECP

    • Resistivity Core Holder
  • Technical characteristics

    • The holder carries a working pressure rating of 10,000 psi.
    • Operation covers ambient temperature and heating through 150°C.
    • Resistivity can be measured using 2 points or 4 points.
    • Connections use the NPT fitting type.
    • Select the accepted specimen diameter for the project.
    • Select the accepted specimen length for the project.
    • Stainless steel forms the components that contact fluid.
    • The specimen sleeve uses Viton.
    • There are 2 inlet connections.
    • There is 1 outlet connection.
