Capillary Pressure / Resistivity Core Holder (2-Pole)
Function. Hydrostatic core holder with insulated end pieces for two-pole electrical measurement; capillary pressure is set by a water-wet semi-permeable ceramic against the core.
Controlled. Hydrostatic confining pressure; capillary pressure via semi-permeable ceramic; 2-pole electrical excitation.
Measured. Capillary pressure, saturation and 2-pole resistance.
Configuration. Insulated 2-pole end pieces.
Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

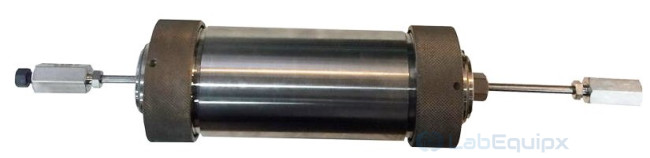

Model: LEPCRIC
Technical characteristics
- The holder carries a working pressure rating of 10,000 psi.
- Operation covers ambient temperature and heating through 90°C.
- Resistivity measurement uses 2 points.
- Connections use LP fittings sized at 1/8 inch.
- Accepted specimen diameters are 1 inch, 1.5 inches and 30 mm.
- The accepted specimen length reaches 3 inches.
- Stainless steel forms the components that contact fluid.
- The specimen sleeve uses Viton.
- There is 1 inlet connection.
- There is 1 outlet connection.
