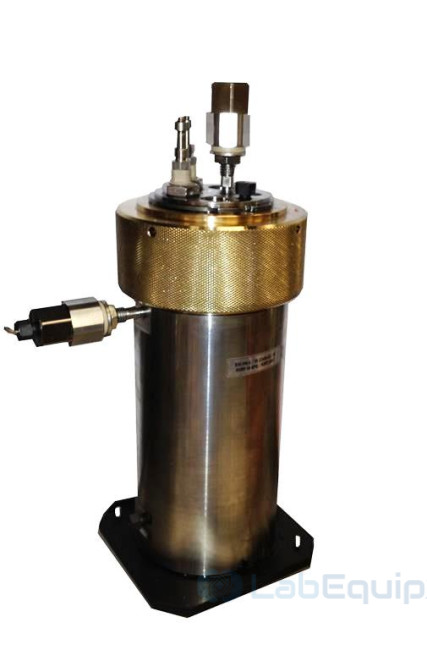

Capillary Pressure / Resistivity Core Holder

Function. Hydrostatic core holder combining electrical measurement with capillary-pressure control via a pressure-calibrated water-wet semi-permeable ceramic between the flow distributor and the core.

Controlled. Hydrostatic confining pressure; capillary pressure via semi-permeable ceramic; electrical excitation.

Measured. Capillary pressure, saturation and resistivity.

Configuration. Ceramic threshold and electrode arrangement specified per project.

Bore diameter, length, pressure and temperature ratings, sleeve and wetted materials, end connections and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Operating pressure rating: 10,000 psi
• Operating temperature: ambient or up to 150°C
• Resisitivity measurement: 2 points and 4 points
• Capillary pressure: positive and negative
• Fitting: NPT
• Core diameter: Customer specified
• Core length: Customer specified
• Wetted parts: Stainless steel
• Sleeve material: Viton
• Inlet port: 2
• Outlet port: 1
