Zirconium alloy Industrial High-Pressure Scale Reactor

  • The LEZAIHPSR is an industrial stirred pressure reactor in zirconium or zirconium clad plate. Zirconium resists most organic and inorganic acids, salt solutions, strong alkalis and some molten salts, and it performs especially well in hydrochloric acid. Oxidizing ions such as ferric and cupric ions, and fluorides, must be kept out of the process. Typical duties are hydrochloric acid, acetic acid, melamine, nitric acid, sulfuric acid and sodium hydroxide.

    Design

    Nominal volume runs from 1000 L to 100 m3, with working pressure -1 to 200 bar and working temperature 0 to 300 °C. A low to high torque magnetic coupling gives a static seal with no shaft leakage; a mechanical seal is the alternative. Motor power is 5.5 kW to 125 kW and stirring speed 200 to 400 rpm. The impeller (propeller, paddle, anchor, turbine or a custom design) is chosen for the mixing duty. Heads are elliptical, conical, hemispherical or flat. Heating is by oil electric heating, oil or steam. The vessel stands on lugs or a floor stand.

    Zirconium grades are Zr-1, Zr-3 and Zr4. In clad construction the base plate, 6 to 200 mm thick, carries the pressure and the clad layer, 3 to 10 mm thick, resists corrosion.

    Typical applications

    • Hydrochloric acid and acetic acid
    • Melamine
    • Nitric acid and sulfuric acid
    • Sodium hydroxide

    Fittings

    • Internal cooling coil, baffles, dip tube and thermowell
    • Vent port, liquid and powder charging
    • Safety rupture disc and pressure safety valve
    • Flush bottom outlet, light and sight glass, handhole or manhole
    • Nozzles, manual or automated valves, fittings and control panel per requirement

    Specify for your project

    • Nominal volume, 1000 L to 100 m3
    • Working pressure and temperature, up to 200 bar and 300 °C
    • Solid zirconium or zirconium clad, and grade
    • Presence of ferric, cupric or fluoride ions in the process
    • Seal type, impeller and heating method

    The LEZAIHPSR listing shows a 1000 L reference model.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

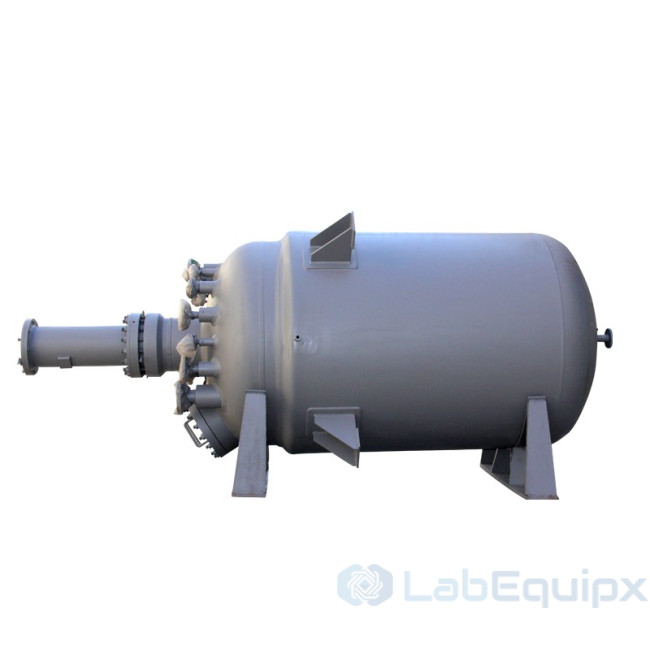

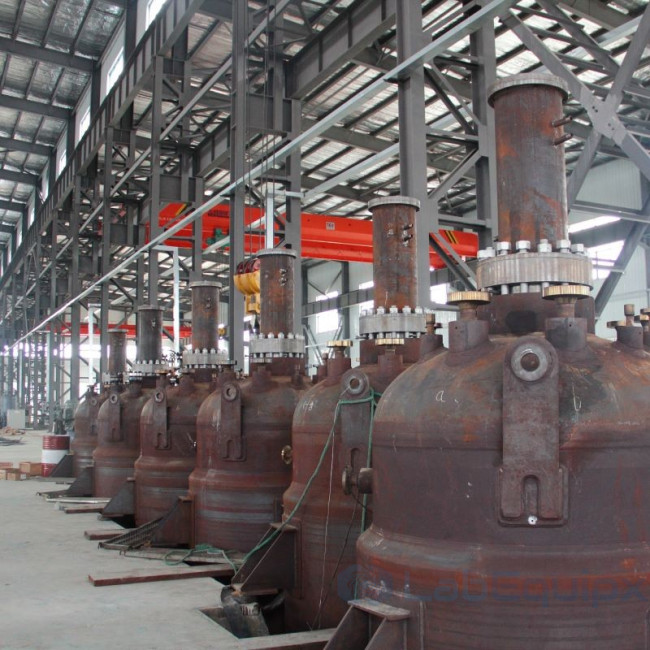

    • Zirconium alloy Industrial High-Pressure Scale Reactor

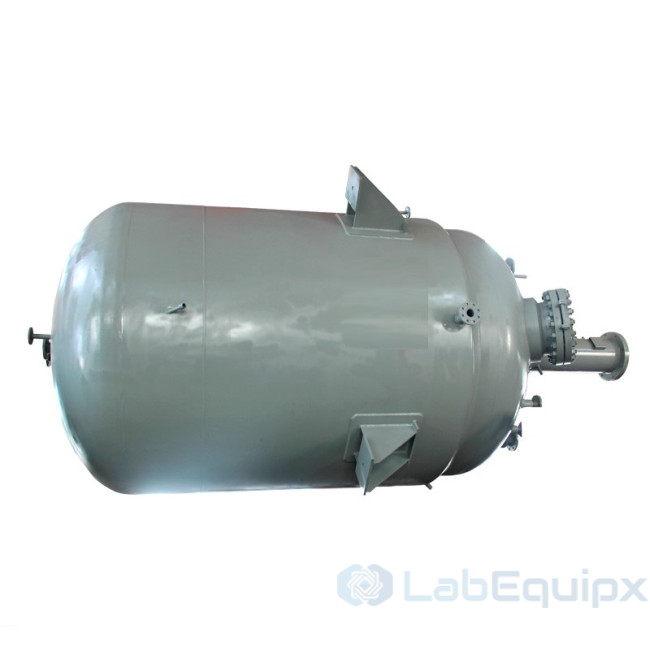

    • Zirconium alloy Industrial High-Pressure Scale Reactor
    • Zirconium alloy Industrial High-Pressure Scale Reactor
    • Zirconium alloy Industrial High-Pressure Scale Reactor
  • Features

    • Large scale production- maximum volume reach to 100m3
    • Max pressure: 200 bar; Max temperature up to 300 ℃
    • Material:Zirconium or cladding plate available
    • Cladding plates use a base material for strength and a clad material for corrosion resistance.
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Accurate Impeller selected for the mixing mission and requires.
    • Internal cooling coil, vent port, liquid/powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole/manhole, etc.
    • Nozzles, manual/automated valves, fittings, control panel & accessories are offered based on the requirement.
    • Lugs or floor stand leg support

    Technical Requirements

    Model LEZAIHPSR 1000L
    Norminal volume
    1000liters-100m3
    Material

    Zirconium

    Working pressure -1~200 bar
    Working temp. 0~300℃
    Motor power

    5.5kW-125kW

    Stirring speed 200~400rpm
    Sealing method

    Magnetic seal

    Mechanical seal

    Stirrer

    Porpeller;Paddle type;

    Anchor type;Turbine type

    Other as designed

    Head type

    Elliptical type

    Conical type

    Hemispherical type

    Flat type

    Heating type

    Oil electric heating

    Oil heating

    Steam heating

    Material Includes

    Carbon steel

    Q235R, Q345R, 15CrMoR,

    16MnDR(Low temp. steel)

    Austenitic stainless steel

    304/304L, 316/316L, 310S, 321

    Duplex stainless steel

    S32205, S32507

    Titanium alloy

    Gr1, Gr2, Gr3, Gr9,

    TA1, TA2, TA3, TA9, TC10

    Zirconium alloy

    Zr-1, Zr-3, Zr4

    Nickel alloy

    N6,Monel400, HastelloyC276,

    HastelloyB-2; Incoloy600

    Nonmetallic Materials

    PTFE, PPL, PFA

    Note: Cladding plates use a base material for strength and a clad material for corrosion resistance.

    • Base Thickness:6-200mm;
    • Clad Thickness: 3-10mm

    Product Details

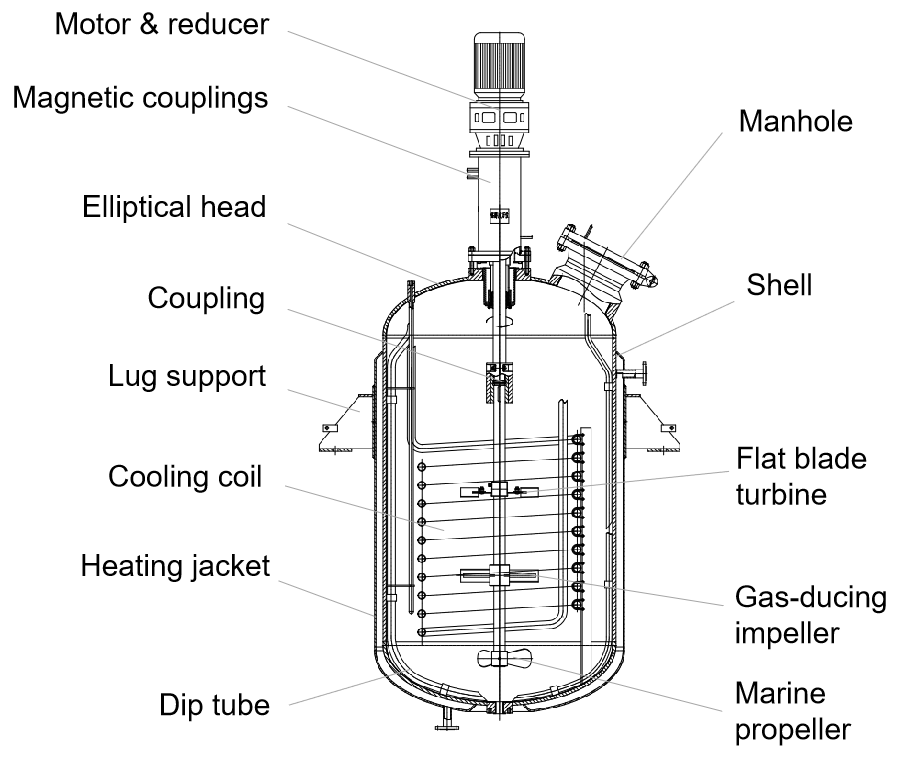

    Structure Drawings
