Sorbitol and Xylitol Pressure Reactor

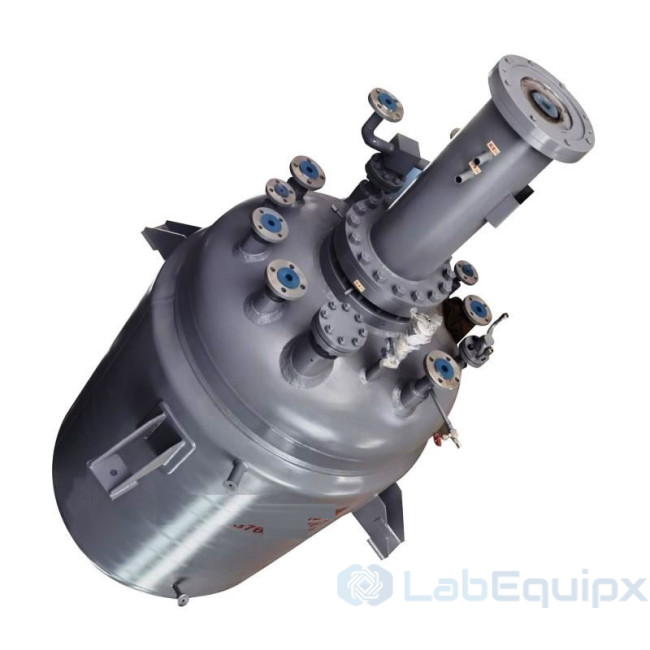

The Sorbitol and Xylitol Pressure Reactor (LESXPR) is an industrial catalytic hydrogenation reactor for sorbitol and xylitol production. Nominal volumes run from 1,000 L to 30 m3, covered by models LESXPR 1000 to 30000, with design pressure from -1 to 200 bar and design temperature from -196 to 350 °C. The agitator is sealed by a magnetic drive, which suits reactions with tight sealing requirements and toxic or explosive media.

How it works

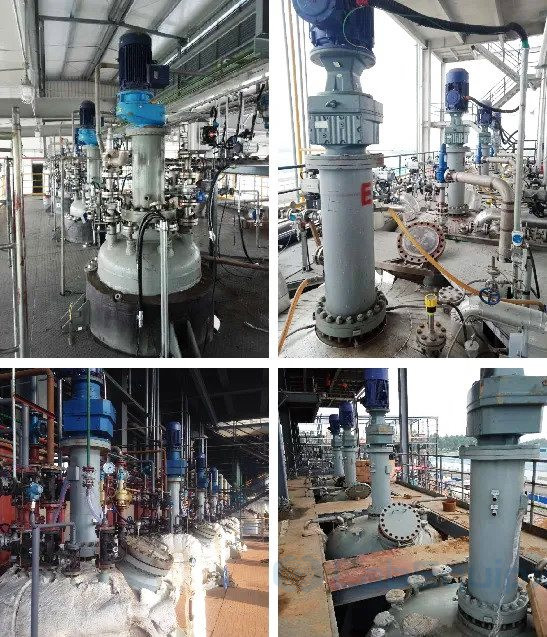

A magnetic coupling carries torque from the motor to the stirrer through a static seal, with no leakage. Couplings range from low to high torque. Motor power is 5.5 to 125 kW and stirring speed 200 to 400 rpm. The stirrer can be a flat blade turbine, a self-inducing impeller, a marine propeller or another type. Magnetic drives of this kind are applied to pressure reactions, reactions with noxious gases, potent pharmaceuticals and duties with zero leakage requirements.

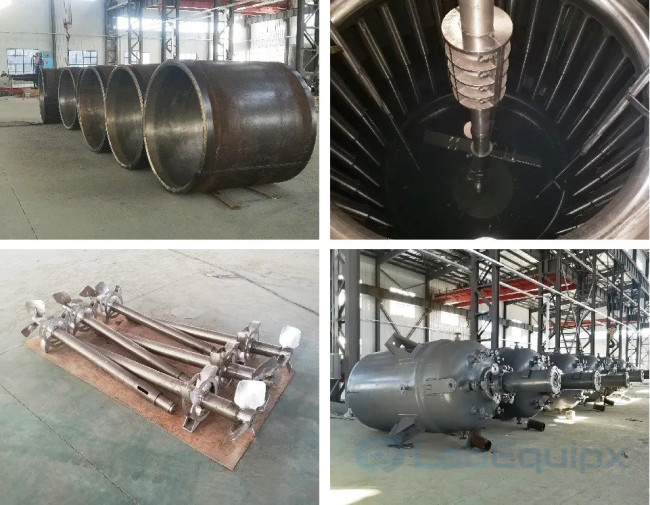

Heating is by oil electric heating, oil heating or steam, with heating power of 3 to 90 kW. Product discharges from the top or the bottom. Listed materials are SS304, SS316, titanium, nickel, Hastelloy B/C, Monel, zirconium and Inconel, and the table also lists carbon steel and lined construction. At high pressure, clad plate can be used: a base material for strength and a clad layer for corrosion resistance. Larger sizes are designed and confirmed to the customer's requirements.

What is included

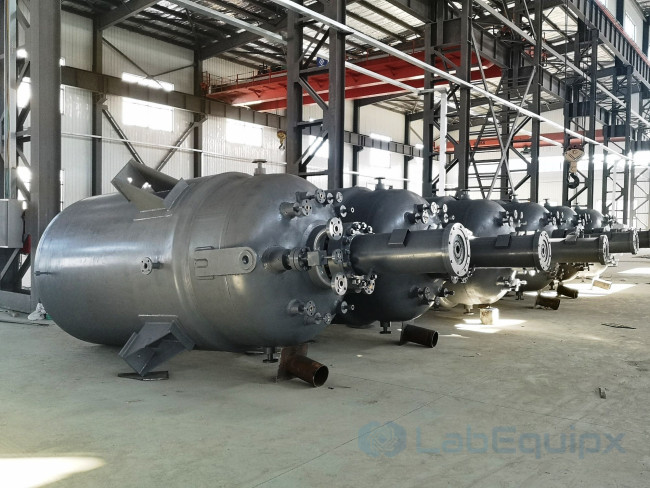

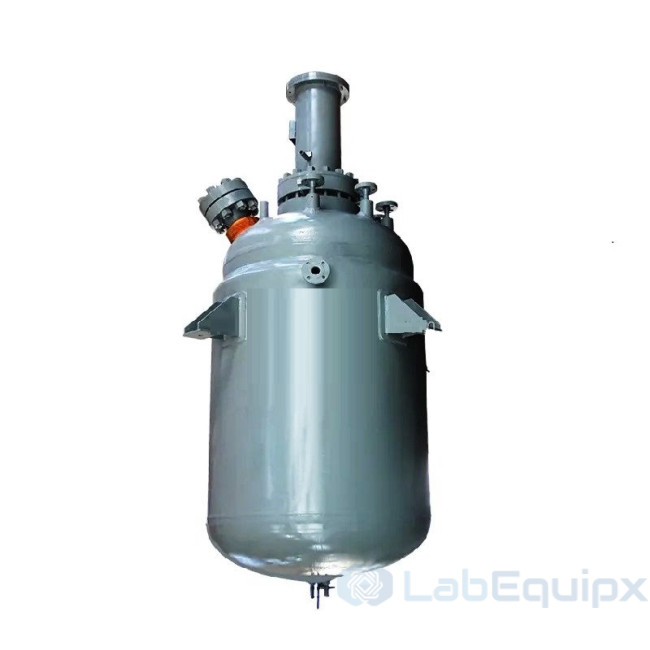

• Reactor vessel on lugs or floor stand legs
• Magnetic drive agitator with motor and the selected stirrer
• Heating system of the selected type
• Nozzles and internals per requirement: internal cooling coil, vent port, liquid or powder charging, dip tube, thermowell, flush bottom outlet, baffles, light and sight glass, handhole or manhole
• Safety rupture disc and pressure safety valve

Specify for your project

• Batch volume, 1,000 L to 30 m3 or larger
• Design pressure and temperature
• Wetted material, cladding or lining
• Stirrer type and speed, which set motor power
• Heating type and power, and cooling coil
• Discharge position and nozzle list

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Large scale production- max volume: 30m3.
• Max pressure: 200 bar; Max temperature up to 350 ℃.
• Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
• When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
• Low to high torque magnetic couplings: static seal with no leakage.
• Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
• Lugs or floor stand leg support.

Standard Specifications

Note: Larger size and specific data will be designed and confrimed according to your requires!
