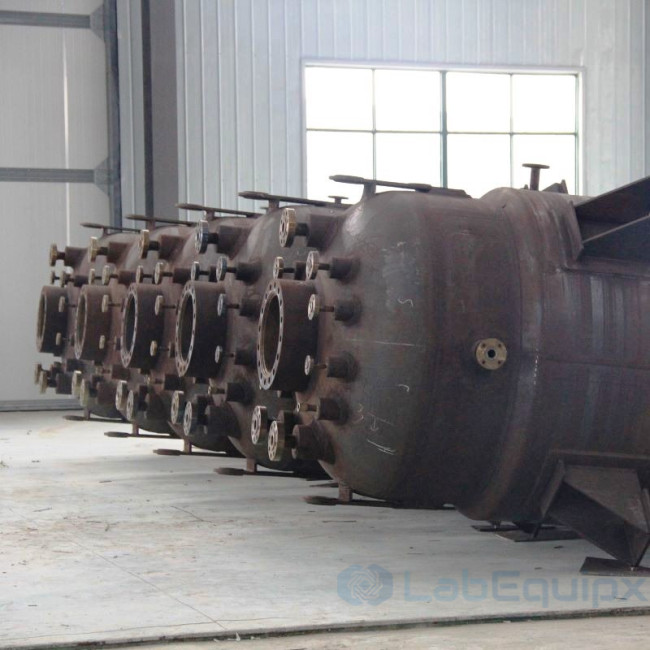

Industrial Magnetic Hydrogenator Reactor

  • Industrial Magnetic Hydrogenator Reactor LEIMHR - special equipment and ASME code U&U2 stamp certificate, which is qualified for ASME high pressure reactor manufacturing.

    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
    • Industrial Magnetic Hydrogenator Reactor
  • Features

    • Certification: ASME on request.
    • Large scale production- Maximum volume reach to 100m3
    • Max pressure: 200 bar; Max temperature up to 350 ℃
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
    • Nozzles, manual / automated valves, fittings, ex-proof control panel & accessories offered based on requirement.
    • Lugs or floor stand leg support.

    Technical Specifications

    Model LEIMHR 1000~100000
    Norminal volume
    1000L-100m3
    Material CS, SS, other alloy
    Working pressure -1~200 bar
    Working temp. -196~350℃
    Motor power

    5.5kW-125kW

    Stirring speed 200~400rpm
    Sealing method

    Magnetic seal

    Mechanical seal

    Stirrer

    Flat blade turbine

    Self-inducing impeller

    Marine propeller

    Head type

    Elliptical type

    Conical type

    Hemispherical type

    Flat type

    Heating type

    Oil electric heating

    Oil heating

    Steam heating

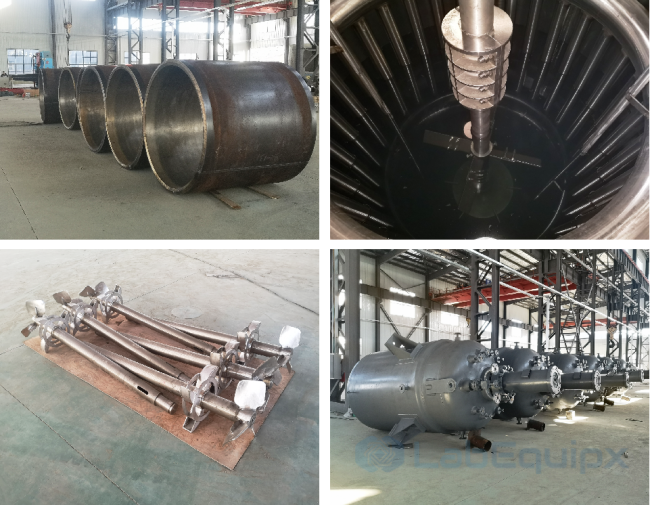

    Product Details

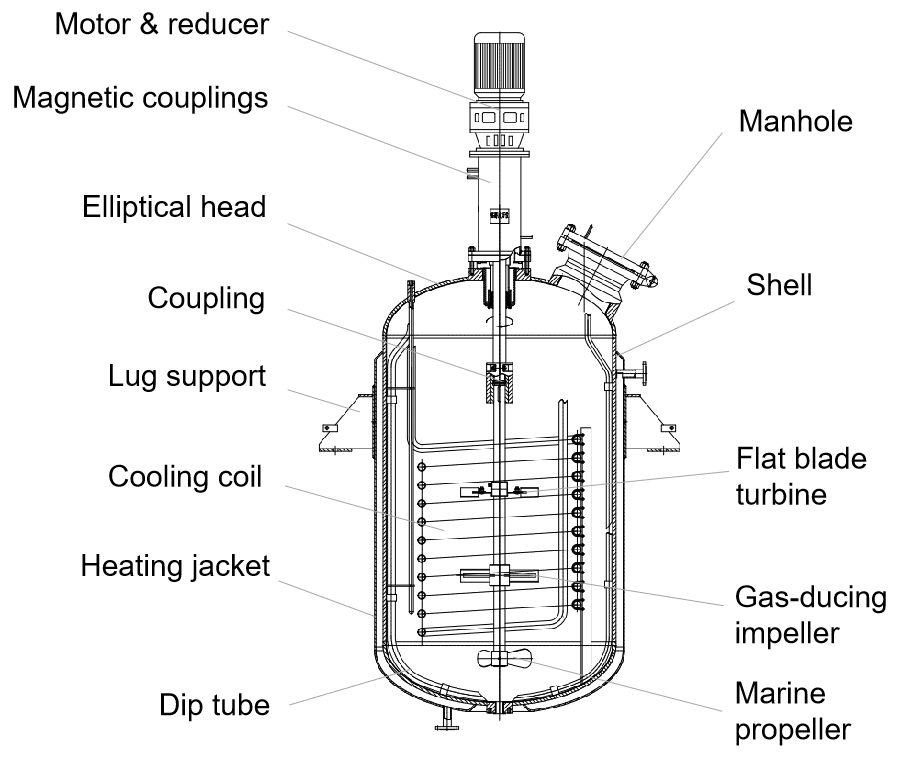

    Structure Drawings

    Industrial Magnetic Hydrogenator Reactor
