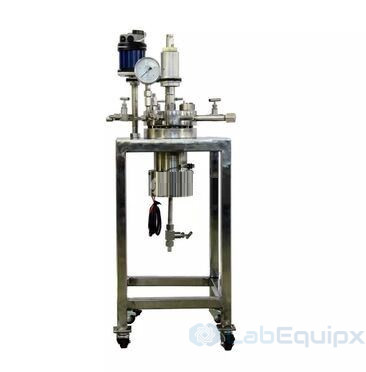

High Pressure PTFE Liner Lab Reactor
The High Pressure PTFE Liner Lab Reactor is a stirred batch vessel in stainless steel 304 or 316 fitted with a PTFE liner, for reactions under gas pressure and heat where the medium must not contact the steel wall. The liner is PTFE with an internal sprayed PTFE coating. The reference configuration is a 1.0 liter vessel rated -1 bar (full vacuum) to +100 bar and 20 °C to +150 °C. The model series LEHPPTFE-0.5 to LEHPPTFE-5 covers nominal capacities of 0.5, 1, 2, 3 and 5 liters at 10 MPa working pressure.
How it works
The vessel is fixed on a floor stand with movable wheels and closed by a flat cover lid on a bolted flange. Charging is from above. The stirrer, of propeller, paddle, anchor or customized type, runs through a magnetic coupling drive at 0 to 1500 rpm, so no dynamic seal sits on the shaft. Heating is electric, 1 to 4 kW depending on size, under PID control with ±1 °C temperature setting accuracy. Cooling is by an internal spiral coil. Motor power runs from 0.15 to 0.6 kW across the series.
The control panel displays temperature, time, heating voltage and stirring speed, with adjustment of temperature and speed. With the PTFE liner fitted, working temperature is 20 °C to +150 °C. Listed applications include hydrogenation, catalyst screening, polymerization, alkoxylation, ethoxylation, hydrocracking, dehydrogenation, oxidation, carboxylation and biojet fuel production.
What is included
- Pressure gauge and thermocouple
- Internal stirring system with magnetic coupling drive
- Liquid inlet and gas inlet with needle valves, gas release valve
- Dip tube, safety rupture disc and cooling coil
- Floor stand with movable wheels
Specify for your project
- Nominal capacity: 0.5, 1, 2, 3 or 5 liters
- Working pressure and temperature
- Reaction medium and its compatibility with the PTFE liner
- Stirrer type and speed range
- Application, for example hydrogenation, polymerization or catalyst screening
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Flat cover lid: Fixed
- Closure type: Flange type with bolts closure
- Shaft seal: Magnetic coupling drive Reactor vessel: Fixed
- Heating method: Electric heating
- Function: Floor stand with moveable wheels
- Control: PID temperature control.
- Reactor volume: 1.0 liter
- Pressure: -1 (FV) to +100 bar Temperature: 20 °C to +150 °C
- Material: Stainless steel 304/316+PTFE liner
- PTFE liner with internal sprayed PTFE
Specifications
Model No. LEHPPTFE-0.5 LEHPPTFE-1 LEHPPTFE-2 LEHPPTFE-3 LEHPPTFE-5 Nominal Capacity (L) 0.5 1 2 3 5 Working Pressure (MPa) 10 10 10 10 10 Working Temperature (℃) 150 150 150 150 150 Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 Motor power (kW) 0.15 0.2 0.2 0.2 0.6 Heating Power (kW) 1 2 2 3 4 Material SS304 or SS316 Heating Method General electric heating Cooling Method Internal spiral coils Charging Method Charging from above Stirring type Propeller, paddle type, anchor type or customized Control panel Temperature, time and heating voltage display
Temperature adjustment control, accuracy±1 ℃
Stirring speed display and controlStandard fittings Pressure Gage; Thermocouple; Internal Stirring System
Liquid inlet and gas inlet with needle valve;Gas Release Valve
Dip Tube; Safety Rupture Disc; Cooling Coil
