Miniature Mechanical Stirring High Pressure Reactor

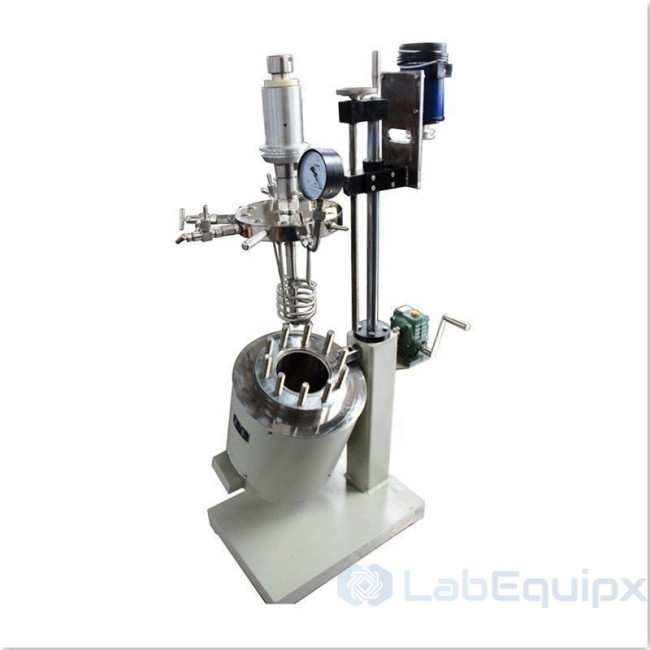

  • The LEMMSHPR miniature mechanical stirring high pressure reactor is a small stirred autoclave from 100 ml to 5 liters with a lift and tilt frame. The lid lifts and the vessel body flips over, so the reactor opens quickly and is easy to empty and clean. Research institutes, universities and industrial labs in petroleum, chemicals, medicine, dyes, mining and metallurgy use it for chemical reactions at high temperature and pressure.

    Design

    • Drive and seal: low to high torque magnetic coupling, static seal with no rotating shaft gland.
    • Head: movable head with quick opening and closing.
    • Pressure: design pressure 100 bar as standard, up to 350 bar.
    • Temperature: design temperature 350°C as standard, up to 500°C.
    • Material: SS304, SS316 or other alloys.
    • Heating: electric as standard. Thermal oil circulation and far infrared heating are optional.
    • Cooling: internal spiral coil.
    • Discharge: up discharge by pressure, or through a bottom valve.
    • Stirrer: propeller, paddle, anchor or custom, 0 to 1500 rpm.

    Control and data

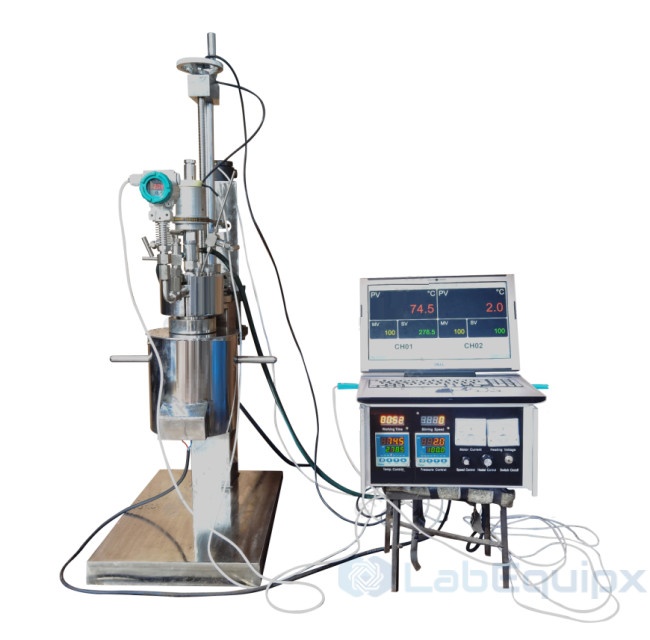

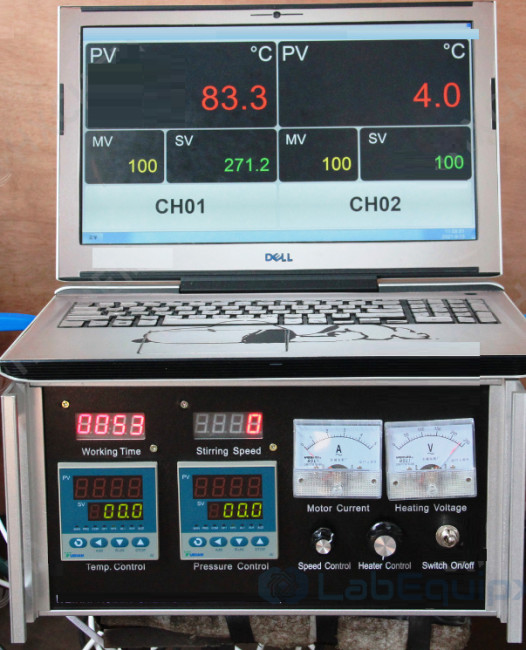

    The control panel displays and controls temperature with ± 1°C accuracy, and displays and controls stirring speed. An RS-485 interface sends temperature and pressure data to a computer. RS-485 resists electrical noise, covers long cable runs and supports several stations on one line.

    Ports and fittings

    One gas port with needle valve, one sampling and discharge port with dip tube and needle valve, pressure gauge, rupture disc, thermocouple, cooling coil and internal stirring system.

    Models

    ModelCapacityMotor powerHeating power
    LEMMSHPR-0.1100 ml150 W1 kW
    LEMMSHPR-0.25250 ml150 W1 kW
    LEMMSHPR-0.5500 ml150 W1 kW
    LEMMSHPR-11 liter0.2 kW2 kW
    LEMMSHPR-22 liters0.2 kW2 kW
    LEMMSHPR-55 liters0.6 kW4 kW

    Specify for your project

    • Capacity, 100 ml to 5 liters
    • Design pressure: 100 bar standard or higher, up to 350 bar
    • Design temperature: 350°C standard or higher, up to 500°C
    • Vessel material: SS304, SS316 or another alloy
    • Heating method and stirrer type

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Miniature Mechanical Stirring High Pressure Reactor
    • Miniature Mechanical Stirring High Pressure Reactor
    • Miniature Mechanical Stirring High Pressure Reactor
    • Miniature Mechanical Stirring High Pressure Reactor
  • Product features

    • This type of reactor is equiped with RS-485 interface which can transfer temperature and pressure data to computer
    • Lifting and tilting device for easy operation, low labor cost
    • Moveable head quick openning design
    • Low to high torque magnetic couplings: static seal with no leakage

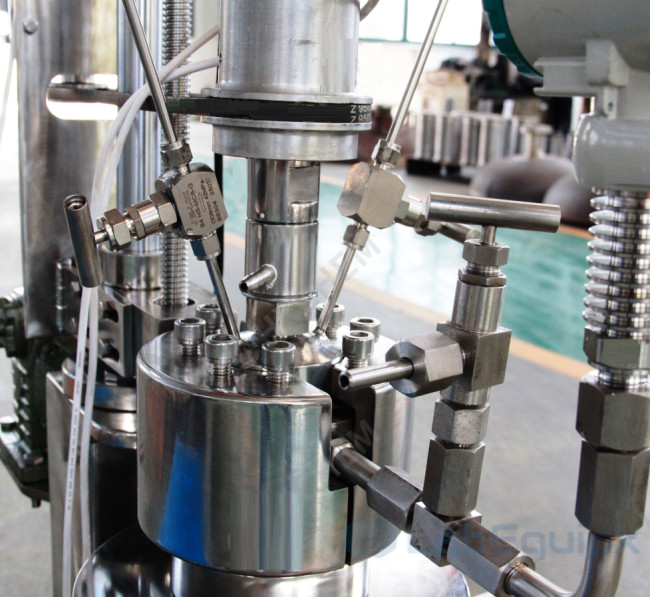

    • Opening port:1×gas port with needle valve;1×sampling/discharge port with dip tube and needle valve; 1×control system;1×pressure gauge;1×Rupture burst disc; 1×Termocouple
    • Heating type:Electric heating
    • Seal: Magnetic seal

    Quick opening

    • Easy operation and low labour cost
    • Quick open and closure
    • Safe and reliable

    Product parameters

    Model No. LEMMSHPR-0.1 LEMMSHPR-0.25 LEMMSHPR-0.5 LEMMSHPR-1 LEMMSHPR-2 LEMMSHPR-5
    Nominal Capacity 100 ml 250 ml 500 ml 1 liters 2 liters 5 liters
    Design Pressure Standard 100 bar; Maximum pressure up to 350 bar
    Material SS304; SS316 or other alloys
    Design Temperature Standard 350°C; Up to 500°C
    Stirring Speed 0-1500 rpm
    Motor Power 150 W 150 W 150 W 0.2 kW 0.2 kW 0.6 kW
    Heating Power 1 kW 1 kW 1 kW 2 kW 2 kW 4 kW
    Heating Method Standard Electric heating (Thermal oil recycling, far infrared heating optional)
    Cooling Method Internal spiral coils
    Charging Method Up discharge by pressure or discharge by bottom valve
    Stirring type Propeller, paddle type, anchor type or customized
    Control panel Temp, display and control, accuracy ± 1°C; Stirring speed display & control.
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve
    Dip Tube; Safety Rupture Disc; Cooling Coil
