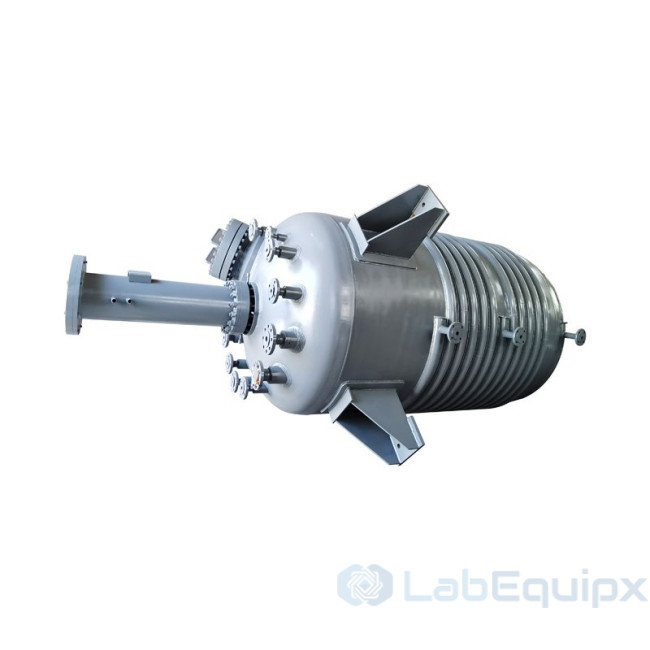

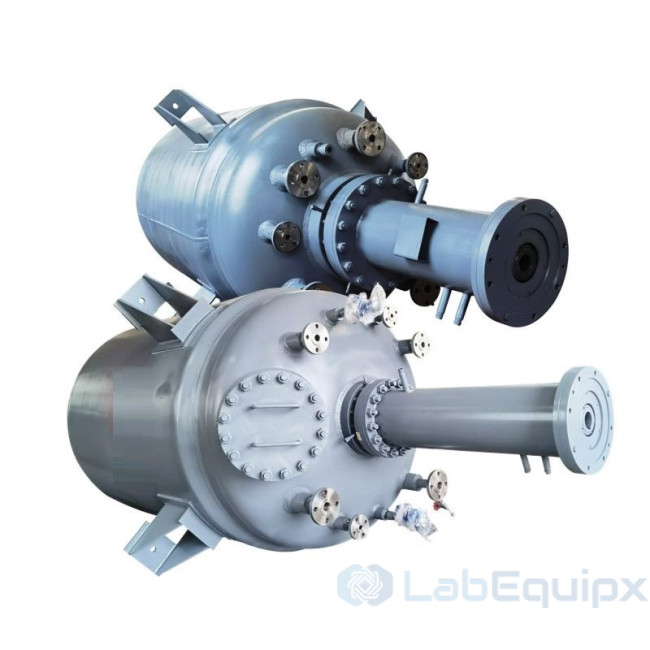

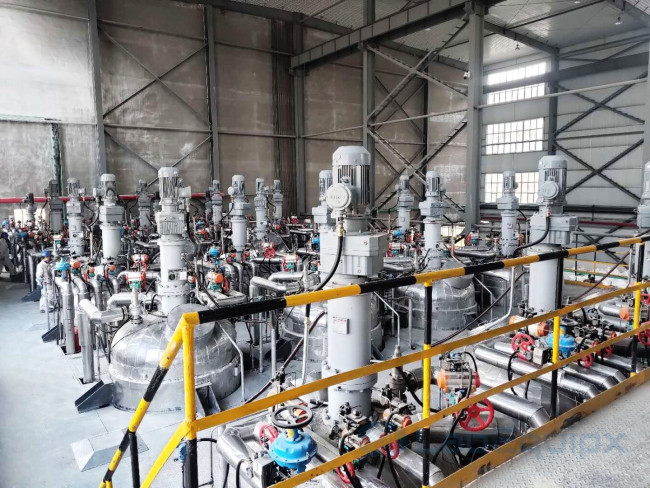

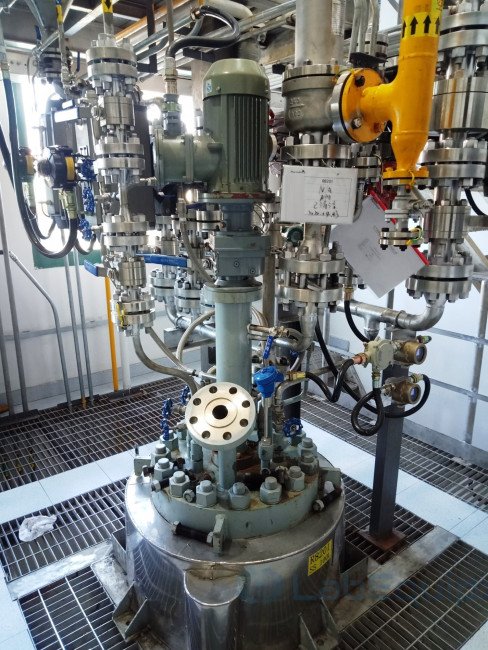

High Pressure Catalytic Hydrogenation Reactors for the Fine Chemicals

High Pressure Catalytic Hydrogenation Reactors for Fine Chemicals (series LEHPCHRFC) are industrial stirred pressure reactors built in volumes from 1,000 L to 80,000 L. Listed applications are oils and fats, fine chemicals, general chemicals, pharmaceuticals and hydrometallurgy.

How it works

Catalytic hydrogenation is usually a three-phase system: the solid catalyst is suspended in the liquid as a slurry and hydrogen is dispersed as gas bubbles. Mass transfer across the gas-liquid boundary, and hydrogen dispersion in particular, depends on the mixing system. The agitator is selected for the process: propeller, turbine, paddle, anchor, frame or helical ribbon impellers, driven at 0 to 1,200 rpm by a DC, DC servo or explosion-proof motor from 80 W to 125 kW through a magnetic or mechanical shaft seal.

Working pressure ranges from vacuum (-0.1 MPa) to 20 MPa and working temperature from -196 °C to 350 °C. Heating is by heat transfer oil, steam, electric, electromagnetic or far-infrared, at 3 to 90 kW. Charging is from the top and discharge from the bottom. Wetted parts are made from stainless steel 304, 316L, 310S or 321, duplex 2205, titanium, nickel, zirconium, nickel alloys C-276 and C-22, PTFE lining or clad plate. Internals (internal condenser, dip tube, thermowell, gas distributor, cleaning device, bottom bearing) and nozzles (manhole, liquid, gas and solid inlets, safety device, vent) are laid out per project. Overall height runs from 3,800 mm (1,000 L) to 9,100 mm (30,000 L); larger sizes are designed on request.

What is included

• Reactor vessel with agitator, drive motor and shaft seal
• Heating system of the selected type
• Internals and nozzles per the project list
• Optional peripherals: condenser, storage vessel, constant pressure feed tank, receiving tank, thin film evaporator, short path distillation unit

Specify for your project

• Working volume and batch size
• Working pressure and temperature within -0.1 to 20 MPa and -196 to 350 °C
• Process fluids and catalyst, to select the wetted material
• Mixing duty: impeller type, speed, motor rating, explosion-proof motor if required
• Heating medium available at site (oil, steam, electric)
• Nozzle schedule, internals and peripheral vessels

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Main Specification

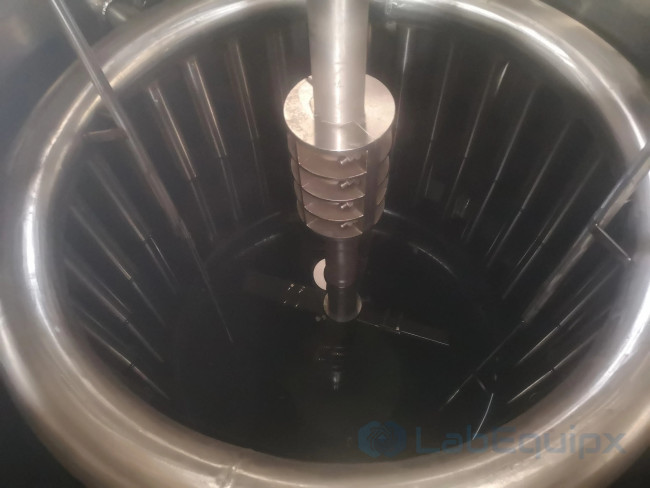

Internal Designing

Internal component design as per customer's requires, including:

• Internal condenser
• Agitator & impeller
• Dip tube
• Temperature measuring tube
• Various functional tube
• Cleaning device
• Bottom support & bearing
• Gas distributor
• Others

Customize for You

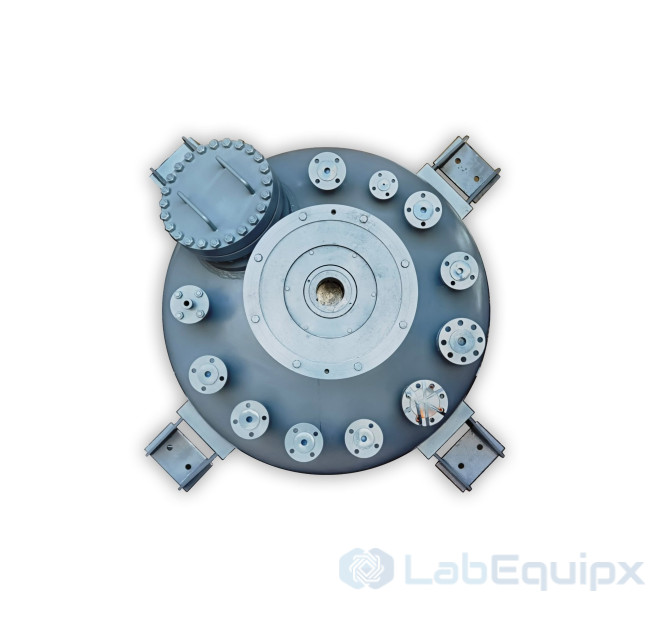

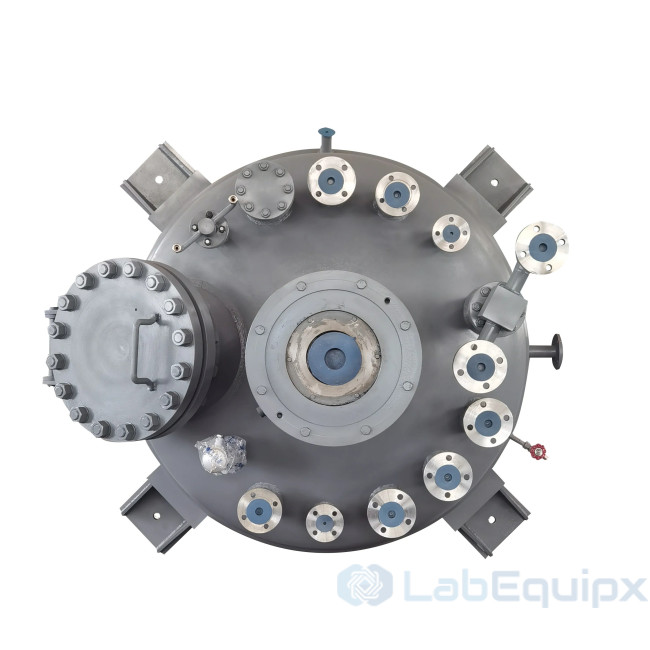

Reasonably customize the nozzle port and orientation, including: Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.

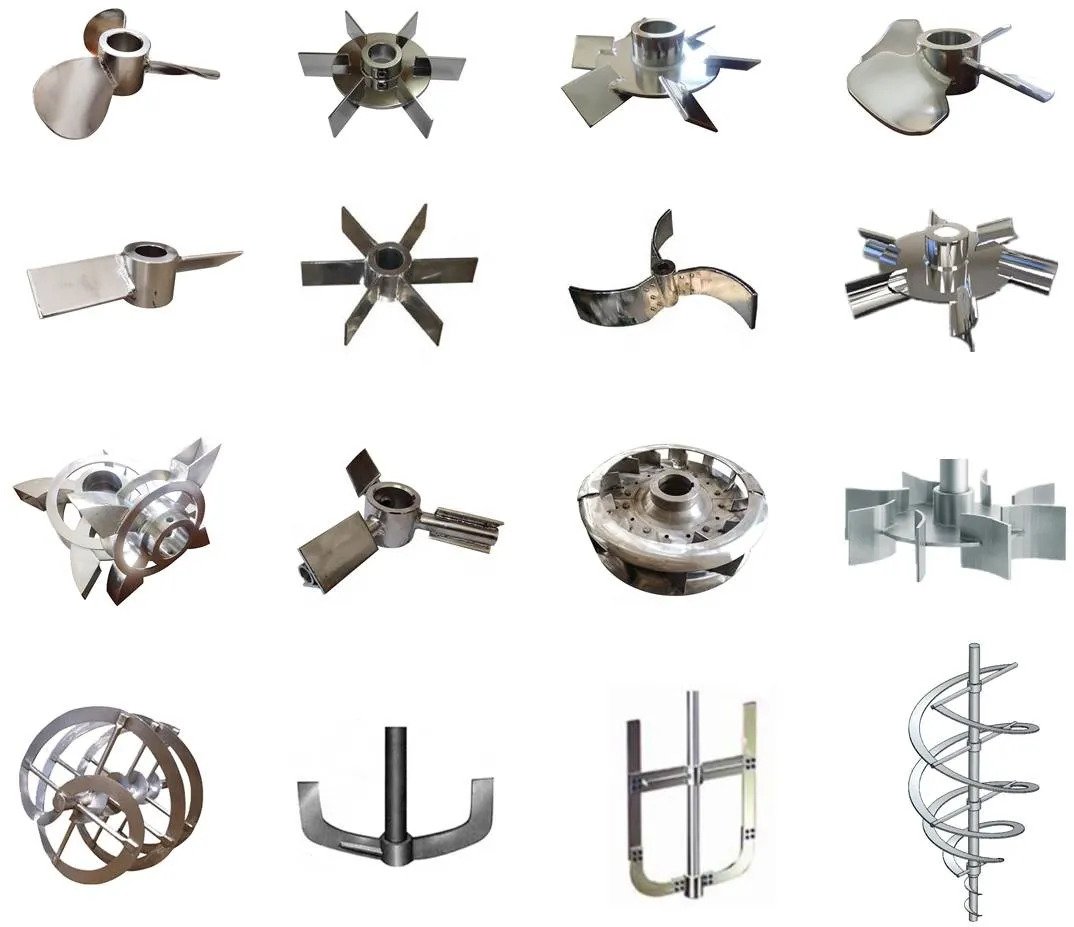

Agitator

• Different impeller type available for specific mixing mission.
• Special impeller design according to process condistions

Product Paramenters
