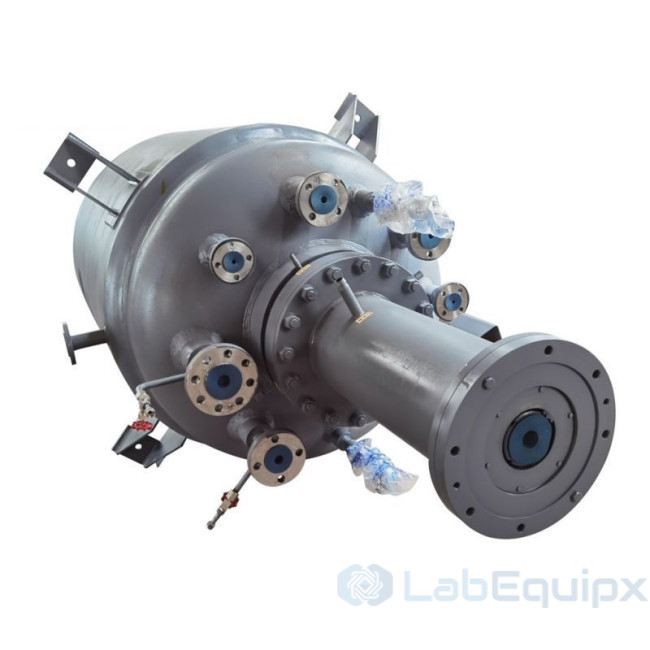

Alkali Fusion Reactor

  • The LEAFR is a stirred reactor series offered for alkali fusion processes, where the charge is mixed and heated under pressure in a closed vessel with corrosion resistant wetted parts. Standard sizes run from 1000 to 30000 L, and the materials list includes nickel, zirconium, titanium and Hastelloy C-276. Chemical plants use it for batch production with heating, stirring and pressure control in one vessel.

    Design

    The design range is -0.1 to 20 MPa and up to 350 °C; the lower temperature limit depends on the material and is on request. Melt temperature, alkali grade and wetted material for alkali fusion duty are defined for each project. Heating power is 3 to 90 kW by thermal oil, steam, electric, electromagnetic or far-infrared heating. The agitator turns at 0 to 1200 rpm and is custom built as propeller, turbine, paddle, anchor, frame or screw belt type. The shaft is sealed by a magnetic seal or a mechanical seal and driven by a DC motor, DC servomotor or explosion-proof motor. Charging is from the top, discharge from the bottom.

    Wetted materials

    • Stainless steel SUS304, SS316L, SS310S, 321
    • Duplex steel 2205
    • Titanium, nickel, zirconium
    • Hastelloy C-276 and C22
    • PTFE lining or clad plate

    Internals and nozzles

    Internals are built to the process: internal condenser, agitator and impeller, dip tube, temperature tube, cleaning device, bottom support and bearing, and gas distributor. Manhole, liquid, gas and solid inlets, safety devices and vents are placed per order. Accessories include condenser, storage vessel, constant pressure feed tank, receiving tank, thin film evaporator and short path distillation.

    Specify for your project

    • Volume, 1000 L and up
    • Melt or charge composition and maximum temperature
    • Wetted material
    • Heating method
    • Agitator type and seal
    ModelVolume, L
    LEAFR-10001000
    LEAFR-20002000
    LEAFR-30003000
    LEAFR-50005000
    LEAFR-60006000
    LEAFR-80008000
    LEAFR-1000010000
    LEAFR-1500015000
    LEAFR-2000020000
    LEAFR-2500025000
    LEAFR-3000030000

    Larger LEAFR sizes are designed on request.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Alkali Fusion Reactor
    • Alkali Fusion Reactor
    • Alkali Fusion Reactor
  • Main Specification

    TypeLEAFR 1000~30,000L
    Volume(L)1000~30,000L
    Working pressure(MPa)Negative pressure -0.1~20
    Working temperature(°C)Up to 350℃; lower limit depends on the material, on request
    Stirring speed(rpm)0~1200
    Motor power(KW)on request
    Heating power(KW)3~90
    Heating typeHeat oil heating, steam heating, Electric heating, Electromagnetic heating, far-infrared heating,
    Charging typeCharging from above, discharging from bottom
    Stirring typeCustomized propeller, turbine, paddle, anchor, frame, screw belt type. ...etc
    Seal typeMagnetic seal, mechanical seal
    MotorGeneral DC motor, DC servomotor or explosion-proof motor according to customers’ requirements.
    Construction materials(Wetted parts) Stainless steel SUS304, SS316L, SS310S, 321, duplex steel 2205, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate.
    Other AccessoriesCondenser, storage vessel, constant pressure feed tank, receiving tank, thin film evaporator&Short path (molecular) distillation.

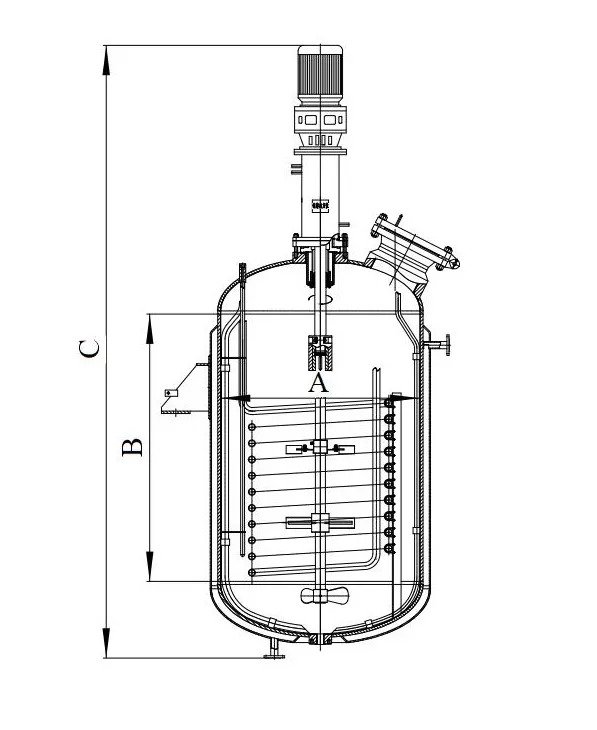

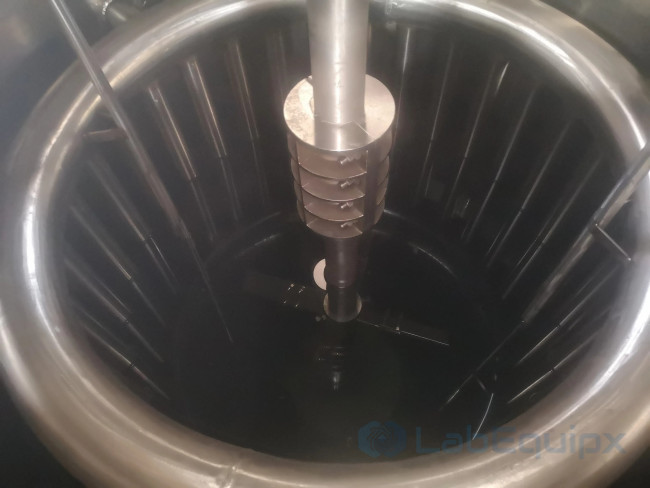

    Internal Designing

    Internal component design as per customer's requires, including:

    • Internal condenser
    • Agitator & impeller
    • Dip tube
    • Temperature measuring tube
    • Various functional tube
    • Cleaning device
    • Bottom support & bearing
    • Gas distributor
    • Others

    Customize for You

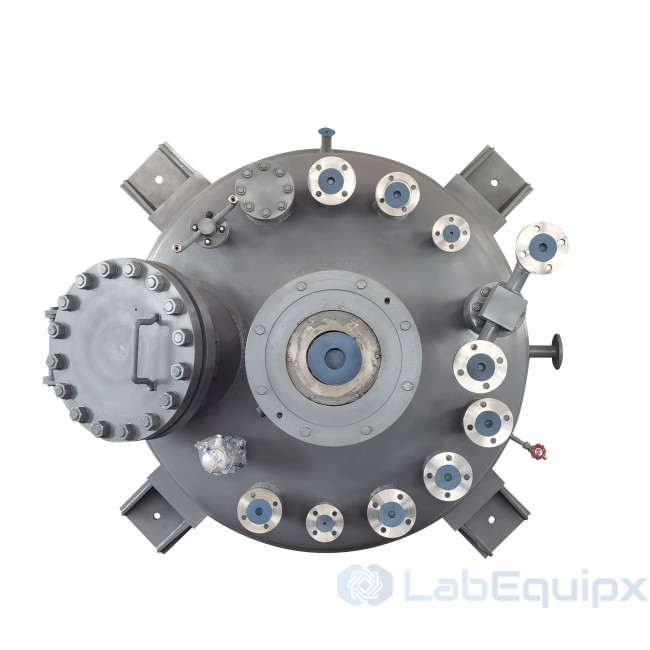

    Reasonably customize the nozzle port and orientation, including: Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.

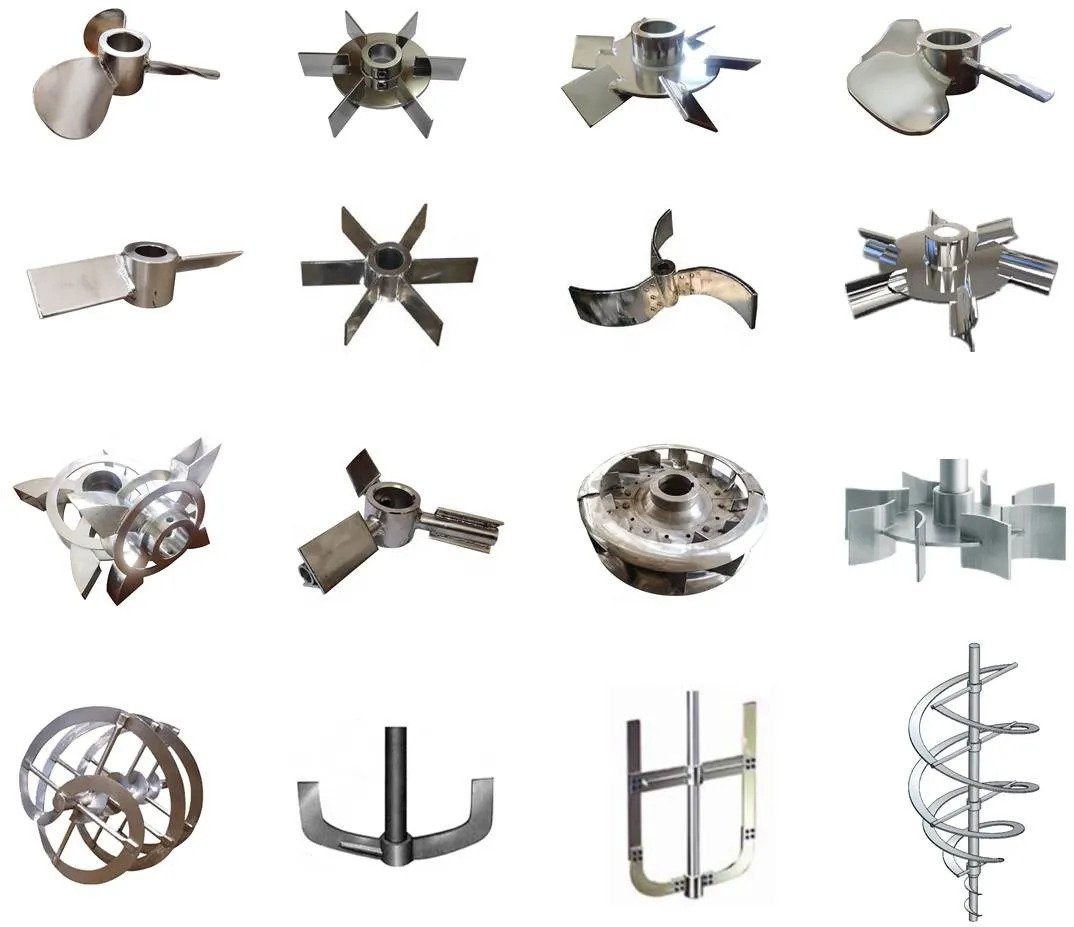

    Agitator

    • Different impeller type available for specific mixing mission
    • Special impeller design according to process condistions
    Alkali Fusion Reactor

    Product Paramenters

    Alkali Fusion Reactor
    Model No.Vol. (L)
    LEAFR-10001000
    LEAFR-20002000
    LEAFR-30003000
    LEAFR-50005000
    LEAFR-60006000
    LEAFR-80008000
    LEAFR-1000010000
    LEAFR-1500015000
    LEAFR-2000020000
    LEAFR-2500025000
    LEAFR-3000030000
    Note: Larger size and specific data will be designed and confrimed according to your requires!
