Industrial Scale Magnetic Stirred Pressure Reactor
Send a request
Industrial Scale Magnetic Stirred Pressure Reactor

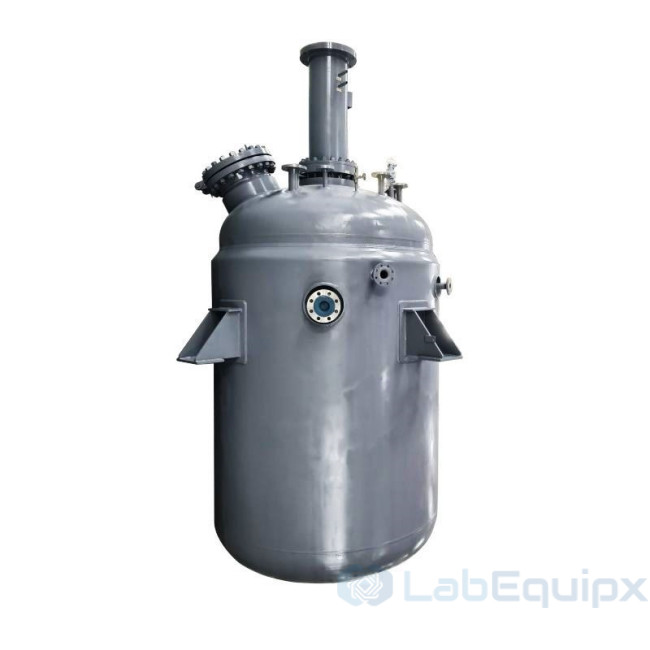

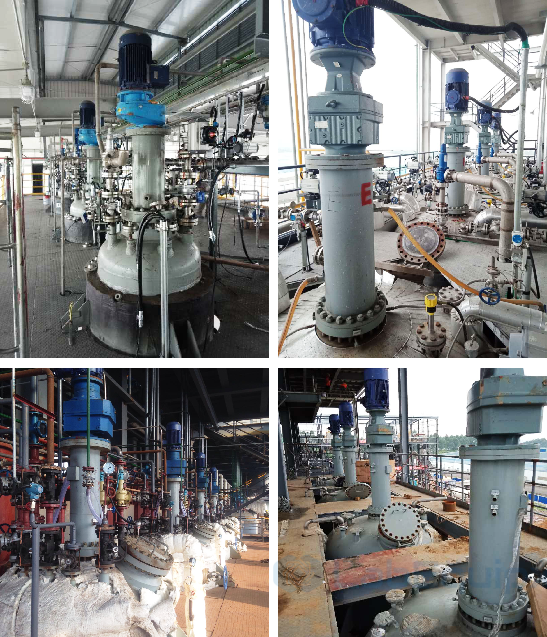

The LEISMSPR is a production-scale stirred pressure reactor with a magnetic seal drive, built for batch, continuous and long-campaign reactions. A typical build has double cooling and heating coils and a three-layer open turbine impeller for alkylation. Plants in petroleum, chemical, pharmaceutical, pesticide, food, dye and hydrometallurgy work use it, and the magnetic seal suits pressure reactions, noxious gases, potent pharmaceuticals and hydrogenation.
Design
Nominal volume starts at 1000 L and working pressure is -1 to 200 bar. A low to high torque magnetic coupling gives a static seal on the drive; a mechanical seal is the alternative. Motor power is 5.5 kW to 125 kW and stirring speed 200 to 400 rpm. Impellers are propeller, paddle, anchor or turbine, chosen for the mixing duty. Heads are elliptical, conical, hemispherical or flat. Heating is by oil electric heating, oil or steam, through a standard, half-pipe or limpet jacket. The vessel stands on lugs or a floor stand.
Standard materials are SS304, SS316, SS310S and SS321. SS304 and SS316 serve most organic systems. SS321 contains titanium for resistance to intercrystalline corrosion. SS310S has high creep strength for high temperature service. Hastelloy and clad plate are also offered. Clad construction uses a base plate of 6 to 200 mm for strength and a clad layer of 3 to 10 mm for corrosion resistance.
Fittings

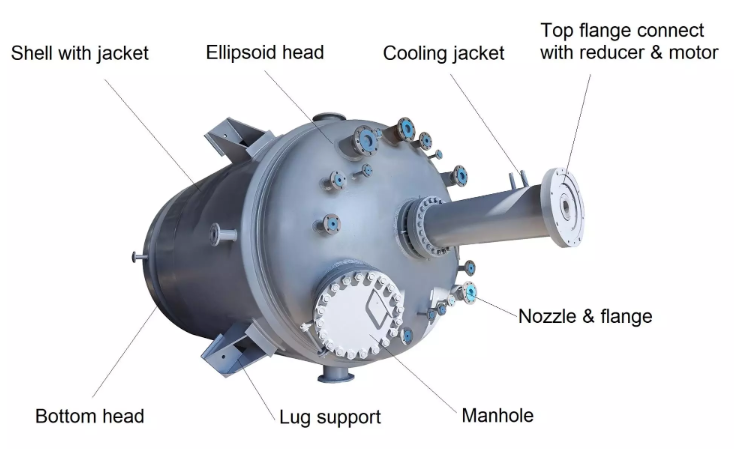

- Internal cooling coil, baffles and dip tube
- Vent port, liquid and powder charging
- Thermowell, safety rupture disc and pressure safety valve

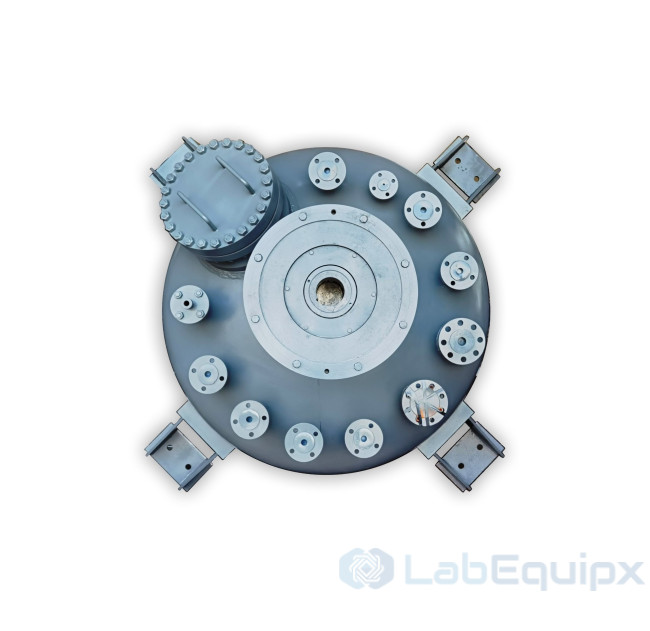

- Flush bottom outlet, light and sight glass, handhole or manhole
- Spiral, single layer or double layer tube condenser
Materials available
- Carbon steel: Q235R, Q345R, 15CrMoR, 16MnDR (low temperature steel)
- Austenitic stainless steel: 304/304L, 316/316L, 310S, 321
- Duplex stainless steel: S32205, S32507
- Titanium alloy: Gr1, Gr2, Gr3, Gr9, TA1, TA2, TA3, TA9, TC10
- Zirconium alloy: Zr-1, Zr-3, Zr4
- Nickel alloy: N6, Monel 400, Hastelloy C276, Hastelloy B-2, Incoloy 600
- Non-metallic: PTFE, PPL, PFA
Specify for your project
- Nominal volume
- Working pressure, -1 to 200 bar, and working temperature
- Wetted material or clad construction
- Seal type: magnetic or mechanical
- Impeller, heating jacket and nozzle list
LEISMSPR vessels are built to the process data in each order.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Large scale production: volume up to 80,000 L
- Max pressure: 200 bar; Working temperature: -196 to 350 ℃
- Standard materials: SS304, SS316, SS310S, SS321; Hastelloy or cladding plate available
- Cladding plates use a base material for strength and a clad material for corrosion resistance.
- Low to high torque magnetic couplings: static seal with no leakage.
- Acuurate Impeller selected for the mixing mission and requires.
- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- Nozzles, manual / automated valves, fittings, control panel & accessories offered based on requirement.
- Lugs or floor stand leg support.
SS304,SS316 are excellent material for use with most organic systems. At low temperatures it does offer useful resistance to dilute sulfuric, sulfurous, phosphoric and nitric acids, but not work at high temperatures and pressures. Stainless steel offer good resistance to ammonia and to most ammonia compounds, but chlorides can cause stress corrosion cracking-intercrystalline corrosion.
SS321 offer useful resistance to intercrystalline corrosion due to the addition of metallic titanium, which is also show high temperature strength than SS316.
SS310S is a high creep strength material because of the high ratio Ni and Cr,which is suitable for the high temperature application.
Hot sell Stainless steel chemical reactor can also set the following options:
- Magnetic and mechanical seal
- Various heating jacket: standard, half-pipe, limpet.
- Various impeller type available for mixing mission
- Various Anti-corrosion alloy material available
- Leg and lug support available
- Spiral, single layer or double layer tube condenser available
Standard Specifications
Model LEISMSPR 1000~80,000L Norminal volume 1000~80,000L Material SS304, SS316
SS310S, SS321
Working pressure -1~200 bar Working temp. -196~350℃ Motor power 5.5kW-125kW
Stirring speed 200~400rpm Sealing method Magnetic seal
Mechanical seal
Stirrer Porpeller;Paddle type;
Anchor type;Turbine type
Other as designed
Head type Elliptical type
Conical type
Hemispherical type
Flat type
Heating type Oil electric heating
Oil heating
Steam heating
Material Available
Available vessel materials:
Carbon steel
Q235R, Q345R, 15CrMoR,
16MnDR(Low temp. steel)
Austenitic stainless steel
304/304L, 316/316L, 310S, 321
Duplex stainless steel
S32205, S32507
Titanium alloy
Gr1, Gr2, Gr3, Gr9,
TA1, TA2, TA3, TA9, TC10
Zirconium alloy
Zr-1, Zr-3, Zr4
Nickel alloy
N6,Monel400, HastelloyC276,
HastelloyB-2; Incoloy600
Nonmetallic Materials
PTFE, PPL, PFA
Note: Cladding plates use a base material for strength and a clad material for corrosion resistance.
- Base Thickness:6-200mm
- Clad Thickness: 3-10mm
Product Details
Drawings
