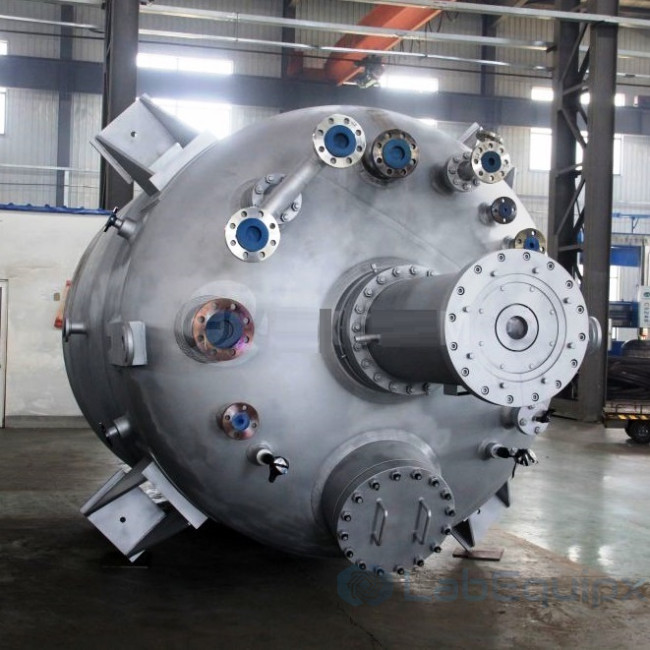

Xylitol/Sorbitol Hydrogenation Reactor

The Xylitol/Sorbitol Hydrogenation Reactor is an industrial-scale stirred pressure vessel for catalytic hydrogenation run as a three-phase slurry. The liquid carries a suspended solid catalyst, and hydrogen is present as dispersed bubbles. It belongs to the Coretest industrial reactor group for chemical production. The specification table lists total volume from 2,000 liters to 30 m³, design pressure of 60 to 150 bar and design temperature up to 250 °C.

How it works

The reaction crosses several phase boundaries, so gas-liquid mass transfer governs the rate and hydrogen dispersion is the main factor. The agitator is therefore a hollow shaft with a gas induction impeller, which draws hydrogen from the headspace and releases it as fine bubbles in the liquid. Gas hold-up and interfacial area rise, unreacted gas is recirculated, and the catalyst stays in uniform suspension. Stirring speed is 0 to 350 rpm.

The shaft is driven through a magnetic coupling, which gives a zero-leakage agitator seal. The motor is explosion-proof (DIICT4), 7.5 to 90 kW. An oil jacket heats the vessel; internal spiral coils or a cooling tube condenser remove heat. Listed jacket types are conventional (full), limpet coil or half-pipe, and dimpled. The closure seals with a spiral wound metallic gasket. Standard vessel material is SS304 or SS316. Solid or clad construction is listed in SS2205, SS321, C-276, nickel, titanium and zirconium, with explosive clad steel for corrosive high pressure duty. The magnetic drive range is listed to full vacuum and 200 bar.

What is included

• Jacketed pressure vessel with semi-elliptical, dished, hemispherical or flat heads
• Magnetic drive coupling, hollow shaft and gas induction impeller
• Explosion-proof drive motor
• Internal fittings selected per order: heating or cooling coils (tube or spiral), dip tube, temperature measuring tube and sensor, gas distributor or spargers, baffles

Specify for your project

• Total and working volume within the 2,000 liter to 30 m³ range
• Design pressure and design temperature
• Vessel material, solid or clad, for the feed and catalyst in use
• Jacket type, head type and internal fittings
• Motor power and hazardous area rating
• Heating medium supply and cooling duty

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

Gas Induction Tech.

• Higher gas Hold-up & mass transfer
• Fine dispersion of the hydrogen
• Large Gas-Liquid interfacial area
• Recirculation of the unused gas
• Uniform suspension of solid components (e.g., Catalyst)

Magnetic Couplings Driver

• 100% Sealing. Zero leakage. Low energy cost.
• Various model for volume: 100ml~50m3
• Long using life of bearings, less maintenance times
• Full vaccum/200 bar available;
• Cooling jacket set for high temperature application.

Internal Fittings Optional

• Internal heating/Cooling coils: Tube type or spiral coils;
• Dip tube & temperature measure tube;
• Shaft, Couplings & combined stirring paddle impeller;
• Gas distributor. spargers & baffles

Optional for Pressure Vessel

• Full Jacket/ Half-pipe jackets/ Dimpled jackets；
• Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
• Explosive Clad Steel for anti-corrosion high pressure conditions.

Specifications
