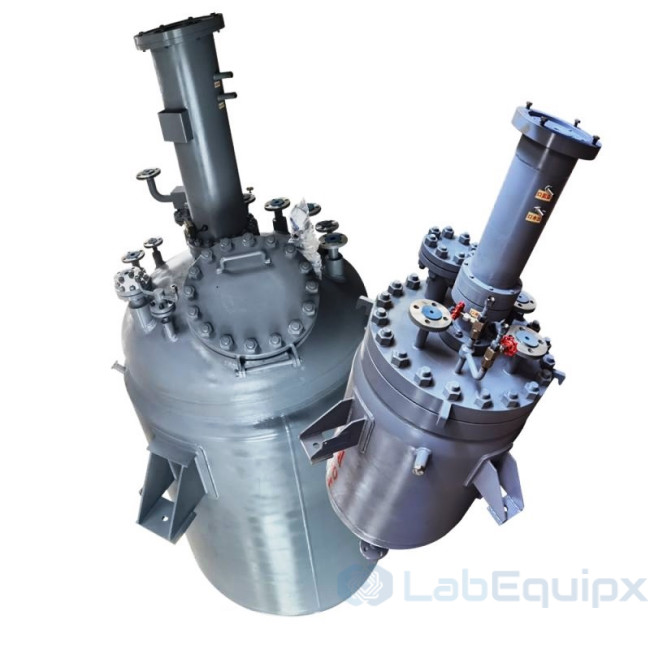

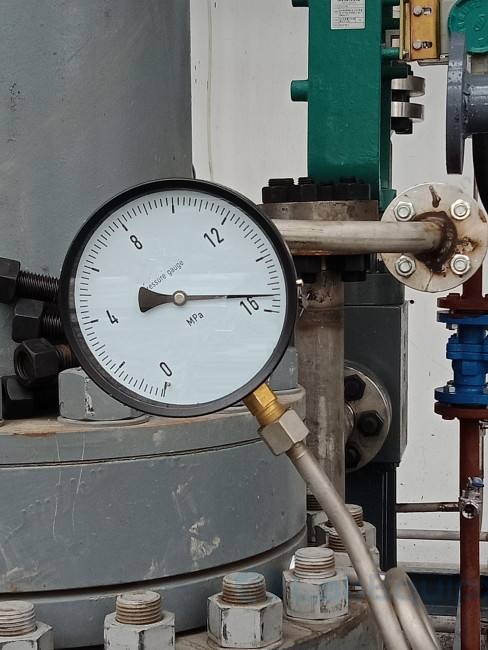

Stainless Steel Gas Induction Chlorination Reactor

  • The LESSGICR is a stainless steel stirred reactor with gas induction for chlorination, used to make heavy chemicals, specialty chemicals, pesticides and pharmaceuticals in inorganic and organic synthesis. Chlorine gas must be dispersed into the liquid phase and contained safely, so the reactor combines a gas inducing hollow shaft impeller with a magnetic drive that has no shaft packing. Sizes start at 100 ml.

    Design

    The standard vessel is SS304 or SS316, in solid or clad construction, for dry (moisture-free) chlorination media. With moisture present or other corrosive media, the wetted material is selected for the specific medium; for example SS2205, SS321, C-276, nickel, titanium or zirconium are available, and explosive clad steel is offered for corrosive high pressure conditions. The vessel is rated for full vacuum, and design temperature is up to 350 °C. Gaskets are spiral wound metallic type.

    How it works

    The hollow shaft impeller pulls gas from the headspace and disperses it into the liquid, giving high gas hold-up and a large gas-liquid interfacial area. Unused gas recirculates through the shaft rather than venting, and catalyst or other solids stay in suspension. Drive is through magnetic couplings and a motor sized to the vessel volume, at up to 350 rpm; explosion protection marking on request.

    Heating and cooling

    • Heating by steam, oil or electric heating
    • Cooling by internal spiral coils or a cooling tube condenser
    • Conventional, limpet coil or half pipe jacket; cooling jacket for high temperature work

    Options

    • Full jacket, half-pipe jacket or dimpled jacket
    • Semi-elliptical, dished, hemispherical or flat head
    • Internal heating or cooling coils, tube or spiral type
    • Dip tube and temperature tube
    • Gas distributor, spargers and baffles

    Specify for your project

    • Total volume
    • Design pressure and temperature
    • Wetted material for the chlorination medium
    • Gas feed and off-gas handling
    • Internal fittings: sensor, dip tube, baffles, coils, gas distributor

    LESSGICR data and specifications are adapted to each process.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Stainless Steel Gas Induction Chlorination Reactor
    • Stainless Steel Gas Induction Chlorination Reactor
  • Features

    Gas Induction Tech

    • Higher gas Hold-up & mass transfer
    • Fine dispersion of the gas
    • Large Gas-Liquid interfacial area
    • Recirculation of the unused gas
    • Uniform suspension of solid components (e.g., Catalyst)

    Magnetic Couplings Driver

    • Volume: 100 ml to 20000 liters
    • Long using life of bearings, less maintenance times
    • Design pressure up to 350 bar;
    • Cooling jacket set for high temperature application.

    Internal Fittings Optional

    • Internal heating/Cooling coils: Tube type or spiral coils;
    • Dip tube & temperature measure tube;
    • Shaft, Couplings & combined stirring paddle impeller;
    • Gas distributor. spargers & baffles

    Optional for Pressure Vessel

    • Full Jacket/ Half-pipe jackets/ Dimpled jackets;
    • Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat;
    • Explosive Clad Steel for anti-corrosion high pressure conditions.

    Specifications

    Model LESSGICR 100ml~20000L
    Total volume 100ml-20000liters
    Design pressure maximum up to 350bar
    Design temperature Up to 350℃
    Vessel material Standard SS304/SS316/Solid or clad steel (dry chlorination media; other media on request)
    SS2205, SS321, C-276, nickel, titanium, zirconium
    Motor Motor power by vessel volume, on request; explosion protection marking on request
    Stirring speed 0~350rpm
    Heating method Steam/ Oil/ Electric
    Cooling method Internal spiral coils or cooling tube condenser
    Jacket type Conventional/ Limpet coil/ half pipe
    Agitator sealing Magnetic drive couplings
    Stirring type Hollow shaft with gas induction impeller
    Gasket Spiral wound metallic gasket
    Internal fittings Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor
    Note: The data and specification can be change and customize as the requirements
