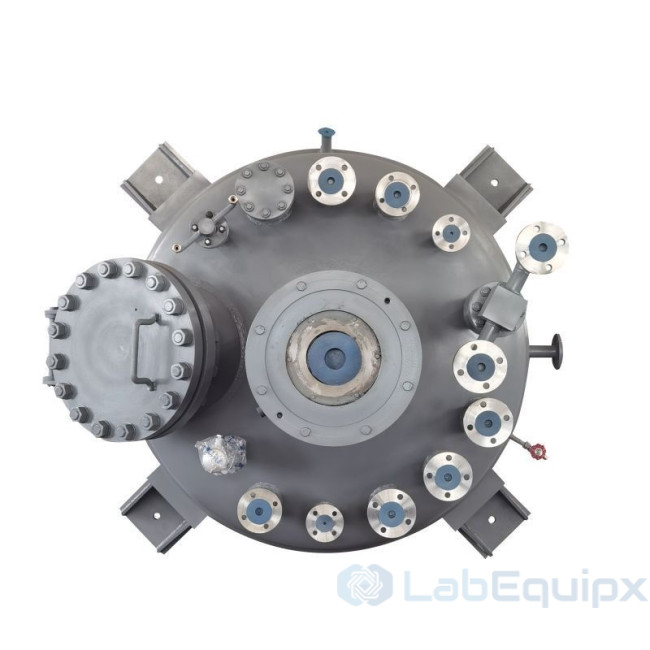

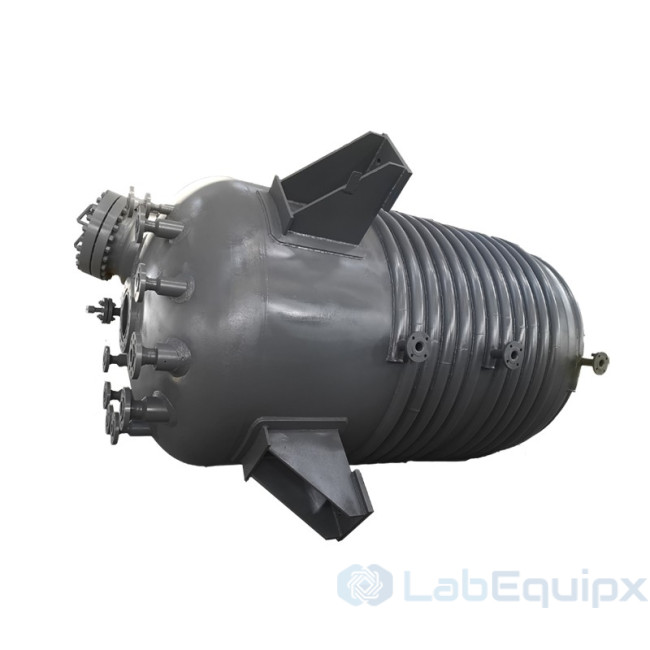

Pure Nickel Stirred Pressure Reactors

  • The LEPNSPR is a stirred pressure reactor with wetted parts in pure nickel, Nickel-6 (Ni6, over 99.5% nickel). Nickel resists reducing, oxidizing and neutral conditions and has outstanding resistance to caustic alkalis at high temperature. Producers use it for H acid manufacture and alkali melting processes.

    Design

    Nominal volume runs from 1000 L to 100 m3, with working pressure -1 to 200 bar and working temperature 0 to 300 °C. A low to high torque magnetic coupling gives a static seal with no shaft leakage; a mechanical seal is the alternative. Motor power is 5.5 kW to 125 kW and stirring speed 200 to 400 rpm. The impeller (propeller, paddle, anchor, turbine or a custom design) is chosen for the mixing duty. Heads are elliptical, conical, hemispherical or flat. Heating is by oil electric heating, oil or steam. The vessel stands on lugs or a floor stand.

    Nickel clad plate reduces cost on large or high pressure vessels: the base plate carries the load and the nickel layer faces the process. In clad construction the base plate, 6 to 200 mm thick, carries the pressure and the clad layer, 3 to 10 mm thick, resists corrosion.

    Typical applications

    • H acid production
    • Alkali melting (alkali fusion) processes
    • Hot caustic alkali service

    Fittings

    • Internal cooling coil, baffles, dip tube and thermowell
    • Vent port, liquid and powder charging
    • Safety rupture disc and pressure safety valve
    • Flush bottom outlet, light and sight glass, handhole or manhole
    • Nozzles, manual or automated valves, fittings and control panel per requirement

    Specify for your project

    • Nominal volume, 1000 L to 100 m3
    • Working pressure and temperature, up to 200 bar and 300 °C
    • Solid Ni6 or nickel clad construction
    • Caustic concentration and temperature
    • Seal type, impeller and heating method

    The LEPNSPR listing shows a 1000 L reference model.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Pure Nickel Stirred Pressure Reactors
    • Pure Nickel Stirred Pressure Reactors
    • Pure Nickel Stirred Pressure Reactors
    • Pure Nickel Stirred Pressure Reactors
  • Features

    • Large scale production- maximum volume reach to 100m3
    • Max pressure: 200 bar; Max temperature up to 300 ℃
    • Material: Nickel-6(Ni6)
    • When cladding plates be considered, including base material for strength and clad material for anti-corrosion. Reduce costs for you!
    • Low to high torque magnetic couplings: static seal with no leakage.
    • Accurate Impeller selected for the mixing mission and requires.
    • Internal cooling coil, vent port, liquid/powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole/manhole, etc.
    • Nozzles, manual / automated valves, fittings, control panel & accessories offered based on requirement.
    • Lugs or floor stand leg support.

    Technical Specifications

    Model LEPNSPR 1000L
    Norminal volume
    1000liters-100m3
    Material

    Nickel

    Working pressure -1~200 bar
    Working temp. 0~300℃
    Motor power

    5.5kW-125kW

    Stirring speed 200~400rpm
    Sealing method

    Magnetic seal

    Mechanical seal

    Stirrer

    Porpeller;Paddle type;

    Anchor type;Turbine type

    Other as designed

    Head type

    Elliptical type

    Conical type

    Hemispherical type

    Flat type

    Heating type

    Oil electric heating

    Oil heating

    Steam heating

    Material Available

    Carbon steel

    Q235R, Q345R, 15CrMoR,

    16MnDR(Low temp. steel)

    Austenitic stainless steel

    304/304L, 316/316L, 310S, 321

    Duplex stainless steel

    S32205, S32507

    Titanium alloy

    Gr1, Gr2, Gr3, Gr9,

    TA1, TA2, TA3, TA9, TC10

    Zirconium alloy

    Zr-1, Zr-3, Zr4

    Nickel alloy

    N6,Monel400, HastelloyC276,

    HastelloyB-2; Incoloy600

    Nonmetallic Materials

    PTFE, PPL, PFA

    Note: If the vessel thickness exceeds 16mm, cladding plates could be considered, base material used for strength and clad material used for anti-corrosion function.

    • Base Thickness:6-200mm;
    • Clad Thickness: 3-10mm.

    Product Details

    Structure Drawings
