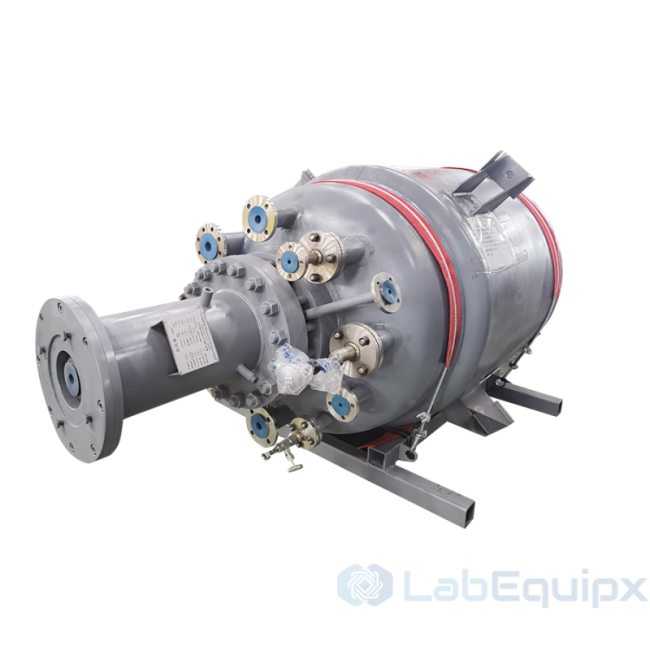

Jacketed Chemical Alkoxylation Reactor LEJCAR

Jacketed Chemical Alkoxylation Reactor LEJCAR - alkoxylation Technology (Ethoxylation/Propoxylation), conventional stirred reactor technology is still the right solution for applications where it is necessary to carry out alkoxylation reaction on viscous liquids or on slurries with high solid content.

Features

Gas Induction Tech.

Higher gas Hold-up & mass transfer
Fine dispersion of the hydrogen
Large Gas-Liquid interfacial area
Recirculation of the unused gas
Uniform suspension of solid components (e.g., Catalyst)

Magnetic Couplings Driver

100% Sealing. Zero leakage. Low energy cost.
Various model for volume: 100ml~50m3
Long using life of bearings, less maintenance times
Full vaccum/200 bar available;
Cooling jacket set for high temperature application.

Internal Fittings Optional

Internal heating/Cooling coils: Tube type or spiral coils;
Dip tube & temperature measure tube;
Shaft, Couplings & combined stirring paddle impeller;
Gas distributor. spargers & baffles

Optional for Pressure Vessel

Full Jacket/ Half-pipe jackets/ Dimpled jackets；
Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
Explosive Clad Steel for anti-corrosion high pressure conditions.

Specifications

Model	LEJCAR 1000L
Total volume	1000liters
Design pressure	maximum up to 350bar
Design temperature	Up to 350℃
Vessel material	Standard SS304/SS316/Solid or clad steel
Vessel material	SS2205, SS321, C-276, nickel, titanium, zirconium
Motor	Explosion-proof DIICT4/ 7.5-90kW
Stirring speed	0~350rpm
Heating method	Steam/ Oil/ Electric
Cooling method	Internal spiral coils or cooling tube condenser
Jacket type	Conventional/ Limpet coil/ half pipe
Agitator sealing	Zero leakage magnetic drive couplings
Stirring type	Hollow shaft with gas induction impeller
Gasket	Spiral wound metallic gasket
Internal fittings	Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor
Note: The data and specification can be change and customize as the requirements

Model	LEJCAR
Brand	LabEquipx
