Industrial Chemical Pressure Catalytic Oxidation Reactor

  • The LEICPCOR is a gas induction stirred reactor for catalytic oxidation, where organic compounds are oxidized by oxygen from air over a catalyst. The main hazard in this chemistry is that combustion is the most favored reaction between oxygen and hydrocarbons, so vessel design, sealing and temperature control matter as much as mixing. Chemical producers use the LEICPCOR from laboratory size (100 ml) up to production vessels.

    How it works

    A gas induction impeller on a hollow shaft draws gas from the headspace down the shaft and disperses it into the liquid. Unreacted gas is recirculated, gas hold-up and the gas-liquid interfacial area are high, and solid catalyst stays in uniform suspension. The shaft is driven through a magnetic coupling, so there is no dynamic shaft seal, and the vessel is rated for full vacuum. Joints use spiral wound metallic gaskets.

    Design

    Design temperature is up to 350 °C, with a cooling jacket for high temperature work. Heating is by steam, oil or electric heating; cooling is by internal spiral coils or a cooling tube condenser. Motor power depends on the vessel volume and is confirmed for each project, with explosion protection marking on request; stirring speed is up to 350 rpm. Jackets are conventional, limpet coil or half pipe. Standard vessel material is SS304 or SS316, solid or clad; SS2205, SS321, C-276, nickel, titanium and zirconium are available. Explosive clad steel is offered for corrosive high pressure service.

    Options

    • Full jacket, half-pipe jacket or dimpled jacket
    • Semi-elliptical, dished, hemispherical or flat head
    • Internal heating or cooling coils, tube or spiral type
    • Dip tube and temperature tube
    • Gas distributor, spargers and baffles

    Specify for your project

    • Total volume, from 100 ml
    • Design pressure and design temperature, up to 350 °C
    • Oxidant: air or oxygen, and gas flow
    • Vessel material and cladding
    • Heating and cooling method

    LEICPCOR data and specifications are adapted to each process.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

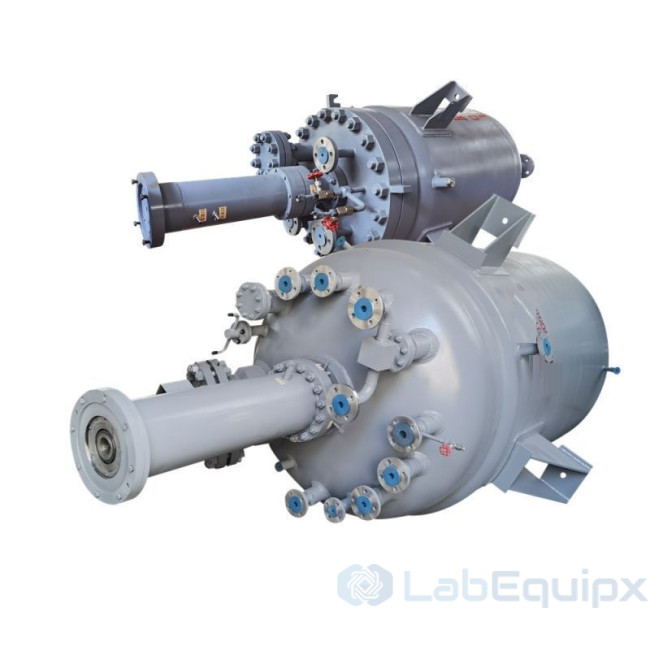

    • Industrial Chemical Pressure Catalytic Oxidation Reactor

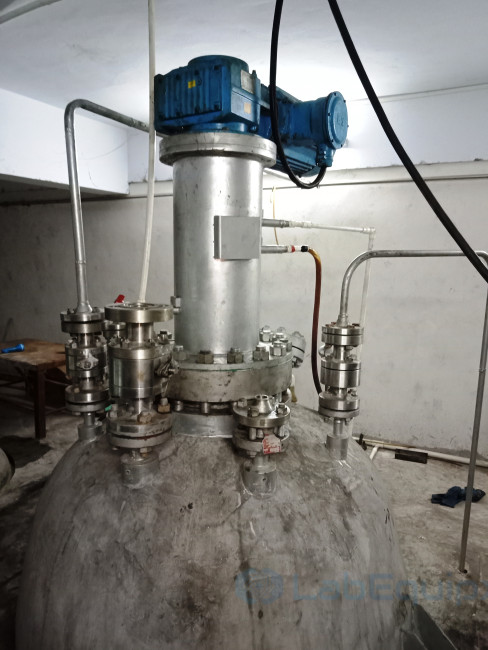

    • Industrial Chemical Pressure Catalytic Oxidation Reactor
  • Features

    Gas Induction Tech.

    • Higher gas Hold-up & mass transfer
    • Fine dispersion of the gas
    • Large Gas-Liquid interfacial area
    • Recirculation of the unused gas
    • Uniform suspension of solid components (e.g., Catalyst)

    Magnetic Couplings Driver

    • Volume: 100 ml to 20000 liters
    • Long using life of bearings, less maintenance times
    • Design pressure up to 350 bar;
    • Cooling jacket set for high temperature application.

    Internal Fittings Optional

    • Internal heating/Cooling coils: Tube type or spiral coils;
    • Dip tube & temperature measure tube;
    • Shaft, Couplings & combined stirring paddle impeller;
    • Gas distributor. spargers & baffles

    Optional for Pressure Vessel

    • Full Jacket/ Half-pipe jackets/ Dimpled jackets;
    • Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat;
    • Explosive Clad Steel for anti-corrosion high pressure conditions.

    Specification

    Model LEICPCOR 100ml~20000L
    Total volume 100ml-20000liters
    Design pressure maximum up to 350bar
    Design temperature Up to 350℃
    Vessel material Standard SS304/SS316/Solid or clad steel
    SS2205, SS321, C-276, nickel, titanium, zirconium
    Motor Motor power by vessel volume, on request; explosion protection marking on request
    Stirring speed 0~350rpm
    Heating method Steam/ Oil/ Electric
    Cooling method Internal spiral coils or cooling tube condenser
    Jacket type Conventional/ Limpet coil/ half pipe
    Agitator sealing Magnetic drive couplings
    Stirring type Hollow shaft with gas induction impeller
    Gasket Spiral wound metallic gasket
    Internal fittings Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor
    Note: The data and specification can be change and customize as the requirements
