Hastelloy C276 alloy Industrial Scale Pressure Reactor

  • The LEHC276AISPR is an industrial stirred pressure reactor with wetted parts in Hastelloy C276 or Hastelloy B-2. Hastelloy C276 resists oxidizing salts, hypochlorite, and both oxidizing and non-oxidizing acids, with very good resistance to stress corrosion cracking and localized attack. Hastelloy B-2 is the choice for non-oxidizing acids such as hydrochloric and sulfuric acid. Like other nickel alloys, both are ductile and easy to form and weld.

    Design

    Nominal volume runs from 1000 L to 100 m3, with working pressure -1 to 200 bar and working temperature 0 to 300 °C. A low to high torque magnetic coupling gives a static seal; a mechanical seal is the alternative. Motor power is 5.5 kW to 125 kW and stirring speed 200 to 400 rpm. The impeller (propeller, paddle, anchor, turbine or a custom design) is chosen for the mixing duty. Heads are elliptical, conical, hemispherical or flat. Heating is by oil electric heating, oil or steam. The vessel stands on lugs or a floor stand.

    Hastelloy or clad plate is used. In clad construction the base plate, 6 to 200 mm thick, carries the pressure and the clad layer, 3 to 10 mm thick, resists corrosion. Clad plate is considered for thick vessel walls.

    Fittings

    • Internal cooling coil, baffles, dip tube and thermowell
    • Vent port, liquid and powder charging
    • Safety rupture disc and pressure safety valve
    • Flush bottom outlet, light and sight glass, handhole or manhole
    • Nozzles, manual or automated valves, fittings and control panel per requirement

    Other materials

    The same vessel design is available in carbon steel, austenitic and duplex stainless steel, titanium, zirconium, nickel alloys including Monel 400 and Incoloy 600, and PTFE, PPL or PFA linings.

    Specify for your project

    • Nominal volume, 1000 L to 100 m3
    • Working pressure and temperature, up to 200 bar and 300 °C
    • Alloy: Hastelloy C276 or Hastelloy B-2, solid or clad
    • Process medium, including oxidizing or reducing acids and chlorides
    • Seal type, impeller and heating method

    The LEHC276AISPR listing shows a 1000 L reference model.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

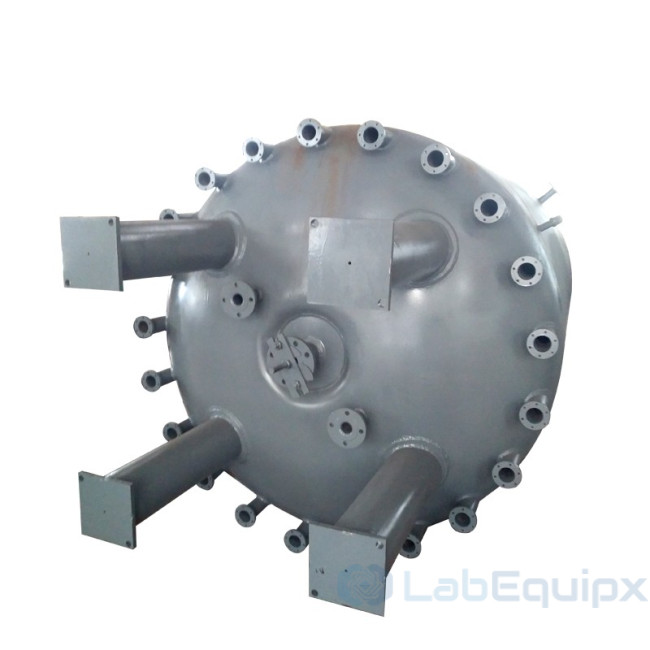

    • Hastelloy C276 alloy Industrial Scale Pressure Reactor

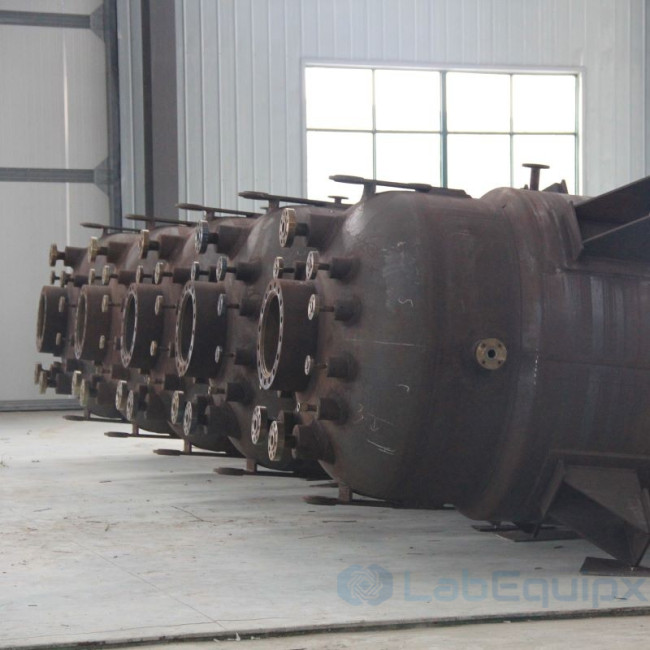

    • Hastelloy C276 alloy Industrial Scale Pressure Reactor

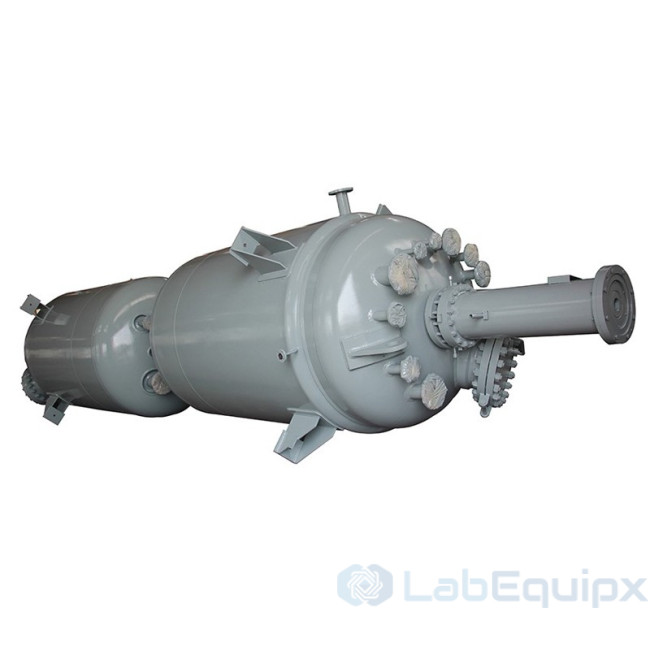

    • Hastelloy C276 alloy Industrial Scale Pressure Reactor

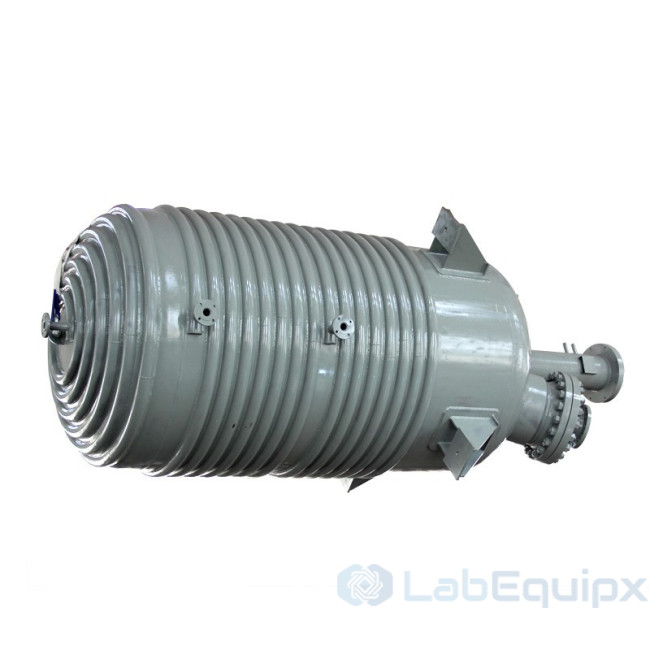

    • Hastelloy C276 alloy Industrial Scale Pressure Reactor

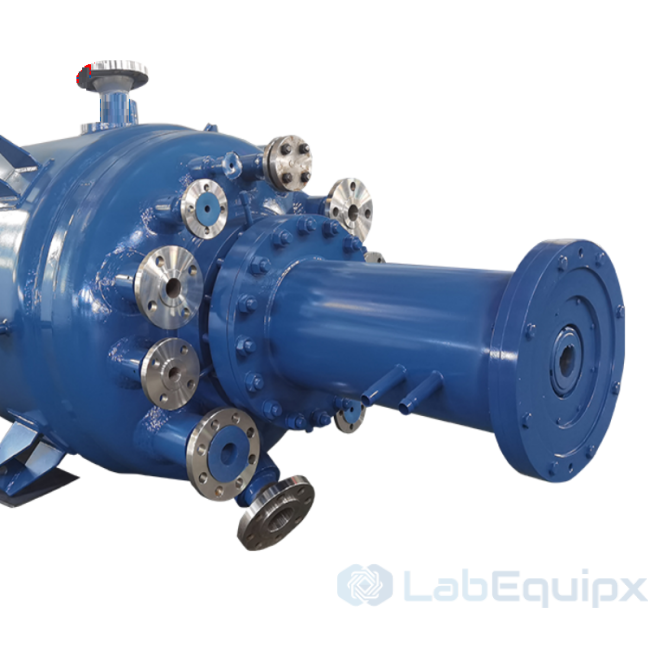

    • Hastelloy C276 alloy Industrial Scale Pressure Reactor
    • Hastelloy C276 alloy Industrial Scale Pressure Reactor
  • Features

    • Large scale production- maximum volume reach to 100m3
    • Max pressure: 200 bar; Max temperature up to 300 ℃
    • Material: Hastelloy or cladding plate available
    • Cladding plates use a base material for strength and a clad material for corrosion resistance.
    • Low to high torque magnetic couplings: static seal.
    • Acuurate Impeller selected for the mixing mission and requires.
    • Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
    • Nozzles, manual / automated valves, fittings, control panel & accessories offered based on requirement.
    • Lugs or floor stand leg support.

    Technical Specifications

    Model LEHC276AISPR 1000
    Nominal volume
    1000L-100m3
    Material

    Hastelloy B-2

    Hastelloy C276

    Working pressure -1~200 bar
    Working temp. 0~300℃
    Motor power

    5.5kW-125kW

    Stirring speed 200~400rpm
    Sealing method

    Magnetic seal

    Mechanical seal

    Stirrer

    Porpeller;Paddle type;

    Anchor type; Turbine type

    Other as designed

    Head type

    Elliptical type

    Conical type

    Hemispherical type

    Flat type

    Heating type

    Oil electric heating

    Oil heating

    Steam heating

    Material Available

    Carbon steel

    Q235R, Q345R, 15CrMoR,

    16MnDR(Low temp. steel)

    Austenitic stainless steel

    304/304L, 316/316L, 310S, 321

    Duplex stainless steel

    S32205, S32507

    Titanium alloy

    Gr1, Gr2, Gr3, Gr9,

    TA1, TA2, TA3, TA9, TC10

    Zirconium alloy

    Zr-1, Zr-3, Zr4

    Nickel alloy

    N6,Monel400, HastelloyC276,

    HastelloyB-2; Incoloy600

    Nonmetallic Materials

    PTFE, PPL, PFA

    Note: Cladding plates use a base material for strength and a clad material for corrosion resistance.

    • Base Thickness:6-200mm;
    • Clad Thickness: 3-10mm.

    Product Details

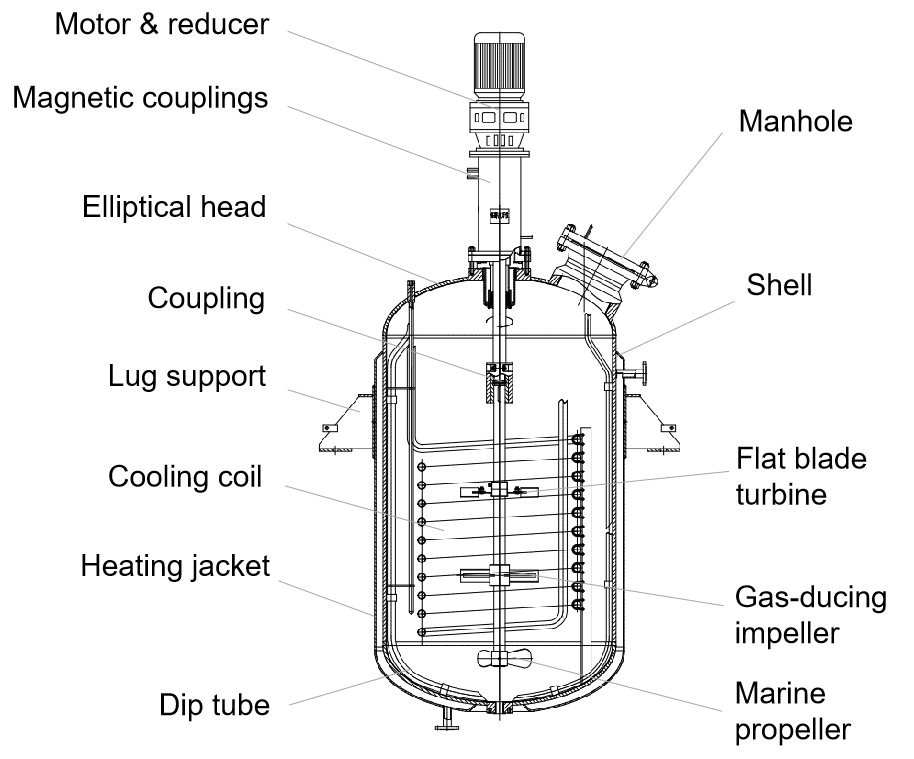

    Structure Drawings
