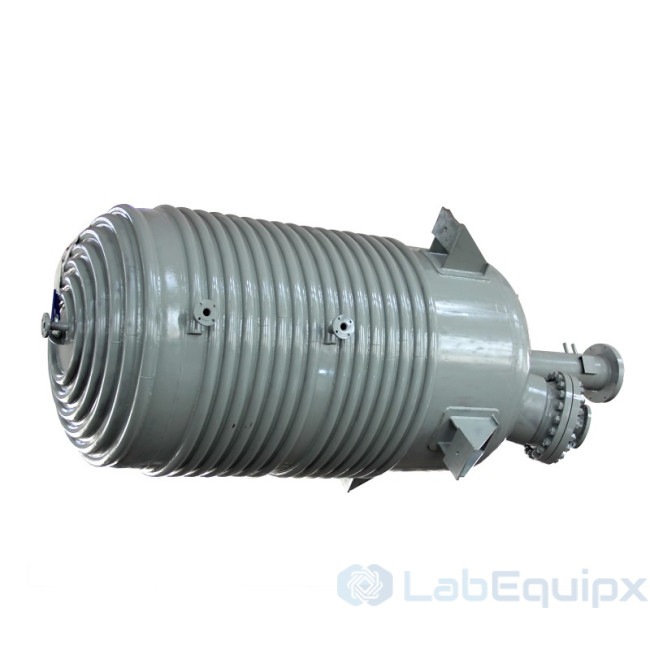

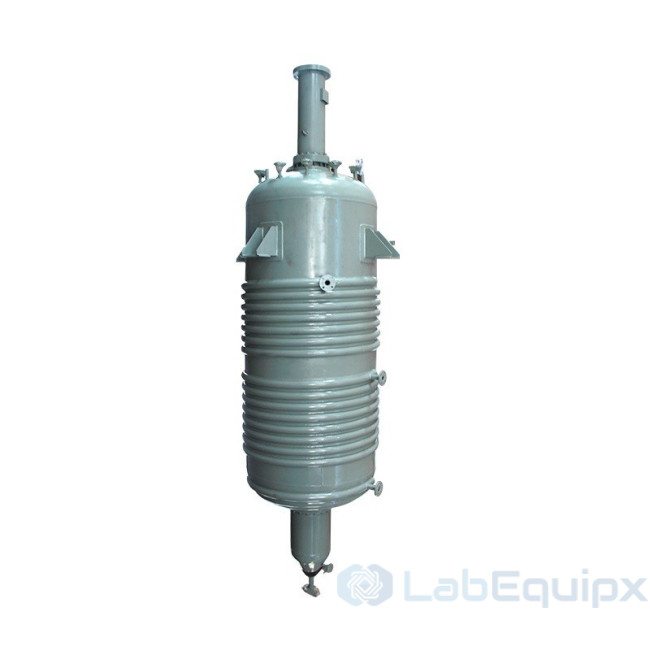

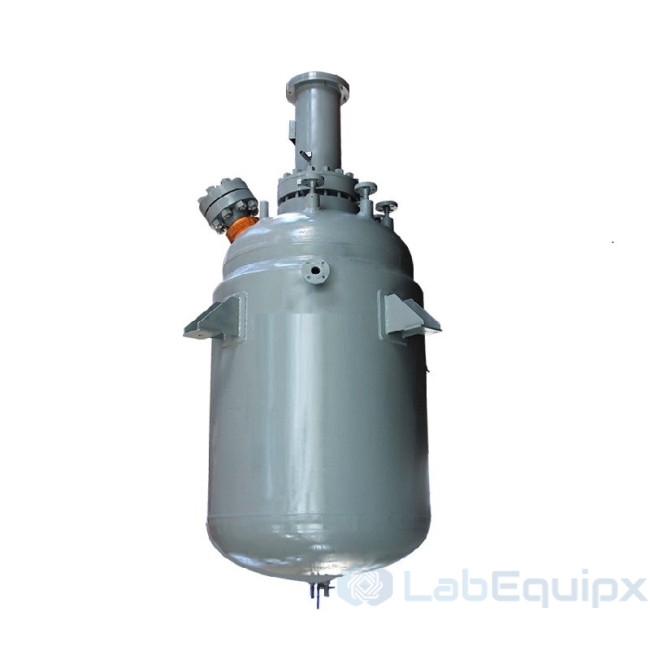

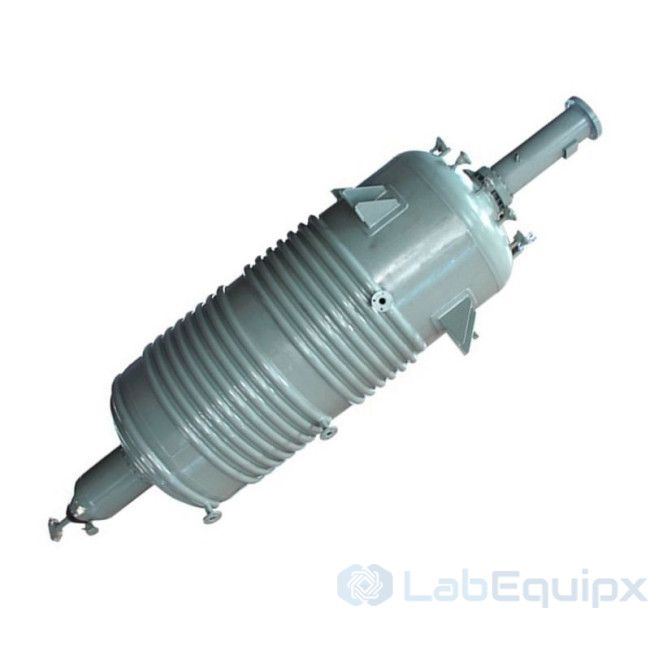

Duplex Steel Industrial High Pressure Reactor

  • The LEDSIHPR is a production-scale stirred pressure reactor with a duplex stainless steel vessel, built for chloride-bearing process fluids and ammonium carbamate solutions. Nominal volume runs from 1000 liters to 100 m3. In chloride service, typical austenitic stainless steels are prone to stress corrosion cracking and corrosion fatigue; duplex grades resist these mechanisms and add higher strength than austenitic grades.

    Design

    The vessel is rated for a working pressure of -1 to 200 bar and a working temperature of 0 to 300 °C. The agitator motor ranges from 5.5 kW to 125 kW, with a stirring speed of 200 to 400 rpm. The shaft is sealed either by a magnetic coupling, which acts as a static seal with no packed gland, or by a mechanical seal. The impeller is chosen for the mixing duty: propeller, paddle, anchor or turbine, or a custom design.

    Heads are elliptical, conical, hemispherical or flat. Heating is by oil electric heating, oil heating or steam heating. The vessel stands on lugs or on floor legs. When the wall thickness exceeds 16 mm, clad plate can be used: a base plate of 6 to 200 mm carries the pressure load and a clad layer of 3 to 10 mm resists corrosion.

    Typical applications

    • Chloride-containing solutions
    • Ammonium carbamate solutions, including oxygen-free carbamate service
    • Nitric acid and acidic ammonium nitrate solutions

    Options

    Internal cooling coil, vent port, liquid or powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light and sight glass, handhole or manhole. Nozzles, manual or automated valves, fittings and a control panel are added per requirement. The same vessel range is also built in carbon steel, 304/304L and 316/316L stainless steel, titanium, zirconium and nickel alloys including Monel 400 and Hastelloy C276, or with PTFE and PFA linings.

    Specify for your project

    • Nominal volume, 1000 liters to 100 m3
    • Working pressure up to 200 bar and working temperature up to 300 °C
    • Duplex grade (for example S32205) and whether clad plate is used
    • Seal type, magnetic coupling or mechanical seal, and motor power from 5.5 kW to 125 kW
    • Impeller type, head type and heating method

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Duplex Steel Industrial High Pressure Reactor
    • Duplex Steel Industrial High Pressure Reactor
    • Duplex Steel Industrial High Pressure Reactor
    • Duplex Steel Industrial High Pressure Reactor
  • Features

    • Large scale production- maximum volume reach to 100m3
    • Max pressure: 200 bar; Max temperature up to 300 ℃
    • Material: Duplex steel
    • Chloride-containing solutions where the typical austenitic stainless steels are susceptible to stress corrosion cracking and corrosion fatigue.
    • When cladding plates be considered, including base material for strength and clad material for anti-corrosion.
    • Low to high torque magnetic couplings: static seal.
    • Acuurate Impeller selected for the mixing mission and requires.
    • Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
    • Nozzles, manual / automated valves, fittings, control panel & accessories offered based on requirement.
    • Lugs or floor stand leg support.

    Technical Requirements

    Model LEDSIHPR 1000L
    Norminal volume
    1000liters-100m3
    Material

    Duplex steel

    Working pressure -1~200 bar
    Working temp. 0~300℃
    Motor power

    5.5kW-125kW

    Stirring speed 200~400rpm
    Sealing method

    Magnetic seal

    Mechanical seal

    Stirrer

    Porpeller;Paddle type;

    Anchor type;Turbine type

    Other as designed

    Head type

    Elliptical type

    Conical type

    Hemispherical type

    Flat type

    Heating type

    Oil electric heating

    Oil heating

    Steam heating

    Material Includes

    Carbon steel

    Q235R, Q345R, 15CrMoR,

    16MnDR(Low temp. steel)

    Austenitic stainless steel

    304/304L, 316/316L, 310S, 321

    Duplex stainless steel

    S32205

    Titanium alloy

    Gr1, Gr2, Gr3, Gr9,

    TA1, TA2, TA3, TA9, TC10

    Zirconium alloy

    Zr-1, Zr-3, Zr4

    Nickel alloy

    N6,Monel400, HastelloyC276,

    HastelloyB-2; Incoloy600

    Nonmetallic Materials

    PTFE, PPL, PFA

    Note: If the vessel thickness exceeds 16mm, cladding plates could be considered, base material used for strength and clad material used for anti-corrosion function.

    • Base Thickness:6-200mm;
    • Clad Thickness: 3-10mm.

    Product Details

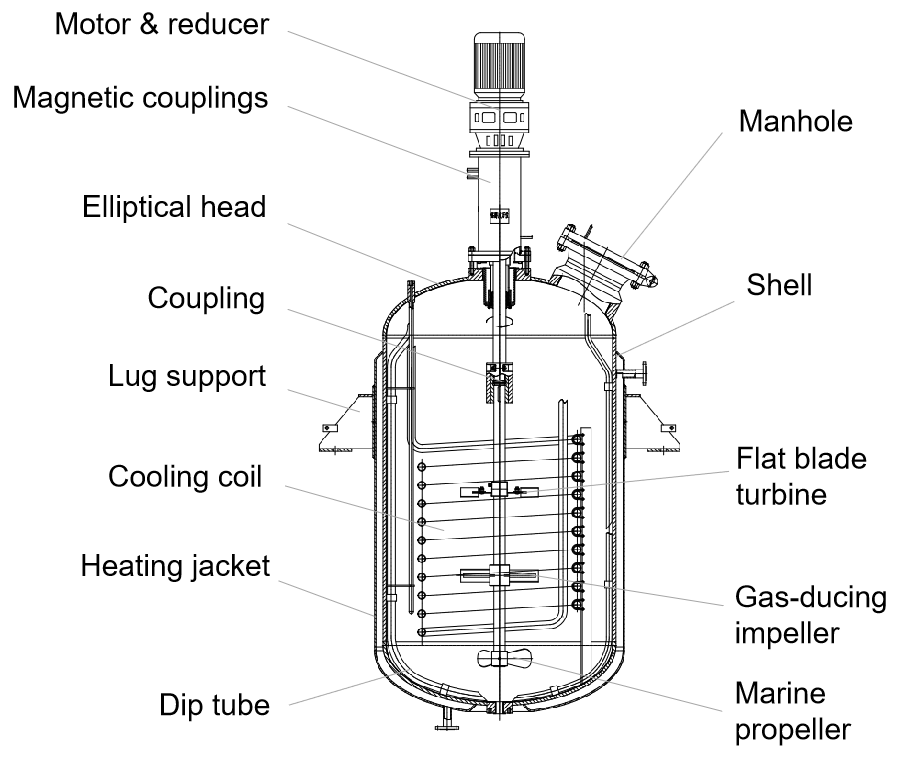

    Structure Drawings

    Duplex Steel Industrial High Pressure Reactor
