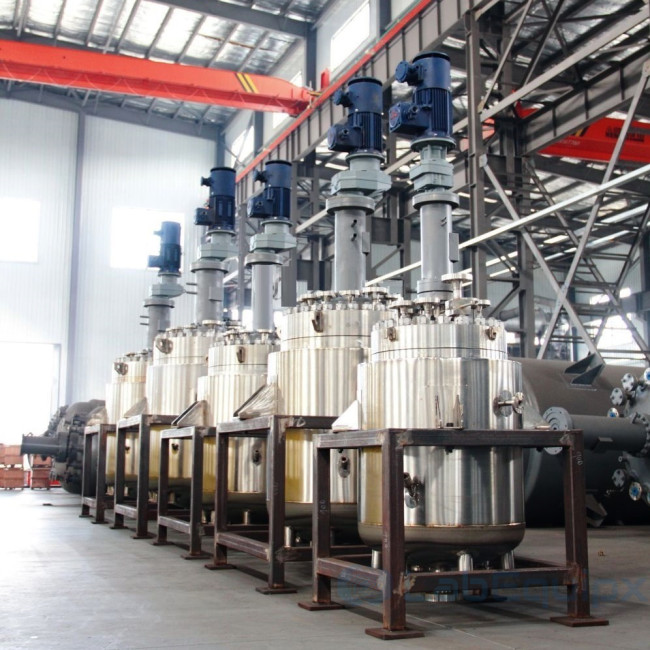

Catalyst Hydrogenation Reactor

The Catalyst Hydrogenation Reactor LECHR is a stirred pressure vessel for three-phase slurry hydrogenation, where a solid catalyst is suspended in the liquid phase and hydrogen is present as gas bubbles. With several phase boundaries in the vessel, hydrogen dispersion governs mass transfer, and the mixing system sets the gas-liquid mass transfer coefficient. The standard family covers 100, 200, 500 and 1000 L at a design pressure of 150 bar and design temperatures up to 300 °C.

How it works

A hollow shaft with a gas induction impeller recirculates unused hydrogen from the headspace back into the liquid. This gives a fine dispersion of hydrogen, a large gas-liquid interfacial area, higher gas hold-up and mass transfer, and uniform suspension of the catalyst. The shaft is driven through a zero-leakage magnetic coupling: fully sealed, with low energy cost and long bearing life, available from full vacuum to 200 bar, with a cooling jacket for high temperature service. The motor is explosion-proof, DIICT4, from 7.5 to 90 kW, for stirring speeds of 0 to 350 rpm.

Heating is by oil jacket of conventional, limpet coil or half-pipe type; full, half-pipe and dimpled jackets are offered. Cooling is by internal spiral coils or a cooling tube condenser. The vessel is sealed with a spiral wound metallic gasket. Head type can be semi-elliptical, dished, hemispherical or flat.

What is included

• Pressure vessel, 100 to 1000 L, 150 bar, up to 300 °C, with oil heating jacket
• Hollow shaft gas induction impeller on a magnetic drive coupling
• Explosion-proof motor, 7.5 to 90 kW
• Internal fittings: thermowell and sensor, dip tube, baffles, cooling coils, gas distributor

Specify for your project

• Total volume: 100, 200, 500 or 1000 L; other sizes in the family from 100 mL to 50 m³
• Vessel material: SS304 or SS316 standard; solid or clad SS2205, SS321, C-276, nickel, titanium or zirconium
• Jacket type (conventional, limpet coil, half-pipe, dimpled) and head type
• Internal fittings: tube type or spiral coils, dip tube, temperature tube, spargers, baffles
• Explosive clad steel for corrosive high pressure service
• Motor power and stirring speed

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

Gas Induction Tech.

• Higher gas Hold-up & mass transfer
• Fine dispersion of the hydrogen
• Large Gas-Liquid interfacial area
• Recirculation of the unused gas
• Uniform suspension of solid components (e.g., Catalyst)

Magnetic Couplings Driver

• 100% Sealing. Zero leakage. Low energy cost.
• Various model for volume: 100ml~50m3
• Long using life of bearings, less maintenance times
• Full vaccum/200 bar available;
• Cooling jacket set for high temperature application.

Internal Fittings Optional

• Internal heating/Cooling coils: Tube type or spiral coils;
• Dip tube & temperature measure tube;
• Shaft, Couplings & combined stirring paddle impeller;
• Gas distributor. spargers & baffles

Optional for Pressure Vessel

• Full Jacket/ Half-pipe jackets/ Dimpled jackets；
• Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
• Explosive Clad Steel for anti-corrosion high pressure conditions.

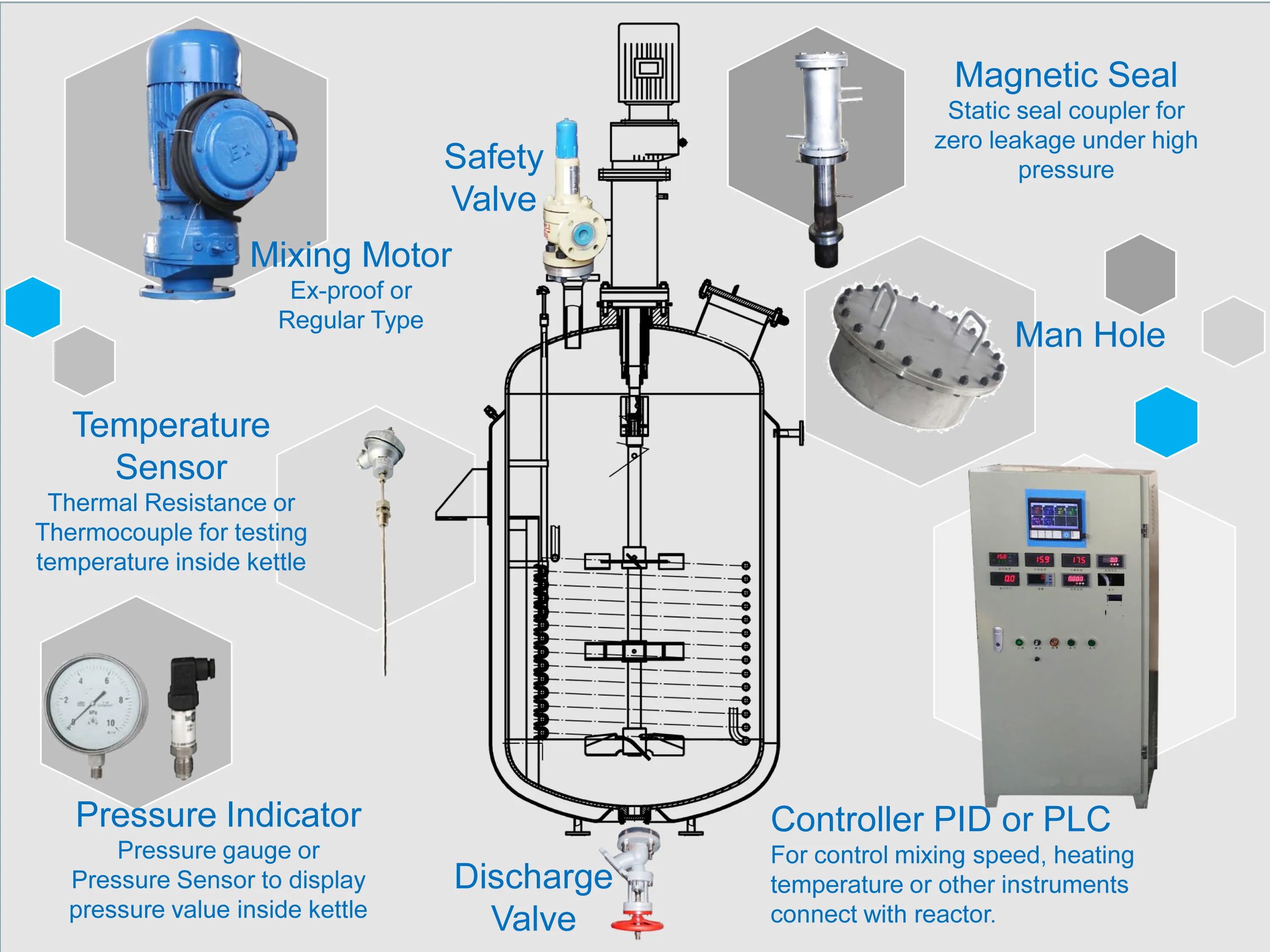

Structure destails

Specifications
