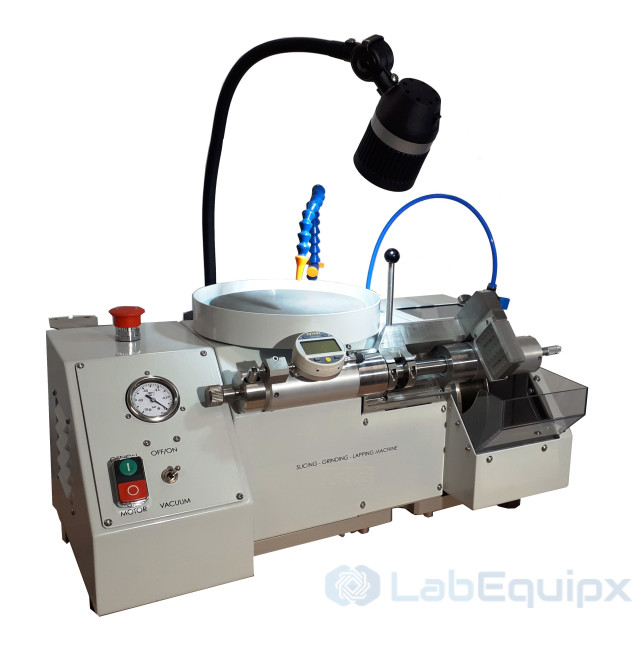

Slicing, Grinding and Lapping Machine

Function. Slices, grinds and laps specimens in one instrument using a steel lapping disc, diamond cutting blade and diamond grinding wheel.

Controlled. Cut, grind and lap thickness; feed.

Measured. Specimen/section thickness.

Sample size, pressure ratings, wetted materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Specimen size: two specimens of 30x45mm or 1”x1.5” one specimen of 60x45 mm or 1”x 3” (other upon request)
• Slicing Blade: Ø200mm
• Grinding wheel: straight cup-wheel, Ø200.
• Grit 46 Lapping disc diameter: 200 mm
• Lapping disc speed: 150 rpm
• Lubricants: water
• Motor speed: 3,000 rpm
• Weight: 50 kg
• Dimensions: 640x340x350 mm
• Power supply: 220 VAC, 50/60 Hz

Benefits

• Three functions in one instrument
• Compact, simple and robust
• Fast and very accurate slicing, grinding and lapping operations
