Bonding Jigs

  • Function. Maintains a uniform thickness of bonding material between the rock specimen and its glass slide during mounting.

    Controlled. Bond-layer thickness.

    Sample size, pressure ratings, wetted materials, tooling and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

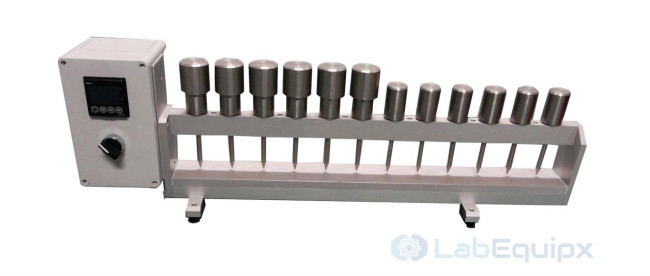

    Model: LEBJ12

    • Bonding Jigs
  • Key data

    • The heater covers 20 to 130°C.
    • The jig measures 217 x 124 x 708 mm and weighs 10 kg.
    • It needs 220 VAC at 50/60 Hz.

    Advantages

    • It has a built-in heater.
    • No springs are used.
    • Each position has its own weight.
    • Up to 12 samples can be prepared in a row.
