CT-PVA-PGS

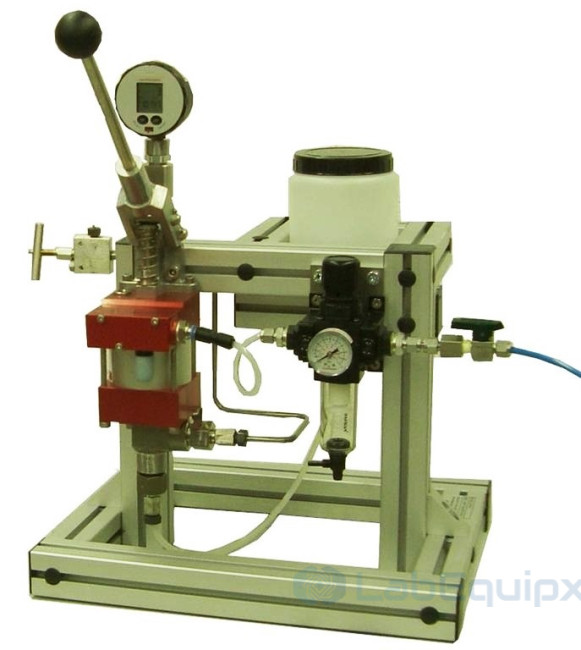

Pressure Generator System
The LEPGS supplies hydraulic pressure to move a fluid sample out of its cylinder and into a PVT cell. Transfer takes place at the required pressure without using mercury. The system regulates the outlet pressure and measures both the delivered pressure and the displaced volume.
Project requirements determine the volume capacity, pressure and temperature ratings, materials exposed to the fluid and the instrumentation fitted to the unit.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Hydraulic pressure generation
- Discharge pressure has an upper limit of 10,000 psi.
- The air supply has an upper limit of 10 bar (145 psi); its lower limit is 30 psi.
- Components exposed to the working fluid use stainless steel.
