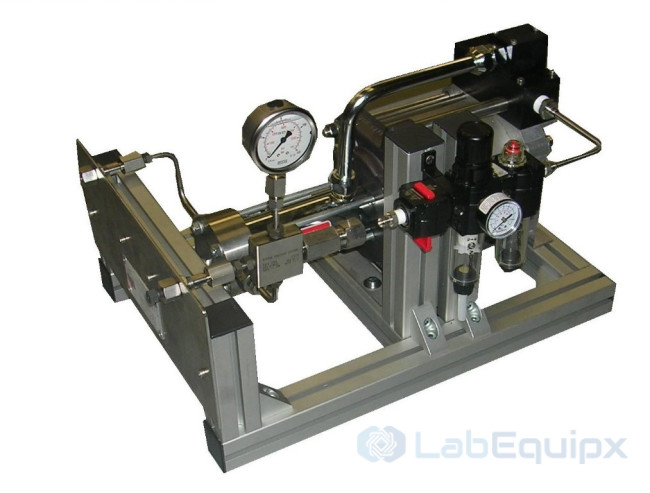

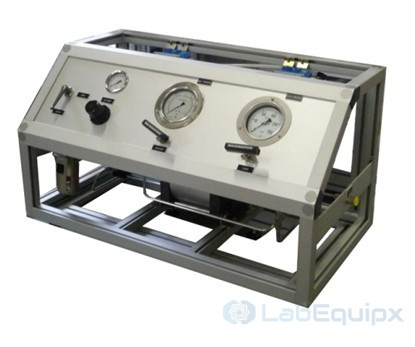

Gas Booster

Function. Compresses low-pressure field gas samples and transfers them into high-pressure cylinders.

Controlled. Drive and output pressure.

Measured. Output pressure.

Volume, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

LEGB1000 Model features:

• Type : Double stage - double effect
• Admission pressure : 15 bar to 200bar (about 225 to 2,900psi)
• Max outlet pressure : 1,000 bar (15,000 psi)
• Pressure increase ratio : 1:150
• Working temperature : ambient 25° - 50 °C
• Air drive : 0,5 to 10 bar (7 to 145psi)
• Process fluids : Dry HC gas

LEGB700 Model features:

• Type : Single stage - single effect
• Admission pressure : 15 bar to 200bar (about 225 to 2,900psi)
• Max outlet pressure : 700 bar (10,000 psi)
• Pressure increase ratio : 1:75
• Working temperature : ambient 25° - 50 °C
• Air drive : 0,5 to 10 bar (7 to 145psi)
• Process fluids : Dry HC gas
