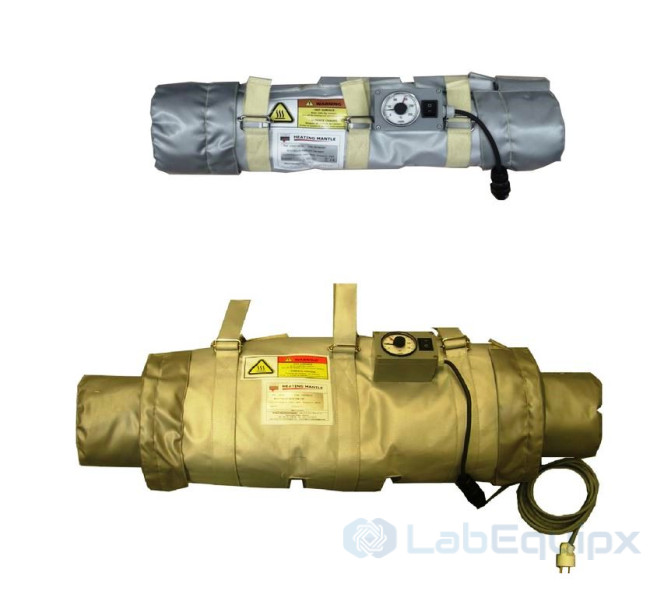

Cylinder Heating Mantle

Function. Heats and maintains a constant temperature in a sample cylinder.

Controlled. Cylinder temperature.

Measured. Cylinder temperature.

Volume, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Type 1: Heating manle for CYLIGHT piston cylinder

• Working temperature: up to 200°C
• Temperature accuracy: ± 5°C
• Diameter range: 60 mm to 80 mm
• Length range: 430 mm
• Construction: Kevlar, Silicon aramid
• Power: 220 VAC, 50 Hz

Type 2: Heating manle for HPP piston cylinder

• Working temperature: up to 200°C
• Temperature accuracy: ± 5°C
• Diameter range: 80 mm to 100 mm
• Length range: 500 mm
• Construction: Kevlar, Silicon aramid
• Power: 220 VAC, 50 Hz

Type 3: Heating manle for gas cylinder

• Working temperature: up to 100°C
• Temperature accuracy: ± 5°C
• Diameter range: 200 mm to 250 mm
• Length range: up to 800 mm
• Construction: Kevlar, Silicon, fiber glass
• Power: 220 VAC, 50 Hz

Benefits

• Convenient
• Efficient
• Robust and reliable
• Low maintenance
