Wax Deposition Flow Loop (Stock-Tank Oil)
Send a request
CT-FA-WLA

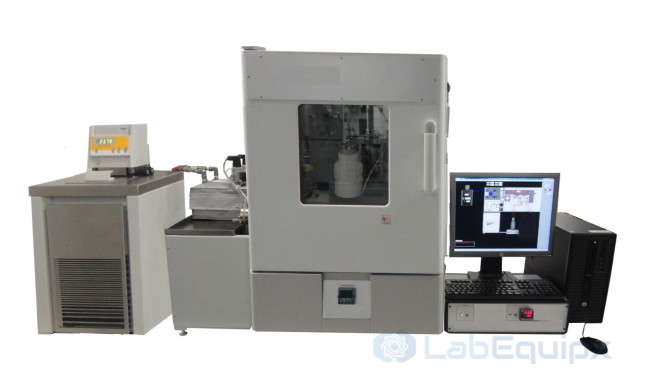

Wax Deposition Flow Loop (Stock-Tank Oil)
Function. Circulates a stock-tank oil sample in a loop while gradually reducing temperature to reach the wax appearance temperature (WAT) and study wax deposition.
Controlled. Flow rate and temperature (to WAT).
Measured. Wax appearance temperature and deposition.
Pressure and temperature ratings, wetted materials, cell/loop geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.
Model: LEWAXEVALA
Technical data
- The upper pressure rating is 100 psi.
- Temperatures can range between -20°C and +90°C.
- A 500 cc sample is used with a test coil whose diameter is 1/8 inch.
- The flow limit is 30 ml/min. Construction uses stainless steel.
- Electrical power is supplied at 220 VAC with a frequency of 50 Hz.
Operation and applications
- The controls allow straightforward test operation.
- Measurements provide accurate readings of temperature, pressure and flow.
