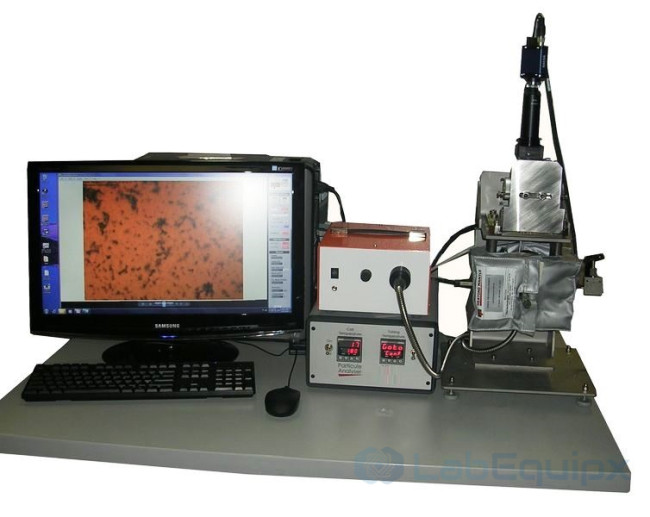

High-Pressure Microscope (Wax)
Function. Provides direct microscopic observation of wax and asphaltene precipitation onset under controlled high pressure and temperature.
Controlled. Sample pressure and temperature (reference up to 15,000 psi and 200 degC).
Measured. Visual precipitation onset and particle formation.
Pressure and temperature ratings, wetted materials, cell/loop geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.
Model: LEHPM
Technical data
- Pressure is adjustable from ambient conditions to 15,000 psi.
- Temperature extends from ambient conditions up to 200°C. Particles can be detected from 0.2 µm.
- Sapphire and stainless steel are the materials in contact with the sample.
- The microscope offers magnification up to x 5000.
Operation and applications
- Connection is possible to any PVT cell in the user laboratory.
- Viewing the sample allows the operator to distinguish the types of solids present.
- The first appearance and subsequent growth of organic precipitates can be watched directly at the test pressure and temperature.
- Interpretation tools are supplied with the instrument.
